Product Details:
|
| Name: | YT29A Rock Drilling | Machine Type: | Drilling Tools |
|---|---|---|---|
| Model: | YT 24 /27/ 28/ 29A | Application: | Mining And Quarrying, Tunneling Construction |
| Weight: | 27kg | Advantage: | High Performance,competitive Advantage Products,High-efficiency |
| High Light: | H22 Drill Rod Rock Drilling Tools,Quarrying Rock Drilling Tools,YT29A pneumatic rock drills |
||

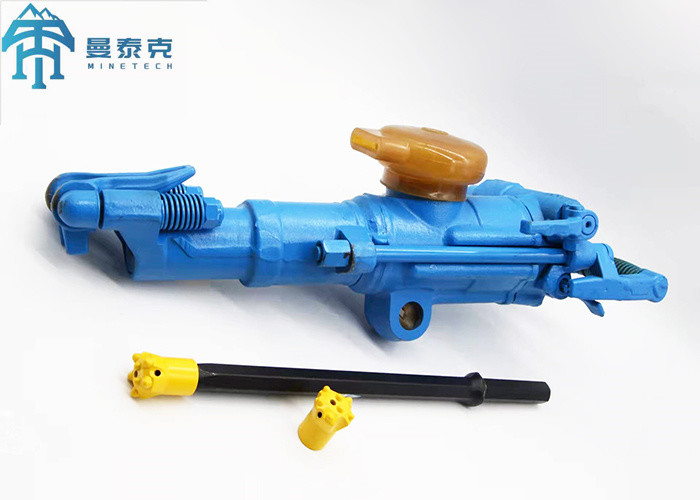

H22 Drill Rod Air Leg YT 29A Portable Pneumatic Rock Drills Rock Drilling Tools
Product Information:
1. YT series pneumatic rock drill for drilling in the hard rock horizontal and inclined direction hole, it can also be up drilling anchor hole, hole diameter is Φ 35 ~ 45 mm, and effective drilling depth of 5 meters. It may also working for roof bolting holes. The rock drill played an important role in mining, quarrying and tunneling projects.
2. Depending on the roadway cross-section size and operation conditions, the machine can be used FT160A gas legs, long FT160C type gas type, FT160B dispirited legs (metal mines can also be used FT170 gas leg), can also be installed in jumbo or drill the rack to dry and wet drilling.
Specifications:
| PRODUCT SPECIFICATION | ||
| The parameter name | Unit | The parameter value |
| Weight | kg | ≈28 |
| Length | mm | 661 |
| The cylinder diameter | mm | 82 |
| Piston stroke | mm | 60 |
| Gas consumption | L/s | ≤65 |
| Drilling and frequency | Hz | ≥37 |
| Impact energy | J | ≥70 |
| borehole speed | mm/min | ≥475 |
| The borehole diameter | mm | Φ34-42 |
| Perforating depth | m | 5 |
| Shank | mm | 22×108±1 |
Features:
Easy in handle and maintain.
Low noise
High efficiency, small vibration.
Reliable performance.
Long service life.
