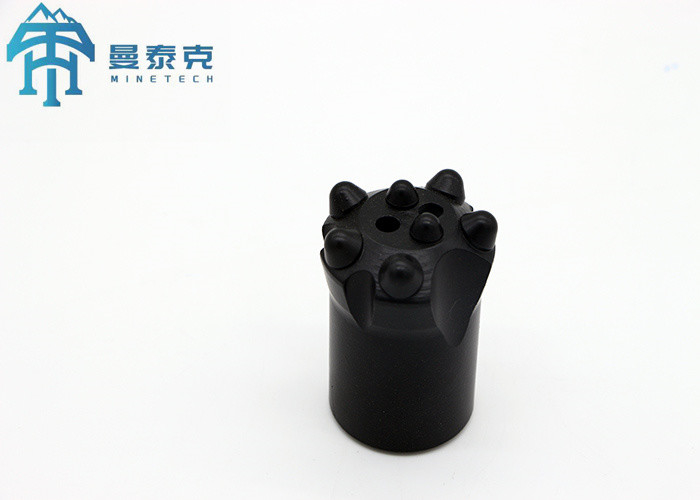

32mm - 41mm Tapered Drill Button Bit 3x8 Gauge Carbide Mining Bits

32mm - 41mm Tapered Drill Button Bit 3x8 Gauge Carbide Mining Bits
32mm - 41mm Tapered Drill Button Bit 3x8 Gauge Carbide Mining Bits

Large Image :  32mm - 41mm Tapered Drill Button Bit 3x8 Gauge Carbide Mining Bits

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO9001
Model Number: button bit
Payment & Shipping Terms:
Minimum Order Quantity: 50 Piece
Price: Negotiable
Packaging Details: Plastic box or Wooden Box
Delivery Time: 20-30 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 20000 pieces per month

32mm - 41mm Tapered Drill Button Bit 3x8 Gauge Carbide Mining Bits

Description
Name: 32mm 34mm 36mm 38mm 41mm Taper Button Bit For Mining Blasting Rock Drill Rock Drilling Bit Diameter: 32mm 34mm 36mm 38mm 41mm
Color: Blue, Black,yellow And So On. Usage: Mining,construction And So On
Weight: 0.3kg Materiales: Tungsten Carbide
Type: Tapered Drill Bits Packing: Plastic Box O Wooden Box
High Light:

41mm tapered drill button bit

,

mining tapered drill button bit

,

3x8 carbide mining bits

32mm 34mm 36mm 38mm 41mm taper button bit for mining blasting rock drill Rock Drilling Bit





Product Information:

Our tapered button bit was from high quality cemented carbide and produced with heat treatment technology,which connected with tapered drill rod well for air leg or hand-held rock drill machine for drilling holes in gold and coal mining,marble and granite quarries,stone project, tunnel, water conservancy,etc.



Specifications:



For 22 mm (7/8") rod. 11° taper. Short Skirt.

Diameter

Buttons

Flushing hole

Length

Weight

mm

inch

Gauge

Front

Side

Front

mm

Kg

32

1 1/4

3x8

2x7

1

1

50

0.22

32

1 1/4

4x7

2x7

1

1

50

0.29

32

1 1/4

5x7

2x7

1

1

50

0.35

32

1 1/4

6x7

2x7

1

1

50

0.35

32

1 1/4

6x7

2x7

1

2

50

0.35

34

1 11/32

3x8

2x7

1

1

50

0.39

34

1 11/32

4x8

2x7

1

2

50

0.39

34

1 11/32

5x7

2x7

1

1

50

0.4

35

1 3/8

6x7

2x7

1

2

50

0.41

36

1 27/64

3x9

1x8

1

1

50

0.42

36

1 27/64

3x9

2x7

1

1

50

0.42

36

1 27/64

4x8

2x7

1

1

50

0.42

36

1 27/64

4x8

2x7

1

2

50

0.45

36

1 27/64

5x8

2x7

1

1

50

0.45

36

1 27/64

5x8

2x7

1

2

50

0.45

38

1 1/2

3x9

1x9

1

1

50

0.45

38

1 1/2

3x9

2x7

1

1

50

0.45

38

1 1/2

5x9

2x7

1

1

50

0.45

38

1 1/2

5x9

2x7

1

2

50

0.45

40

1 37/64

3x9

1x9

1

1

50

0.48

40

1 37/64

3x9

2x8

1

1

50

0.48

40

1 37/64

5x9

2x8

1

1

50

0.48

40

1 37/64

5x9

2x8

1

2

50

0.48

41

1 5/8

5x9

2x8

1

2

50

0.48



Company Profile:

Hebei Minetech Machinery Technology Co, Ltd is an joint venture enterprise with Europe Partner, which is located in Shijiazhuang City, Hebei Province, China. Our company is specialized in manufacturing and exporting of mining machinery, such as hydraulic and pneumatic drill machine, roof bolter and drilling consumption, like drill bit and drill rod with own factory in Shijiazhuang City.



With our rich expenience for over a decade and with professional engineers andsales team, we focus on providing complete solutions for mining machinery.


Target markets is gradually shifted from domestic market to international market, products are exported to more than thirty countries and regions, including Southeast Asia, the United States, Germany, Britain, South Africa, Poland,Russia, Middle Asia, South America and so on, and established a good brand and reputation international market.
