Product Details:
|
| Product Name: | Integrall Drill Rod | Head Diameter: | 38mm |
|---|---|---|---|
| Rod Diameter: | 22mm | Shank Size: | H22 X 108 Mm |
| Color: | Customized | Shank Type: | Hex 19mm X 108mm, Hex 22 X 108mm, Hex 25mm X 159mm |
| Length Range: | From 400mm To 6000mm | Processing Type: | Forging |
| Material: | Carbon Steel,Carbide | Usage: | Small Hole Drilling,underground Mining,coal Mining And Geological Drilling,Rock Drilling |
| Highlight: | 108mm Integral Drill Rod,H22 x 108mm Integral Drill Rod |
||
Diameter 38mm Hexagonal Drill Rod H22 x 108mm For Rock Drilling Integral Drill Rod
Product information:

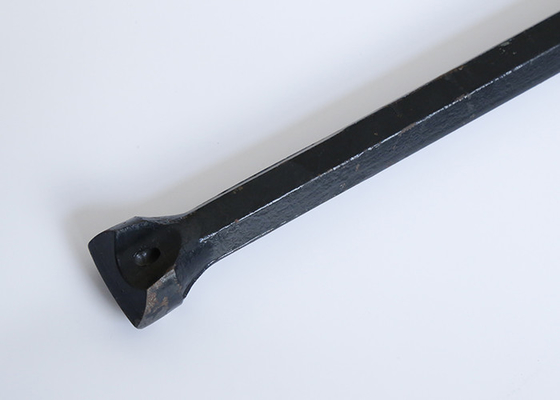

- Integrall rod is combined bit, rod and shank into a single unit. The head bit of the integral rod has chisel type and cross type.
Specification:
We can produce as your request of carbide size, different length of drill rods
|
Head bit diameter |
26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm |
|
Length range |
400mm - 7000mm |
|
Shank size |
Hex 22 x 108mm, Hex 19mm x 108mm, Hex 25mm x 159mm |
Application:
- Integral rod are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling
Advantage:
- Reduce engergy lossing at tapered rod and bit joint. Good transmission performance, can improve the speed and efficiency of drilling
Package:
- Wooden case
