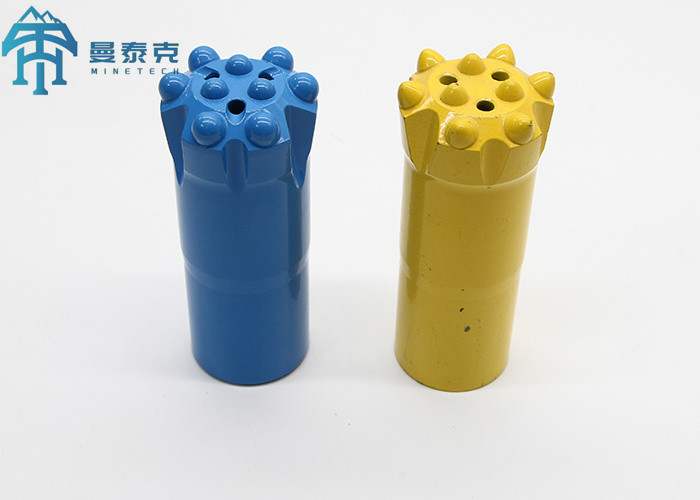

T38 64mm Button Bit for Rock Drilling Tools with Tungsten Carbides

T38 64mm Button Bit for Rock Drilling Tools with Tungsten Carbides
T38 64mm Button Bit for Rock Drilling Tools with Tungsten Carbides

Large Image :  T38 64mm Button Bit for Rock Drilling Tools with Tungsten Carbides

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO 9001
Model Number: T38 64mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 10 -15 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20000 pcs per month

T38 64mm Button Bit for Rock Drilling Tools with Tungsten Carbides

Description
Product Name: Thread Button Bit Diameter: 64mm
Buttons: 12 Buttons Weight: 2.2kgs
Color: Blue, Black,yellow Application: Construction Works, Energy, Mining And Tunneling
Material: Carbon Steel Package: Plastic Box O Wooden Box
Applicable Industries: Energy & Mining Thread: T38
Highlight:

64mm rock drilling tools

,

t38 rock drilling tools

,

construction works button bits rock drilling

T38 64mm Button Bit for Rock Drilling Tools with Tungsten Carbides





Description:

Thread button bits are made by high quality alloy steel bar and tungsten carbides. Under the process of heat treatment.

Minetech’s drilling tools are tested in various working conditions. What’s more, Minetech can supply customized thread button bits upon receiving of different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.



A comprehensive range of various button bits shown as below:



Thread Type

dia

tip size(mm)

flushing holes

weight (kg)

mm

front

gauge

front

side

R32

45

3*8

6*9

3

0

1.1

64

3*10,1*10

6*10

3

0

2.2

76

4*11,1*11

8*11

4

1

3.5

T38

64

3*11

6*12

3

0

1.8

76

4*11

8*11

2

0

2.4

89

4*13

8*13

2

0

3.3

T45

70

4*11

8*11

2

0

2.4

76

4*11

8*11

2

0

2.6

89

4*13

8*13

2

0

4.6

102

5*14

8*14

2

0

5

T51

89

4*13

8*13

2

0

5.3

102

4*14

8*14

2

0

7.3

115

6*14

8*14

2

0

9.8

127

8*14

8*16

2

1

12














































Applications:

The threaded drill bit are equipped with the hydraulic drilling jumbo and used for crush rock ,and it is widely used in tunnel
construction, large scale mine(open and underground )and large section tunnel advance in metal mine.





Company Profile:

Hebei Minetech Machinery Technology Co, Ltd is an joint venture enterprise with Europe Partner, which is located in Shijiazhuang City, Hebei Province, China. Our company is specialized in manufacturing and exporting of mining machinery, such as hydraulic and pneumatic drill machine, roof bolter and drilling consumption, like drill bit and drill rod with own factory in Shijiazhuang City.



With our rich expenience for over a decade and with professional engineers andsales team, we focus on providing complete solutions for mining machinery.


Target markets is gradually shifted from domestic market to international market, products are exported to more than thirty countries and regions, including Southeast Asia, the United States, Germany, Britain, South Africa, Poland, Russia, Middle Asia, South America and so on, and established a good brand and reputation international market.
