Product Details:
|
| Product Name: | Integrall Drill Rod | Bit Diameter: | 1'11⁄32'' |
|---|---|---|---|
| Shank: | 7 ∕8" X 4¼" | Rod Diameter: | 7 ∕8" |
| Length: | 1'3¾" | Color: | Black |
| Processing Type: | Forging | Type: | Chisel Bit |
| Material: | Carbon Steel,Carbide | Usage: | Small Hole Drilling,underground Mining,coal Mining And Geological Drilling,Rock Drilling |
| Highlight: | chisel top integral drill rod,108mm shank integral drill rod,hex22 integral rod |
||

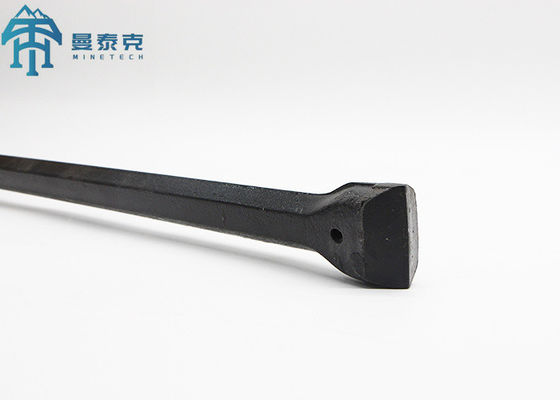

Cemented Carbide Chisel - Shaped Bit Head Integral Drill Rod
Product information of integral drill rod:
Integral drill rods are ideal in small hole drilling, all integral drill rods consist of hexagonal rods with integrated cemented carbide chisel-shaped bit heads.
Specification of integral drill rod:
|
Bit diameter |
34mm
|
|
Length |
400mm |
|
Weight |
1.7kgs |
|
Rod hex |
22mm |
|
Shank hex |
22x108mm |
Application of integral drill rod:
Integral rods are used by hand held rock drill in granite and marble quarries, underground mining, for small blasting hole drilling.
Advantage of integral drill rod:
Reduce engergy lossing at tapered rod and bit joint. Good transmission performance, can improve the speed and efficiency of drilling
Package of integral drill rod:
Bundle or wooden case
