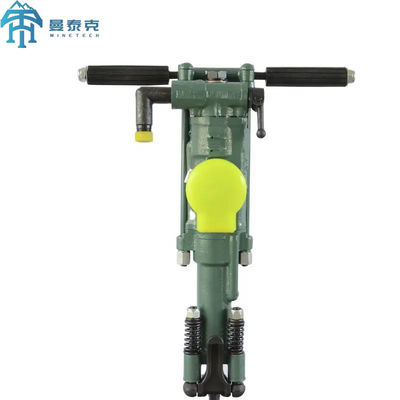

Y24 Model Hand Held Rock Drilling Machine with 24kgs Weight and 604mm Length for Small Hole Blasting

Y24 Model Hand Held Rock Drilling Machine with 24kgs Weight and 604mm Length for Small Hole Blasting
Y24 Model Hand Held Rock Drilling Machine with 24kgs Weight and 604mm Length for Small Hole Blasting
Y24 Model Hand Held Rock Drilling Machine with 24kgs Weight and 604mm Length for Small Hole Blasting Y24 Model Hand Held Rock Drilling Machine with 24kgs Weight and 604mm Length for Small Hole Blasting

Large Image :  Y24 Model Hand Held Rock Drilling Machine with 24kgs Weight and 604mm Length for Small Hole Blasting

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO 9001
Model Number: Y24
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $3-$300
Packaging Details: wooden case
Delivery Time: 10-15 days
Payment Terms: Western Union,T/T,MoneyGram
Supply Ability: 1000 pieces per month
Contact Now

Y24 Model Hand Held Rock Drilling Machine with 24kgs Weight and 604mm Length for Small Hole Blasting

Description
Product Name: Y24 Hand Held Rock Drilling Model No: Y24
Power Type: Pneumatic Weight: 24kgs
Length: 604mm Drilling Depth: Max.5m
Drilling Diameter: 34-42mm Oil Lubricator: FY200B
Usage: Ore,mining Used,Rock Drilling Market: Global
Highlight:

small hole blasting rock drilling machine

,

hand held pneumatic rock drilling machine

,

y24 rock blasting machine

Small Hole Blasting Rock Drilling Machine Pneumatic Y24 Hand Held
Small Hole Blasting Pneumatic Y24 Hand Held Rock Drilling Machine
Description Of Y24 Hand Held Rock Drilling
Y24 hand held rock drilling machine is light and small type designed on the basis of less recoil in safety, without air leg. Other models are Y018, Y020, Y26, Y19A.
Application Of Y24 Hand Held Rock Drilling
Y24 hand held rock drilling machine is mainly used in mines, railway drilling and secondary blasting.
Specification Of Y24 Hand Held Rock Drilling
Specification Value
Weight (kg) 24
Length (mm) 604
Cylinder Diameter (mm) 70
Air Hose Inner Diameter (mm) 19
Piston Stroke (mm) 70
Shank (hex. xL) (mm) 22x108
Advantage Of Y24 Hand Held Rock Drilling
  • Easy drilling
  • Low noise
  • Handiness
Y24 Model Hand Held Rock Drilling Machine with 24kgs Weight and 604mm Length for Small Hole Blasting 0
Y24 Model Hand Held Rock Drilling Machine with 24kgs Weight and 604mm Length for Small Hole Blasting 1
Y24 Model Hand Held Rock Drilling Machine with 24kgs Weight and 604mm Length for Small Hole Blasting 2
Y24 Model Hand Held Rock Drilling Machine with 24kgs Weight and 604mm Length for Small Hole Blasting 3
