Product Details:
|
| Name: | Thread Button Bit | Machine Type: | Drilling Tool |
|---|---|---|---|
| Use: | Ore Mining,Quarry,blasting | Type: | Drill Bit,Carbide Bit,Rock Drilling Tools,Thread Button Bit |
| Diameter: | 76mm | Color: | Blue,Customized,yellow / Black / Red |
| Advantage: | High Performance,high-efficiency,Factory Price And High Quality,Direct Manufacturer | Application: | Rock Drilling,DTH Drill Bits And Roller Bits,Mining,grey Granite,Bench Drilling And Rock Drilling |
| Usage: | Mining Or Quarry Or Well Drilling,Rock Drilling,Hole Drilling | Weight: | 1.41kg 1.42kg 1.43kg 1.44kg |
| Thread: | T38 | Oem: | Yes |
| Highlight: | r32 thread button bit,hard alloy thread button bit,r32 threaded button bits |
||

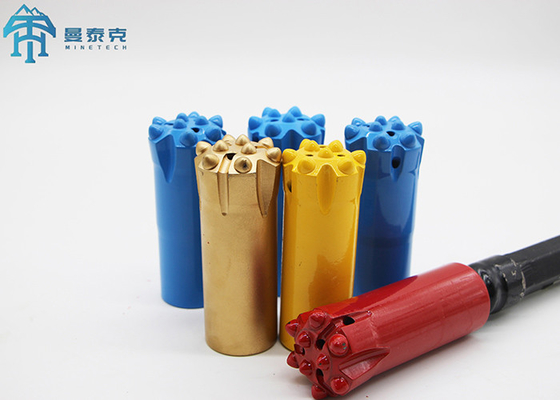

Our button bit is made with high quality of best quality alloy steel bar and tungsten carbides, through heat treatment so that it can withstand the toughest rock drilling demands, and transmit intensive impact energy into the rock with the least possible loss of energy.
Application:
Threaded Drill Bits cover regular, retrac and reaming types. With stronger button-fixing ability, longer service life, better wear-resistance and impact-resistance performance, they are widely used in tunneling, underground mining, open pit mining,anchoring and other large-scale construction projects.
|
Thread sizes |
R25, R28, SSR28, R32, SSR32, R35, SSR35, R38, T38, T45, T51, SST58, SST68, SGT60; |
|
Head diameters |
33mm ~ 152mm |
|
Face designs |
flat face, drop center, uni-face |
|
Color |
Bule or can be Customized |
|
Material |
Tungsten carbide and high strength alloy steel |
|
Processing |
proprietary heat treatment process |
|
Type |
R32 Button Bit Spherical Buttons |
