Product Details:
|
| Product Name: | ND55 DTH Hammer | Length: | 1214mm |
|---|---|---|---|
| Connect Thread: | API 2 3 / 8 " REG | Weight: | 76.5kg |
| Bit Shank: | DHD350R | Color: | Customized |
| Material: | Carbon Steel,Tungsten Carbide | Process: | CNC |
| Application: | Rock Drilling,quarry,mining | Advantage: | High Performance,High Wear Resistant,High-efficiency |
| Highlight: | DTH Hammer 1214mm,DHD350R Shank DTH Hammer,down the hole hammer 1214mm |
||

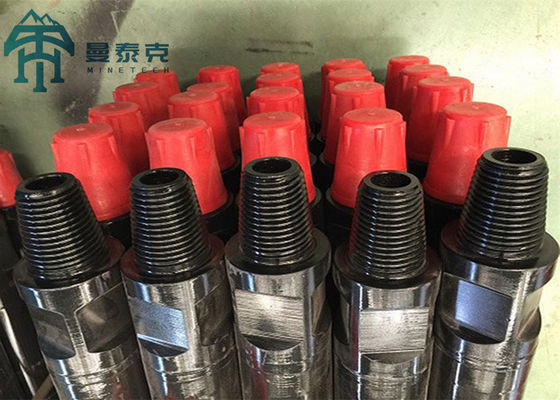

High Air Pressure ND55 DTH Hammer DHD350R Shank 1214mm Length
Description Of ND55 DTH Hammer:
A down-the-hole drill, usually called DTH by most professionals. Sometimes it is also called “RAB” in some markets, “RAB” is short for “Rotary Air Blasting”.
Specification Of ND55 DTH Hammer:
|
ND55 DTH Hammer |
|
|
Length(Without Bit) |
1214mm |
|
Weight(Without Bit) |
76.50 kg |
|
External Diameter |
125mm |
|
Bit Shank |
DHD350R/COP54 |
|
Hole Range |
135-155 mm |
|
Connect ion Thread |
API 2 3/8”Reg, API 3 1/2”Reg, API 2 7/8”Reg |
|
Working Pressure |
1.3- 2.3 Mpa |
|
Inpact Rate at 17 Bar |
25HZ |
|
Reccfurended Rotation Speed |
20-35 "min |
|
Air Consunption |
1.0Mpa : 9m3/min |
|
1.8Mpa: 15m3/min |
|
|
|
2.4Mpa: 23m3/min |
Usage Of ND55 DTH Hammer:
Mining
Mineral exploration
Advantage Of ND55 DTH Hammer:
High performance
Cost-effective
Long life
Package Of ND55 DTH Hammer:
Wooden case
