Product Details:
|

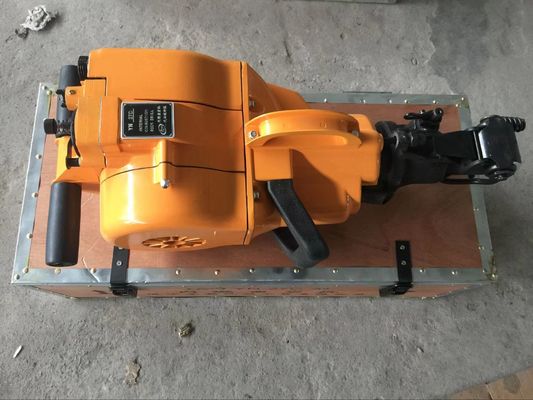

| Product Name: | Pneumatic Rock Drill | Model No: | YN27C |
|---|---|---|---|
| Drilling Hole Diameter: | 32MM | Drilling Depth: | 5m |
| Weight: | 39kgs | Size: | 760*360*270mm |
| Color: | Yellow Or Customized | Usage: | Ore,mining Used,Rock Drilling |

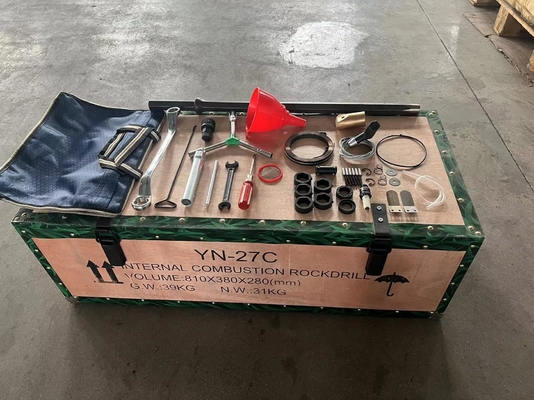

| Package: | Wooden Box | Power Type: | Pneumatic,Air Compressor And Electric |
| Highlight: | YN27C Rock Drilling Machine,YN27C Rock Drilling Equipment,Mining Quarry Pneumatic rock drill |
||
Description:
1.Engine:
The engine is a hand-operated,single cylinder and two stroke petrol engine with air cooling,reflux airconversion,no contact ignition,and no floating-type carburetor.It is composed of control parts,starter parts,oil tank parts,flywheel parts,crankshaft,connecting rod,crankshaft case parts,magneto parts,and piston parts and cylinder parts.
2.Air Compressor:
The engine piston and hammer piston are mounted separately in the upper and lower place of the cylinder.These two pistons move up and down synchronously.The hammer piston and the bigger bore of the cylinder forma compression chamber,which together with air inlet and outlet valves and ventilator valves,form the air compressor.It is composed of hammer piston parts and cylinder parts.
Specification:
|
Model
|
YN27C
|
|
Displacement of engine
|
185 cm³
|
|
Rotation speed of engine
|
2450r/min
|
|
Idle speed
|
200 r/min
|
|
End of drill rod size
|
22×108mm
|
|
Hole diameter range
|
26-46mm
|
|
Max drilling depth
|
Max depth
|
|
Fuel tank capacity
|
1.14L
|
|
Drilling speed
|
≥250mm/min
|
|
Oil consumption rate
|
0.12L/m
|
|
The mixture of gasoline and lubricating oil
|
9:1
|
|
Clearance of spark plug
|
0.5-0.7mm
|
|
Impact energy
|
≥20 J
|
|
Weight
|
27kg
|
|
Dimension
|
760*330*230mm
|
Advantage:
Low price, easy of use, improved efficiency and energy savings.
Target markets:

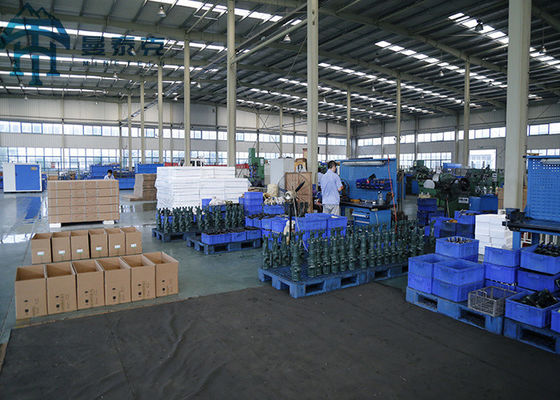

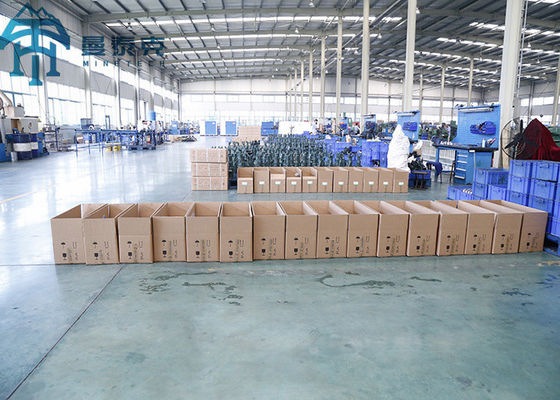

Hebei Minetech Machinery Technology Co, Ltd. is an joint venture enterprise with Europe Partner, which is located in Shijiazhuang City, Hebei Province,China. Our company is specialized in manufacturing and exporting of mining machinery, such as hydraulic and pneumatic drill machine, roof bolter and drilling consumption, like drill bit and drill rod with own factory in Shijiazhuang City.
With our rich expenience for over a decade and with professional engineers andsales team, we focus on providing complete solutions for mining machinery.
Target markets is gradually shifted from domestic market to international market, products are exported to more than thirty countries and regions, including Southeast Asia, the United States, Germany, Britain, South Africa, Poland, Russia, Middle Asia, South America and so on, and established a good brand and reputation international market.
