YT27 Pneumatic Rock Drill with 668 x 248 x 202mm Size Low Gas Consumption and Small Vibration for Efficient Drilling

Description
Product Name: Yt27 Pneumatic Small Hole Rock Drilling Machine: Model No: YT 27
Weight: 27kgs Size: 668 X 248 X 202mm
Drilling Depth: 5m Warranty: 1 Year
Color: Blue Usage: Ore,mining Used,Rock Drilling
Power Type: Pneumatic,Air Compressor And Electric Type: Rotary Drilling Rig
Highlight:

Forging Technology Rock Drilling Machine

,

Yt27 Rock Drilling Machine

,

Yt27 pneumatic drilling machine

YT27 Pneumatic Small Hole Rock Drilling Machine Forging Technology
Product Description

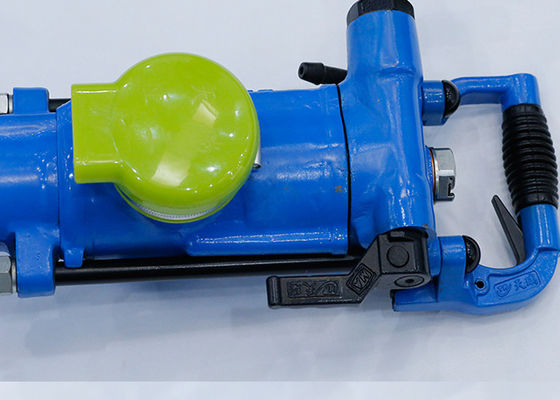

The YT27 Pneumatic Rock Drill is a high-efficiency drilling machine designed for rock excavation and blasting hole drilling operations. This robust tool is essential for mining, railway construction, traffic infrastructure, and water conservancy projects.

Applications

The YT series pneumatic rock drill is engineered for drilling horizontal and inclined holes in hard rock formations. It can also perform upward drilling for anchor holes with diameters ranging from 35-45mm and an effective drilling depth of 5 meters. This machine is particularly valuable for:

  • Mining operations
  • Quarrying projects
  • Tunneling and underground construction
  • Roof bolting applications
Specifications
Parameter Value
Weight (kg) 27
Dimensions L×W×H (mm) 668×248×202
Air consumption (l/s) ≤57
Air hose diameter (mm) 25
Impact frequency (Hz) ≥39
Bit size (mm) 34-42
Drilling depth (m) 5
Shank (hex. xL) (mm) 22x108
FY250 Line Oiler Specifications
Capacity (L) 0.25
Weight (kg) 1.2
Key Advantages
  • Lightweight design for improved maneuverability
  • High drilling speed for increased productivity
  • Low gas consumption for cost efficiency
  • Minimal vibration for operator comfort
  • Simple operation with intuitive controls
  • Reliable performance with low failure rate
YT27 Pneumatic Rock Drill with 668 x 248 x 202mm Size Low Gas Consumption and Small Vibration for Efficient Drilling 0
YT27 Pneumatic Rock Drill with 668 x 248 x 202mm Size Low Gas Consumption and Small Vibration for Efficient Drilling 1
YT27 Pneumatic Rock Drill with 668 x 248 x 202mm Size Low Gas Consumption and Small Vibration for Efficient Drilling 2
YT27 Pneumatic Rock Drill with 668 x 248 x 202mm Size Low Gas Consumption and Small Vibration for Efficient Drilling 3
