Product Details:
|

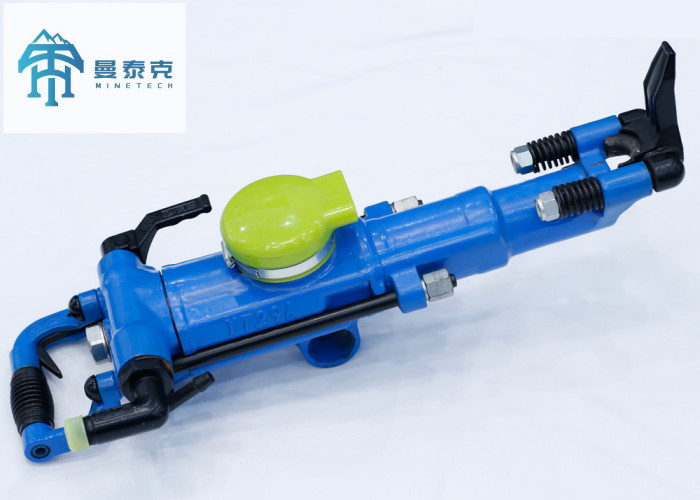

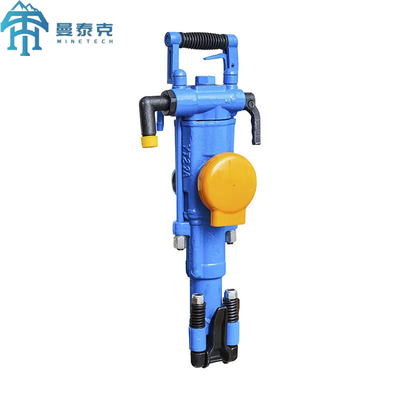

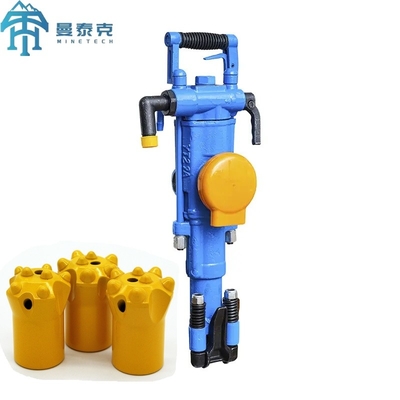

Name: | Pneumatic Portable Drilling Machine/Hand Held Rock Drill/jack Hammer | Advantage: | Light Weight, Low Noise, High Efficiency |
---|---|---|---|
Market: | Global | Key Word: | Rock Drilling Machine |
Suitable For: | Soil And Rock | Color: | Blue Or Customized |
Feature: | High Drilling Efficiency | Usage: | Ore,mining Used,rock Drilling |
Highlight: | Hand Operated rock drill,Pneumatic rock drill,rock drill with air leg |
Parameter | Unit | Value |
---|---|---|
Weight | kg | ≈27 |
Length | mm | 668 |
Cylinder diameter | mm | 80 |
Piston stroke | mm | 60 |
Gas consumption | L/s | ≤80 |
Drilling frequency | Hz | ≥37 |
Impact energy | J | ≥75.5 |
Borehole speed | mm/min | ≥475 |
Borehole diameter | mm | Φ34-45 |
Perforating depth | m | 5 |
Shank | mm | 22*108±1 |
