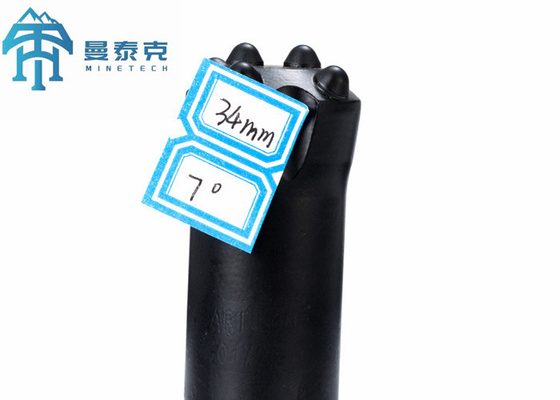

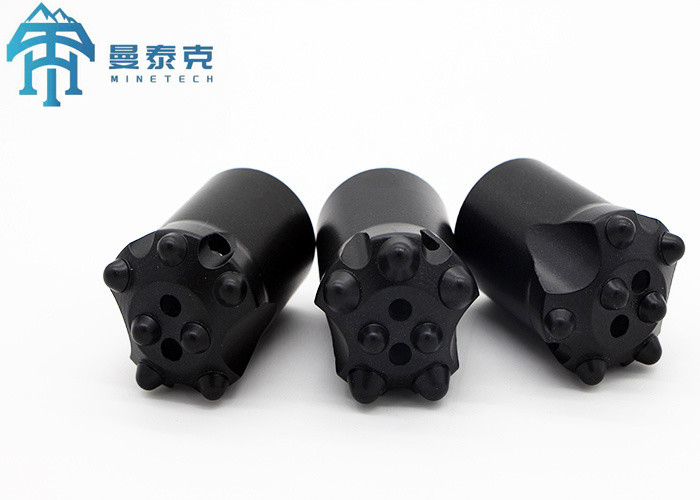

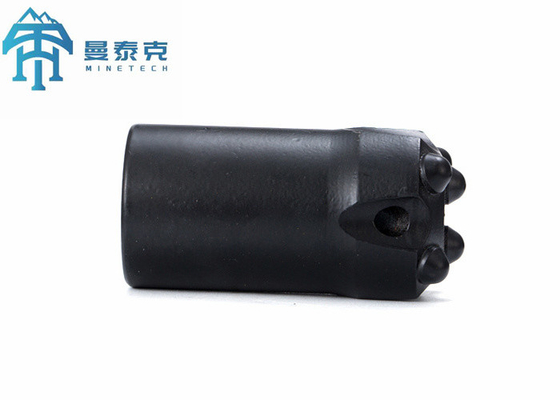

34mm 7 Degree Tapered Button Bit with Zinc-Coated Inside and Ballistic Button Shape for Hard Rock Drilling

34mm 7 Degree Tapered Button Bit with Zinc-Coated Inside and Ballistic Button Shape for Hard Rock Drilling
34mm 7 Degree Tapered Button Bit with Zinc-Coated Inside and Ballistic Button Shape for Hard Rock Drilling 34mm 7 Degree Tapered Button Bit with Zinc-Coated Inside and Ballistic Button Shape for Hard Rock Drilling 34mm 7 Degree Tapered Button Bit with Zinc-Coated Inside and Ballistic Button Shape for Hard Rock Drilling 34mm 7 Degree Tapered Button Bit with Zinc-Coated Inside and Ballistic Button Shape for Hard Rock Drilling 34mm 7 Degree Tapered Button Bit with Zinc-Coated Inside and Ballistic Button Shape for Hard Rock Drilling

Large Image :  34mm 7 Degree Tapered Button Bit with Zinc-Coated Inside and Ballistic Button Shape for Hard Rock Drilling

Product Details:
Place of Origin: China
Brand Name: MTH
Certification: ISO9001
Model Number: Tapered button bit
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: $3-$300
Packaging Details: Carton box
Delivery Time: 7 days
Payment Terms: T/T,Western Union
Supply Ability: 5000/Month

34mm 7 Degree Tapered Button Bit with Zinc-Coated Inside and Ballistic Button Shape for Hard Rock Drilling

Description
Product Name: Tapered Button Bit Color: Red, Black, Yellow Or Customized
Bit Tapper: 7° , 11°, 12° Processing Type: Heart Treatment
Size: 34mm Material: Carbide Steel
Bit Type: Short Skirt Flushing Holes: 2
Button Shape: Ballistic Feature: Zinc-Coated Inside
Highlight:

7 Degree Tapered Button Bit

,

34mm Tapered Button Bit

,

Zin Coated Inside Mining Tools

34mm 7 Degree Tapered Button Bit With Zinc Coated Inside Mining Tools
Product Description
Tapered button bit is designed for use with pneumatic rock drills and tapered drill rods, connecting via the taper on the drill bit and rod. Ideal for hard rock drilling applications including mine secondary crushing, bolting, and drifting. Featuring tungsten carbide tips and hot-plated skirts, these bits offer superior drilling performance and extended service life. Available in standard taper angles of 7°, 11°, and 12°.
Key Features
  • Tapered interface ensures a secure connection with drill rods, minimizing looseness during operation
  • Constructed from high-strength alloy steel for durability in hard rock conditions
  • Heat-treated for enhanced wear resistance and strength

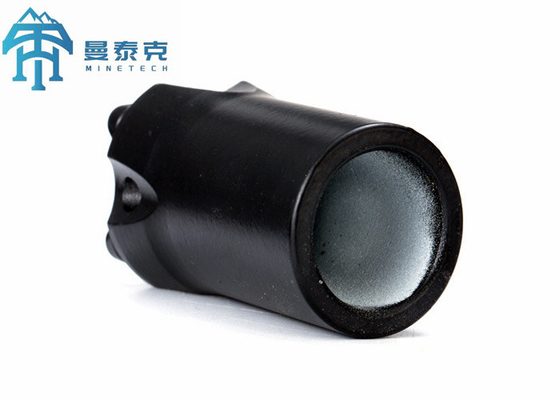

  • Zinc-coated interior for corrosion protection
Technical Specifications
Parameter Value
Product Name Tapered Button Bit
Bit Tapper 11°
Flushing Holes 2
Bit Type Short Skirt
Size 34
Package Wooden Box
Button Number 7
Color Yellow
Material Carbide Steel
Feature Zin-Coated Inside
Related Bits Parameters
Bit Diameter (mm/inch) Button Number Angle Length (mm)
28 / 11/8″ 4 7°111°/12° 50-65
30 / 1 3/16″ 4~6 7°111°/12° 50-65
32 / 11/4″ 4~7 7°/11°/12° 50-65
34 / 111/32″ 4~8 7°/11°/12° 50-65
35 / 13/8″ 7~8 7°111°/12° 50-65
36 / 113/32″ 4~8 7°/11°/12° 50-65
38 / 11/2″ 4~8 7°/11°/12° 50-65
40 / 19/16″ 4~8 7°111°/12° 50-65
41 / 15/8″ 4~8 7°/11°/12° 50-65
42 / 121/32″ 4~8 7°/11°/12° 50-65
Applications
Designed for pneumatic rock drills and tapered drill rods, these tapered button bits excel in hard rock drilling applications including secondary crushing, rock bolt support, and roadway excavation in mining operations.
34mm 7 Degree Tapered Button Bit with Zinc-Coated Inside and Ballistic Button Shape for Hard Rock Drilling 0 34mm 7 Degree Tapered Button Bit with Zinc-Coated Inside and Ballistic Button Shape for Hard Rock Drilling 1 34mm 7 Degree Tapered Button Bit with Zinc-Coated Inside and Ballistic Button Shape for Hard Rock Drilling 2 34mm 7 Degree Tapered Button Bit with Zinc-Coated Inside and Ballistic Button Shape for Hard Rock Drilling 3 34mm 7 Degree Tapered Button Bit with Zinc-Coated Inside and Ballistic Button Shape for Hard Rock Drilling 4
Company Profile
Hebei Minetech Machinery Technology Co, Ltd is a joint venture enterprise with European partners, located in Shijiazhuang City, Hebei Province, China. Specializing in manufacturing and exporting mining machinery including hydraulic and pneumatic drill machines, roof bolters, and drilling consumables like drill bits and rods. With over a decade of experience, professional engineers, and a dedicated sales team, we provide complete solutions for mining machinery. Our products are exported to more than thirty countries including Southeast Asia, the United States, Germany, Britain, South Africa, Poland, Russia, and South America, establishing a strong international reputation.
