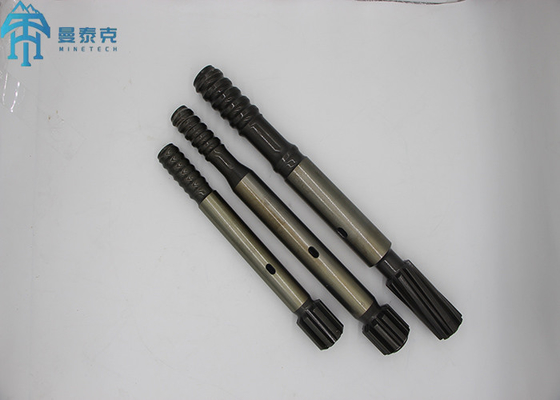

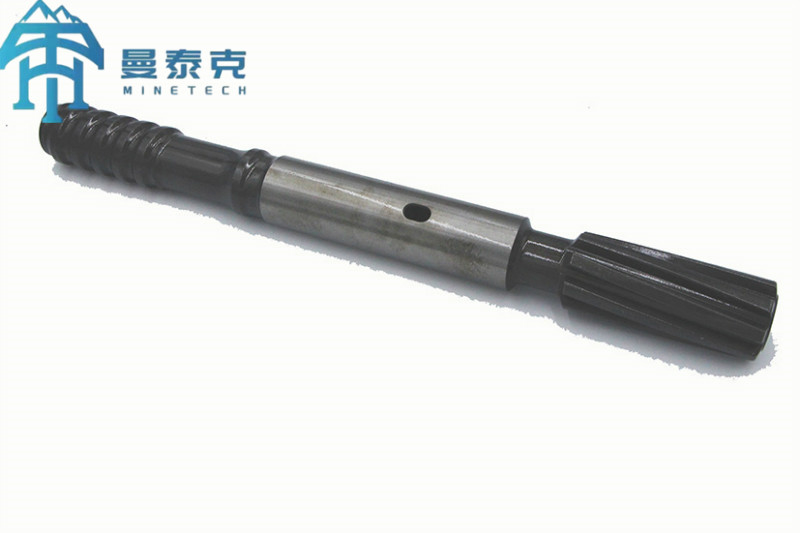

CNC machining 525mm T45 Shank Adapter For Rock Drilling And Mining
Product Description:
The task of the shank adapter is to transmit rotation torque, feed force, impact energy and flushing medium to the drill string (extension drill rods, drifting drill steels).
Our shank adapters are there fore designed to with stand the high impact power of modern rock drills and made from specially selected material which also is hardened through cauterizing. Around 300 different shank adapters suitable for different rock drills are currently available from Atlas Copco series drifters, , Tam rock series drifters, Garden Diver series drifters etc.
Technical Parameters:
| Product Attribute |
Value |
| Processing Type |
Forging |
| Application |
Construction Works, Energy & Mining, Rock Drilling |
| Technology |
Heat Treatment |

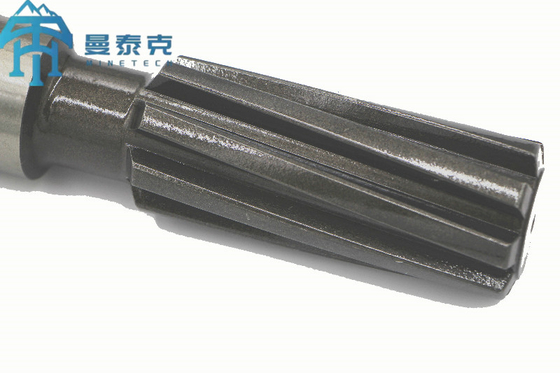

| Spline |
8 |
| Diameter of the Spline |
38mm |
| Material |
High Manganese Steel |
| Brand |
Minetech |
| Packaging Type |
Box |
| Length730 |
MM |

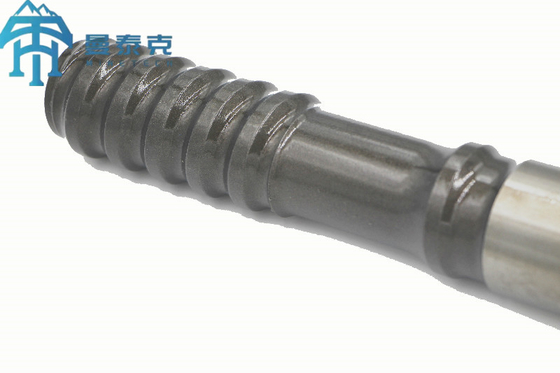

| Thread |
T45 |
Features:
Our shank adapters are suitable for a variety of brand rock drill models, such as Atlas Copco (Epiroc) rock drills: BBC43, BBC44, BBC45, BBC100, BBC51, BBC52, BBC54, BBC120, BBE56, BBE57, COP125, COP130, COP131, COP 1028, COP 1032, COP 1036, COP1038, COP 1132, COP1238, COP1240, COP1440, COP1550, COP1638, COP1838, COP2238, COP1838EX, COP2150EX, COP 4050, COP4050EX rock drills, etc.
Applications:
Male shank adapters are generally better suited for drifting, tunneling and extension applications where high bending stresses are present. While female shank adapters are used when the drilling space is limited and the total feed length is important, for example underground roof bolting.
The task of the shank adapter is to transmit rotation torque, feed force, impact energy and flushing medium to the drill string (extension drill rods, drifting drill steels).
