Product Details:
|
Key Word: | Hexagonal Drill Rod 1108mm | Usage: | Rock Drilling,mining,Hole Drilling |
---|---|---|---|
Shank Size: | H22*108mm | Taper Degree: | 7,11,12 |
Advantage: | Reliable Material And Long Service Life | Origin: | China |
Material: | High Carbon Steel | Packing: | Wooden Box |
Highlight: | H22 Rock Drilll Tool,12 Degree Tapered Drill Rod,1000mm Rock Drilll Tool |

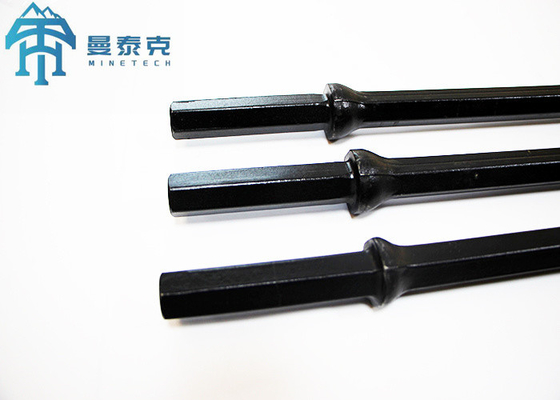

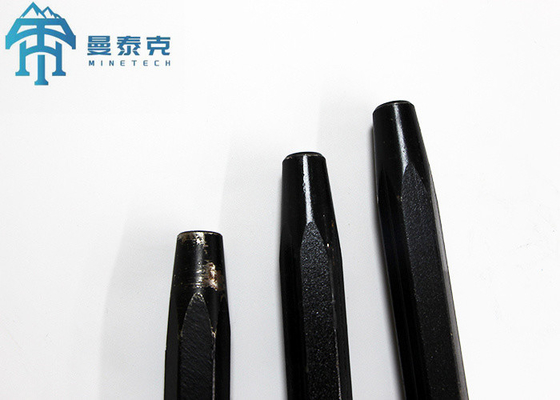

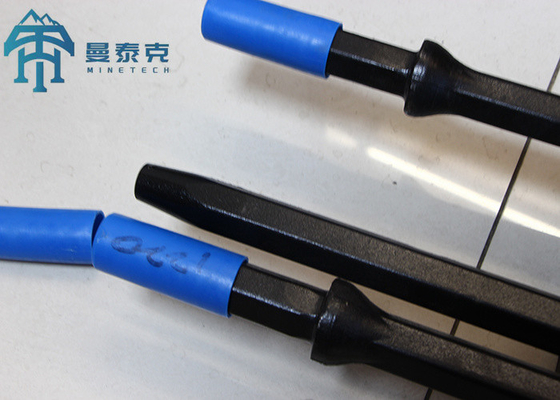

H22 1000mm Rock Drilll Tool Hexagon Mining Shank 12 Degree Tapered Drill Taper Rod
Introduction:
Light weight rock drilling tools include integral drilling rod,tapered drilling tools and shank drilling tools.They are used for the excavation of anchor holes in underground mines,shallow holes for mining blasting and mine shafts. Drifting and tunneling tools are used for the blasting of large underground metal mine roadway,drilling of anchor hole,excavation of railway and highway tunnels,hydropower project diversion tunnel and underground power house. Benching drilling tools are used for drilling deep holes and supporting holes in underground mining and blasting.
Specification:
Rod Length:500~6400mm
Shank length: 22*108mm, 25*108mm
Drill Rod | Length(mm) with shank | Foot | Weight approx(kg) | Taper | shank |
Tapered Drill Rod | 1320mm | 4'' | 4.4 | 7,11,12 degree | 108mm |
Tapered Drill Rod | 1632mm | 5'' | 5.4 | 7,11,12 degree | 108mm |
Tapered Drill Rod | 1936mm | 6'' | 6.4 | 7,11,12 degree | 108mm |
Tapered Drill Rod | 2546mm | 8'' | 8.4 | 7,11,12 degree | 108mm |
