Product Details:
|

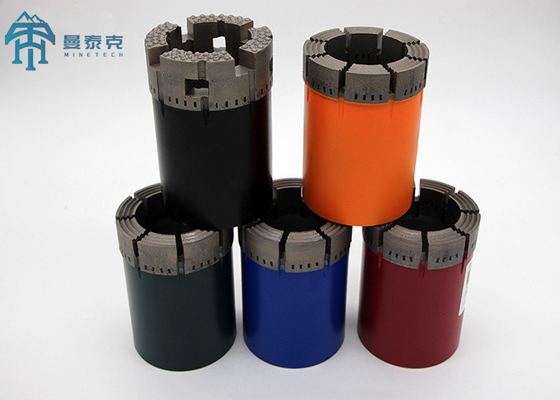

| Product Name: | Diamond Core Drill Bit | Use: | Masonry Drilling,Well Drilling,Concret Etc. |
|---|---|---|---|
| Advantage: | High Drilling Efficiency,High-efficiency | Size: | PQ NQ HQ AQ |
| Color: | Blue / Green / Orange / Red | Material: | Diamond,65Mn |
| Package: | Plastic Box Or Carton | Machine Type: | Drilling Tool |
| High Light: | 9mm Core Drilling Tools,AQ drill bit diamond,65Mn drill bit diamond |
||
Specifications:
| Size | Outside diameter(mm) | Inside diameter(mm) |
| AQ | 47.75/47.50 | 27.10/26.85 |
| BQ | 59.69/59.44 | 36.52/36.27 |
| BQ3 | 59.69/59.44 | 33.65/33.40 |
| NQ | 75.44/75.19 | 47.75/47.50 |
| NQ2 | 75.44/75.19 | 50.80/50.55 |
| NQ3, NQTT | 75.44/75.19 | 45.21/44.96 |
| HQ | 95.76/95.38 | 63.63/63.38 |
| HQ3, HQTT | 95.76/95.38 | 61.24/60.99 |
| PQ | 122.30/121.80 | 85.09/84.84 |
| PQ3 | 122.30/121.80 | 83.18/82.93 |
Basic Info:
Price: Negotiable
Model NO: AQ BQ NQ HQ PQ
Crown height: 9mm,10mm,12mm,14mm,16mm
Usage: Wireline core barrel parts
Matrix hardness: F0-F18
Water way: 8/12
Payment term: TT, LC
Delivery date: Negotiable
Packing: export standard
MOQ: 1 PC
Features:
1. Significantly outperforms the successful Series range in drilling speed and bit life.
2. Protects the diamond from oxidation and surface degradation.
3. Inhibits the premature "pull-out" of the diamond.
4. Available in multiple standard configurations and selected on the basis of relative rock hardness and ground conditions.
Type of Bit Matrix:
The matrix of our impregnated bits is designed to expose new diamonds to the bits' cutting face as wear occurs. Fast penetration rate is maintained as a result of this action, also with long life using time is important, meanwhile it will keep the cost of diamond drilling to a minimum.
The optimum diamond size, concentration and matrix type are dependent on the hardness and abrasiveness of the formation to be drilled.
Packing:
• Wooden case.
Company Profile:
Hebei Minetech Machinery Technology Co, Ltd. is an joint venture enterprise with Europe Partner, which is located in Shijiazhuang City, Hebei Province,China. Our company is specialized in manufacturing and exporting of mining machinery, such as hydraulic and pneumatic drill machine, roof bolter and drilling consumption, like drill bit and drill rod with own factory in Shijiazhuang City.
With our rich expenience for over a decade and with professional engineers andsales team, we focus on providing complete solutions for mining machinery.
Target markets is gradually shifted from domestic market to international market, products are exported to more than thirty countries and regions, including Southeast Asia, the United States, Germany, Britain, South Africa, Poland, Russia, Middle Asia, South America and so on, and established a good brand and reputation international market.
