Product Details:
|
| Product Name: | Rock Drilling Machine | Key Word: | Yt29 Hand Held Rock Drilling Equipment |
|---|---|---|---|
| Weight: | 27kgs | Size: | 659 X 248 X 205 Mm |
| Drilling Hole Diameter: | 34 - 45mm | Drilling Hole: | 5m |
| Color: | Request | Usage: | Ore,mining Used,Rock Drilling |
| Power Type: | Pneumatic,Air Compressor And Electric | Package: | Standard |
| High Light: | YT29A hand held rock drilling equipment,5m hand held rock drilling equipment,Pneumatic yt29a rock drill |
||

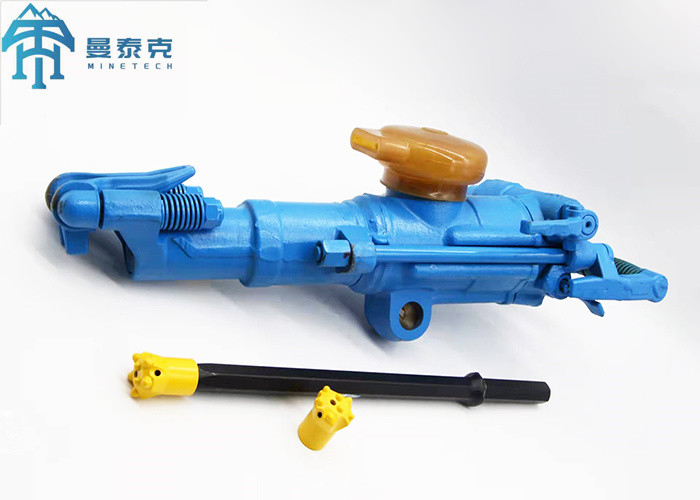

Forging Processing 5m Hand Held Rock Drilling Machine Yt29 Model
YT29 Rock Drilling Machine Description:
Pneumatic rock drill is a kind of high efficiency air leg rock drill machine.
When it is matched with Model FY250 Oil reservoir and Model FT160A or FT160B Air-leg , it is suitable for wet drillingunder various of rocks
YT29 Rock Drilling Machine Applications:
Used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and national defence project facility.
YT29 Rock Drilling Machine Specification:
|
YT29A AIR LEG ROCK DRILL |
|
|
Weight |
27 kg |
|
External Dimensions(L W H) |
659x248x205 mm |
|
Piston Diameter |
82 mm |
|
Piston Structure Stroke |
60 mm |
|
Working Air Pressure |
0.4~0.63 MPa |
|
Impact Frequency |
≥39 Hz |
|
Impact energy |
≥78 J |
|
Air Consumption |
≤88 L/s |
|
Rotation Torque |
≥20 N.m |
|
Water Pressure |
0.3~0.48 MPa |
|
Air Pipe Inner Diameter |
25 mm |
|
Water Pipe Inner Diameter |
13 mm |
|
Drilling Hole Diameter |
34~45 mm |
|
Drilling Hole Depth |
5 m |
|
Working Temperature |
-30~45℃ |
|
Shank Size |
H22x108±1 mm |
|
FY250 MODEL OIL LUBRICATOR |
|
|
Weight |
1.2 Kg |
|
Oil Capacity |
0.25 L |
|
|
FT160A |
FT160B |
FT160C |
FT170 |
|
Weight |
17 kg |
16 kg |
18 kg |
18 kg |
|
Length |
1668 mm |
1428 mm |
1820 mm |
1668 mm |
|
Propulsion Stroke |
1338 mm |
1098 mm |
1490 mm |
1338 mm |
|
Cylinder Inner Diameter |
65 mm |
65 mm |
65 mm |
67 mm |
YT29 Rock Drilling Machine Advantage:
YT29A adopts the latest designing technology, with the superiority of its high speed, low failure rate, durable wearing parts, low noise, and light weight. It is also efficient, energy saving and environmentally sound.
Target markets:
Target markets is gradually shifted from domestic market to international market, products are exported to more than thirty countries and regions, including Southeast Asia, the United States, Germany, Britain, South Africa, Poland, Russia, Middle Asia, South America and so on, and established a good brand and reputation international market.
Company Profile:
Hebei Minetech Machinery Technology Co, Ltd. is located in Hebei province of China. Our company is a professional production and export tapered and thread rod, chisel and button bit and other mining drilling tools enterprises. With our rich experience for over a decade and with professional engineers and sales team, we focus on providing complete solutions for mining machinery.
