Product Details:
|
| Name: | Rock Drill | Key Word: | Rock Drilling Machine |
|---|---|---|---|
| Model: | YT29 | Length: | 661mm |
| Weight: | 27kg | Shank Size At The End Of The Rod: | Hexagonal 22x108 Mm |
| Advantage: | Low Price, High Efficiency | Drilling And Frequency: | ≥37Hz |
| Impact Energy: | ≥70J | Chiselling Depth: | 5 M |
| The Cylinder Diameter: | 82mm | Application: | Mountain Cutting, Rock Drilling |
| High Light: | Mountain Cutting air leg rock drill,661mm pneumatic jack hammer drill,YT29 pneumatic jack hammer drill |
||

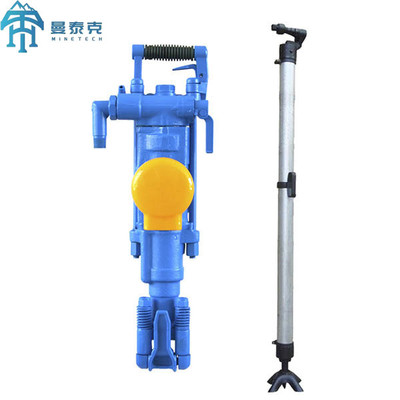

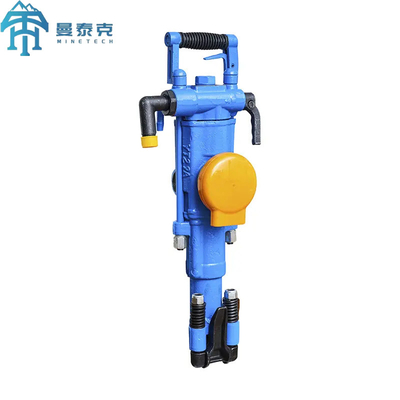

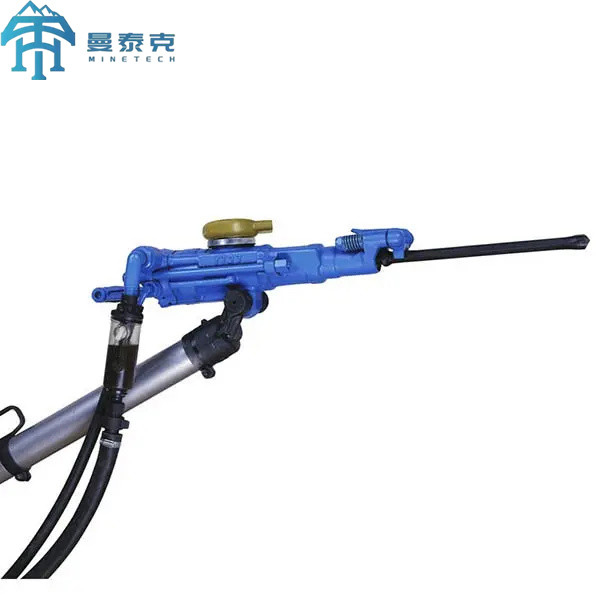

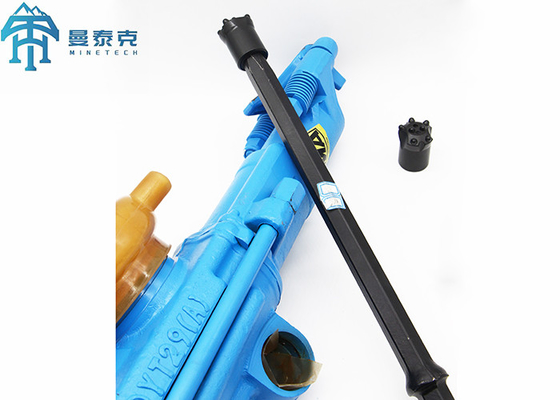

YT Series Rock Drill is a kind of rock drilling machinery. It is widely used in rock tunneling and various rock drilling work in drilling and breaking, is an important tool in mining, railway, transportation, water conservancy construction and other rock projects.
This machine has reasonable structure and flexible start. It has light weight, fast rock drilling speed, low gas consumption, small vibration, easy operation, low failure rate, long life of parts, good economic efficiency, etc.
| PRODUCT SPECIFICATION | ||
| The parameter name | Unit | The parameter value |
| Weight | kg | ≈26.5 |
| Length | mm | 661 |
| The cylinder diameter | mm | 82 |
| Piston stroke | mm | 60 |
| Gas consumption | L/s | ≤65 |
| Drilling and frequency | Hz | ≥37 |
| Impact energy | J | ≥70 |
| borehole speed | mm/min | ≥475 |
| The borehole diameter | mm | Φ34-45 |
| Perforating depth | m | 5 |
| Shank | mm | 22×108±1 |
Lightweight and easy to handle
Low consumption and long life components,
Highly efficient and fast drilling machine.
The pneumatic rock drills are mainly used for drilling in mines, railways, irrigation works and quarries.
