PQ Wireline Diamond Core Drill Bits for High Drilling Efficiency in Masonry and Well Drilling

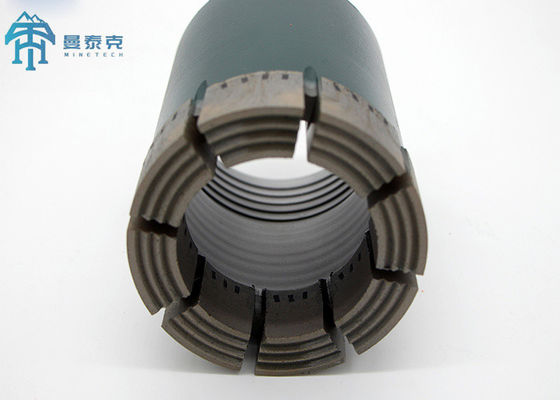

Large Image : PQ Wireline Diamond Core Drill Bits for High Drilling Efficiency in Masonry and Well Drilling

Product Details:

Place of Origin:	CHINA
Brand Name:	MTH
Certification:	ISO9001
Model Number:	PQ

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	$3-$300
Packaging Details:	wooden case
Delivery Time:	10-15 days
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	10000 pieces per month

Contact Now

PQ Wireline Diamond Core Drill Bits for High Drilling Efficiency in Masonry and Well Drilling

Description

Product Name:	Diamond Core Drill Bit	Material:	Diamond,65Mn
Use:	Masonry Drilling,Well Drilling,Concret Etc.	Application:	Drilling Holes
Size:	AQ BQ NQ HQ PQ NQ3 HQ3 PQ3	Certification:	ISO9001
Packing:	Plastic Box,diamond Core Drill Bits Packed By Box Or Carton	Machine Type:	Drilling Tool
Advantage:	High Drilling Efficiency,High-efficiency	Color:	Blue / Green / Orange / Red / Purple
Highlight:	65Mn diamond core drill bits , 122.30mm diamond core drill bits , PQ Wireline diamond core drill bits

PQ Wireline Diamond Core Drill Bits

Product Description

PQ Wireline Diamond Bits are impregnated tube core bits designed for core drilling applications. These professional drilling tools feature an outside pipe and an inside pipe that can be conveyed separately to the surface.

The inside pipe includes a core-receiving receptacle at its lower end and a measurement unit at its upper end for on-site acquisition, processing, and storage of drilling data including borehole parameters, core samples, and drilling process metrics.

Applications

Core drilling in steel plates and other industrial materials
Used with specialized core drilling machines
Thin-walled diamond core bits for concrete core sampling
Compressive strength testing of structural concrete

Specifications

Size	Outside Diameter (mm)	Inside Diameter (mm)
AQ	47.75/47.50	27.10/26.85
BQ	59.69/59.44	36.52/36.27
BQ3	59.69/59.44	33.65/33.40
NQ	75.44/75.19	47.75/47.50
NQ2	75.44/75.19	50.80/50.55
NQ3, NQTT	75.44/75.19	45.21/44.96
HQ	95.76/95.38	63.63/63.38
HQ3, HQTT	95.76/95.38	61.24/60.99
PQ	122.30/121.80	85.09/84.84
PQ3	122.30/121.80	83.18/82.93

Advantages

Surface-Set diamond bits are ideal for drilling relatively soft, abrasive, unconsolidated formations where impregnated diamond bits are less effective. They are also recommended for harder formations when equipment limitations prevent optimal use of impregnated diamond bits.
