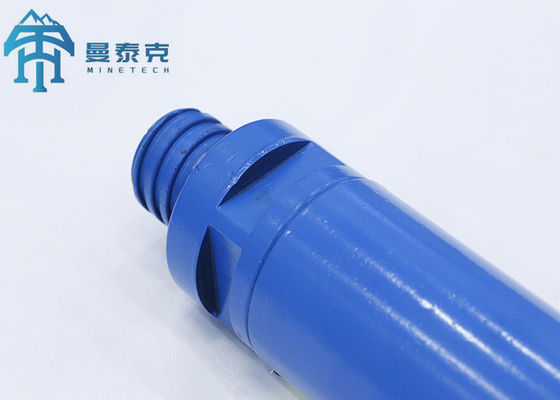

4 Inch 102mm DTH Hammer with API 2 3/8" REG and DHD 3.5 for Hard Rock Drilling

4 Inch 102mm DTH Hammer with API 2 3/8" REG and DHD 3.5 for Hard Rock Drilling
4 Inch 102mm DTH Hammer with API 2 3/8" REG and DHD 3.5 for Hard Rock Drilling
4 Inch 102mm DTH Hammer with API 2 3/8" REG and DHD 3.5 for Hard Rock Drilling 4 Inch 102mm DTH Hammer with API 2 3/8" REG and DHD 3.5 for Hard Rock Drilling

Large Image :  4 Inch 102mm DTH Hammer with API 2 3/8" REG and DHD 3.5 for Hard Rock Drilling

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO9001
Model Number: 4 Inch 102mm Dth Hammer
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: $3-$300
Packaging Details: wooden case
Delivery Time: 10-15 days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 10000 pieces per month
Contact Now

4 Inch 102mm DTH Hammer with API 2 3/8" REG and DHD 3.5 for Hard Rock Drilling

Description
Product Name: DTH Hammer Key Word: 4 Inch 102mm Dth Hammer
Connect Thread: API 2 3 / 8 " REG, DHD 3.5 Machine Type: Drilling Tool,Drilling Equipment
Material: Carbon Steel,Tungsten Carbide Application: Rock Drilling,quarry,mining
Color: Black,Gold,Red,blue Or Customized Advantage: High Performance,High Wear Resistant,High-efficiency
Size: 3" 3.5" 4" 5" 6" 8" 10" 12" Usage: Hole Drilling,oil,Underground Mining,ore
Highlight:

4Inch dhd hammer

,

102mm dhd hammer

4 Inch 102mm DTH Hammer Hard Rock Drilling Equipment CNC Machining
Product Description
"DTH" stands for "Down The Hole" and is sometimes referred to as "RAB" (Rotary Air Blasting) in certain markets.
Technical Specifications
Parameter Value 1 Value 2 Value 3 Value 4 Value 5
Length (Without Bit) 930mm 1030mm 1214mm 1160mm 1248mm
Weight (Without Bit) 25.00 kg 39.00 kg 76.50 kg 72.50 kg 100.00 kg
External Diameter 82mm 99mm 126mm 126mm 142/144/146/148mm
Bit Shank DHD3.5 COP44/DHD340 COP54/DHD350R ND55C/DHD350Q COP64/DHD360
Hole Range 90-110 mm 110-135 mm 135-155 mm 135-155 mm 155-190 mm
Connection Thread API 2 3/8"Reg API 2 3/8"Reg API 2 3/8"Reg API 3 1/2"Reg API 2 7/8"Reg API 2 3/8"Reg API 3 1/2"Reg API 2 7/8"Reg API 3 1/2"Reg
Working Pressure 1.0-1.5 Mpa 1.2-2.0 Mpa 1.3-2.3 Mpa 1.3-2.3 Mpa 1.5-2.5 Mpa
Impact Rate at 17 Bar 28HZ 27HZ 25HZ 25HZ 23HZ
Recommended Rotation Speed 25-40 r/min 25-40 r/min 20-35 r/min 20-35 r/min 20-30 r/min
Air Consumption 1.0Mpa:4.5 m³/min
1.5Mpa:9.0 m³/min		 1.0Mpa:6 m³/min
1.8Mpa:10 m³/min		 1.0Mpa:9 m³/min
1.8Mpa:15 m³/min
2.4Mpa:23 m³/min		 1.0Mpa:9 m³/min
1.8Mpa:15 m³/min
2.4Mpa:23 m³/min		 1.0Mpa:10 m³/min
1.8Mpa:20 m³/min
2.4Mpa:28.5 m³/min
Applications
This DTH hammer is widely used in metallurgy, coal, chemical industry, building materials, mining operations, and construction projects including highways, railroads, and national defense. It's suitable for dry, mixed wind and water, and wet operations with reliable performance.
Product Advantages
  • Improved design incorporating advanced technology
  • Constructed with superior alloy steel for durability
  • Extensive testing confirms longer service life
  • 15% higher penetration speed than conventional models
  • Lower air consumption for improved efficiency
Operating Principle
The DTH hammer operates through a precise pneumatic mechanism. During the impact stroke, compressed gas drives the piston downward at high speed to strike the drill bit. The system automatically reverses direction when the piston reaches the end of its stroke, creating a continuous hammering action.
4 Inch 102mm DTH Hammer with API 2 3/8" REG and DHD 3.5 for Hard Rock Drilling 0
4 Inch 102mm DTH Hammer with API 2 3/8" REG and DHD 3.5 for Hard Rock Drilling 1
4 Inch 102mm DTH Hammer with API 2 3/8" REG and DHD 3.5 for Hard Rock Drilling 2
Manufacturer Information
Hebei Minetech Machinery Technology Co, Ltd. is a professional manufacturer and exporter of mining drilling tools located in Hebei province, China. With over a decade of experience, our company specializes in producing tapered and thread rods, chisel and button bits, and other mining drilling equipment. Our team of professional engineers and sales staff are dedicated to providing complete solutions for mining machinery applications.
