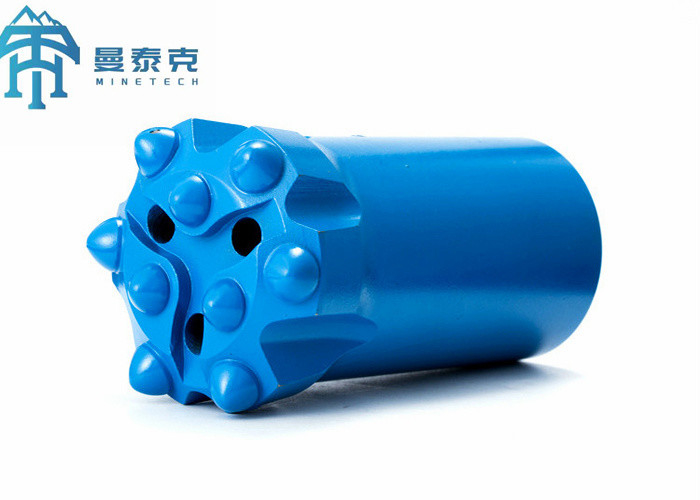

Product Details:
|
Product Name: | Thread Button Bit | Color: | Blue/yellow / Black / Red |
---|---|---|---|
Processing Type: | Forging | Rock Formation: | Hard / Medium Hard / Soft Rock Formation |
Thread: | T38 | Weight: | 3.5KG |
Carbide Shape: | Ballistic/spherical/semi-ballistic | Usage: | Mining Or Quarry Or Well Drilling, Rock Drilling, For Drifting Tunneling Bench Drilling, Hole Drilling, Coal Miniing |
Flushing Holes: | 2 Or Optional | Place Of Origin: | China |
Highlight: | 127mm Thread Button Bit,45mm Thread Button Bit,R32 retrac button bit |
1. Raw material: It is produced by premium alloy steel bar and tungsten carbides with heat treatment
2. Body & button shape: Normal and retract type;ballistic and spherical
3. Face shape: General flat and drop-center
4.Thread type: R32,T38,T45,T51
5. Diameter: 41mm-127mm
6. Color: Blue,golden,orange
R32 |
|||||
Name |
Diameter |
Tip size(mm) |
Flushing holes |
||
mm |
gauge |
front |
side |
front |
|
R32 thread button bits |
41 |
4*9 |
2*8 |
1 |
1 |
43 |
4*9 |
2*9 |
1 |
1 |
|
45 |
4*10 |
2*9 |
1 |
1 |
|
R32 Retrac thread button bits |
60 |
6*9 |
4*8 |
0 |
3 |
64 |
6*9 |
4*9 |
0 |
3 |
|
70 |
6*10 |
4*10 |
0 |
3 |
|
T38 |
|||||
Name |
Diameter |
Tip size(mm) |
Flushing holes |
||
mm |
gauge |
front |
side |
front |
|
T38 thread button bits |
57 |
5*11 |
3*10 |
1 |
1 |
64 |
5*12 |
3*11 |
1 |
1 |
|
76 |
5*14 |
3*12 |
1 |
2 |
|
T38 Retrac thread button bits |
60 |
8*9 |
3*9 |
2 |
2 |
64 |
8*9 |
4*9 |
2 |
2 |
|
70 |
8*10 |
4*10 |
2 |
2 |
|
76 |
8*11 |
4*10 |
2 |
2 |
|
89 |
8*12 |
5*12 |
2 |
2 |
|
T45 |
|||||
Name |
Diameter |
Tip size(mm) |
Flushing holes |
||
mm |
gauge |
front |
side |
front |
|
T45 thread button bits |
70 |
6*11 |
4*10 |
0 |
2 |
76 |
6*13 |
4*10 |
0 |
2 |
|
89 |
8*12 |
5*12 |
2 |
2 |
|
102 |
8*13 |
6*12 |
2 |
2 |
|
115 |
8*14 |
6*13 |
2 |
2 |
|
T45 Retrac thread button bits |
70 |
8*11 |
4*10 |
2 |
2 |
76 |
8*11 |
4*10 |
2 |
2 |
|
80 |
8*12 |
5*11 |
2 |
2 |
|
89 |
8*12 |
6*11 |
2 |
2 |
|
102 |
8*13 |
6*12 |
2 |
2 |
|
T51 |
|||||
Name |
Diameter |
Tip size(mm) |
Flushing holes |
||
mm |
gauge |
front |
side |
front |
|
T51 trhead button bits |
89 |
8*12 |
5*12 |
2 |
2 |
102 |
8*13 |
6*12 |
2 |
2 |
|
115 |
8*14 |
6*13 |
2 |
2 |
|
127 |
8*14 |
6*14 |
2 |
2 |
|
T51 Retrac thread button bits |
89 |
8*11 |
5*12 |
2 |
2 |
102 |
8*11 |
6*12 |
2 |
2 |
|
115 |
8*12 |
6*13 |
2 |
2 |
|
127 |
8*12 |
6*14 |
2 |
2 |
• Competitive price: cheap price because of direct factory price
• Problems solve ability: this ability comes from rich experience of drill bits industry
• Fast delivery time: usually it takes 30 days for production. only 2 or 3 days if we have stock of your request size.
• Best quality control: we have our own experienced QC team,there will be strict inspection and testing for every order before shipping out.
• OEM,ODM service : your own request about product will be served well
• Best after serviec: we will go to your place to check and solve the problems if there
Tapered chisel bits and cross bit: reasonable selection of steel and tungsten carbide which perfectly bonded by high-frequency welding.
Tapered button bits: Cold forging process and excellent heat treatment exactly combined with the cold inlaying technique.
Thread cross and button bits: Correct selection of material and hot mounting process.
DTH bits: good quality combination of material selection, heat treatment, and cold inlaying process.
DTH hammer: good quality combination of accurate gas distribution, impeccable processing process, selection of material and heat treatment.
