High Air Pressure 12in DHD350 DTH Hammer For Drilling Equipment

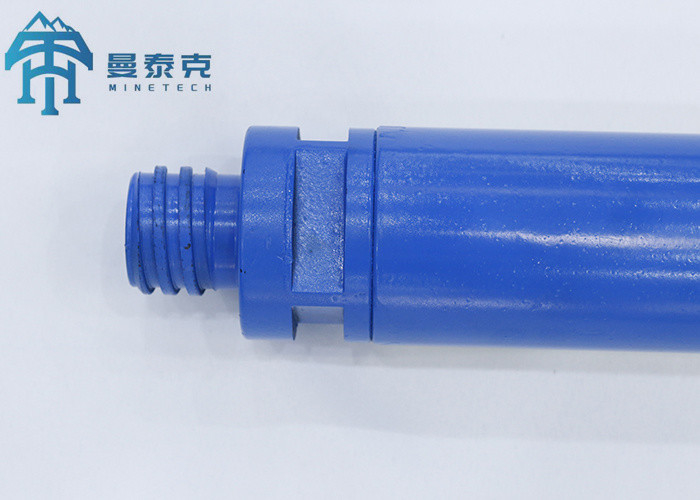

Large Image : High Air Pressure 12in DHD350 DTH Hammer For Drilling Equipment

Product Details:

Place of Origin:	CHINA
Brand Name:	MTH
Certification:	ISO9001
Model Number:	DHD350

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	$3-$300
Packaging Details:	wooden case
Delivery Time:	10-15 days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	10000 pieces per month

Contact Now

High Air Pressure 12in DHD350 DTH Hammer For Drilling Equipment

Description

Name:	DTH Hammer	Use:	Ore Mining,Well Drilling,DTH Drilling
Material:	Carbon Steel,Tungsten Carbide & Steel	Machine Type:	Drilling Tool,Drilling Equipment
Processing Type:	Forging,Casting	Advantage:	High Performance,High Wear Resistant,High-efficiency
Application:	Rock Drilling,quarry,water Well Drilling,mining Or Welling Drilling	Color:	Blue,Gold,Red,blue Or Customized
Usage:	Hole Drilling,oil,water Well,Underground Mining,ore	Size:	3" 3.5" 4" 5" 6" 8" 10" 12"
Diameter:	105-127mm	Connect Thread:	API 2 3/8" API 3 1/2" API 4 1/2" API 6 5/8" REG
Highlight:	DHD350 DTH Hammer , 12in DTH Hammer

High air pressure DHD350 Hammer DTH Hammer

Description:

“DTH” is the short for “Down The Hole” and sometimes it is also called “RAB” in some markets, “RAB” is short for “Rotary Air Blasting”.

Advantage:

1. superior alloy steel and robust design.

2. saving oil

3. 10%-20%lower air consumption

4. 15%-20% faster penetration than conventional DTH hammer

5. wording pressure 6 Bar to 35 Bar(0.6~ 3.5Mpa)

Specifications:

Technical Data
Length(Without Bit)	930mm	1030mm	1214mm	1160mm	1248mm
Weight(Without Bit)	25.00 kg	39.00 kg	76.50 kg	72.50 kg	100.00 kg
External Diameter	82mm	99mm	126mm	126mm	142/144/146/148mm
Bit Shank	DHD3.5	COP44/DHD340	COP54/DHD350R	ND55C/DHD350Q	COP64/DHD360
Hole Range	90-110 mm	110-135 mm	135-155 mm	135-155 mm	155-190 mm
Connect ion Thread	API 2 3/8”Reg	API 2 3/8”Reg	API 2 3/8”Reg API 3 1/2”Reg API 2 7/8”Reg	API 2 3/8”Reg API 3 1/2”Reg API 2 7/8”Reg	API 3 1/2”Reg
Working Pressure	1.0- 1.5 Mpa	1.2-2.0 Mpa	1.3-2.3Mpa	1.3-2.3 Mpa	1.5-2.5 Mpa
Inpact Rate at 17 Bar	28HZ	27HZ	25HZ	25HZ	23HZ
Reccfurended Rotation Speed	25-40 "min	25-40 r/min	20-35 r/min	20-35 r/min	20-30 r/min
Air Consunption	1.0Mpa :4.5 m3/min	1.0Mpa :6m3/min	1.0Mpa:9 m3/min	1.0Mpa:9m3/min	1.0Mpa :10 m3/min
	1.5Mpa:9.0m3/min	1.8Mpa:10m3/min	1.8Mpa:15m3/min	1.8Mpa:15m3/min	1.8Mpa:20m3/min
		2.4Mpa:15m3/min	2.4Mpa:23m3/min	2.4Mpa:23m3/min	2.4Mpa:28.5m3/mi

High Air Pressure 12in DHD350 DTH Hammer For Drilling Equipment 0

High Air Pressure 12in DHD350 DTH Hammer For Drilling Equipment 1

High Air Pressure 12in DHD350 DTH Hammer For Drilling Equipment 3
