Product Details:
|
Product Name: | H19, H22, H25 Taper Drill Rods | Shank Size: | H22 * 108mm , H25 * 108mm , H19 * 108mm |
---|---|---|---|
Taper Degree: | 4°46', 6, 7, 11, 12 | Effective Length: | 400mm - 6400mm Or By Customized |
Weight: | 3.03 Kg/m | Color: | Black Or By Customized |
Material: | Carbon Steel,High Manganese Steel | Processing Type: | Forging, Heat Treatment |
Machine Type: | Drilling Tool,penumatic Rock Drill,gasoline Jack Hammer | Advantage: | Reliable Material And Long Service Life |
Highlight: | 19mm rock drill rod,H25 rock drill rod |
Specification:
Effective Length: |
400~6400mm ( Lengths could be made to your specifications ) |
Shank size: |
H22 * 108mm , H25 * 108mm , H19 * 108mm |
Taper Degree: |
4°46', 6°, 7°, 11°, 12° |
Prodcut information:

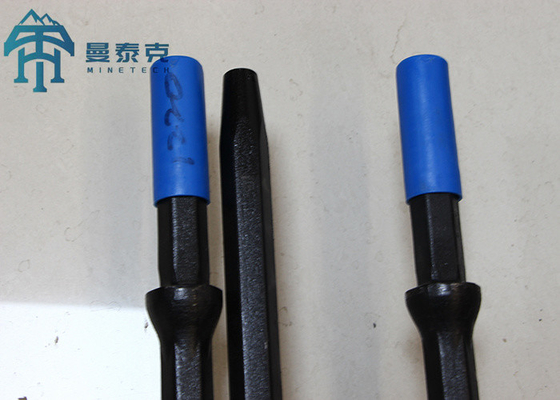

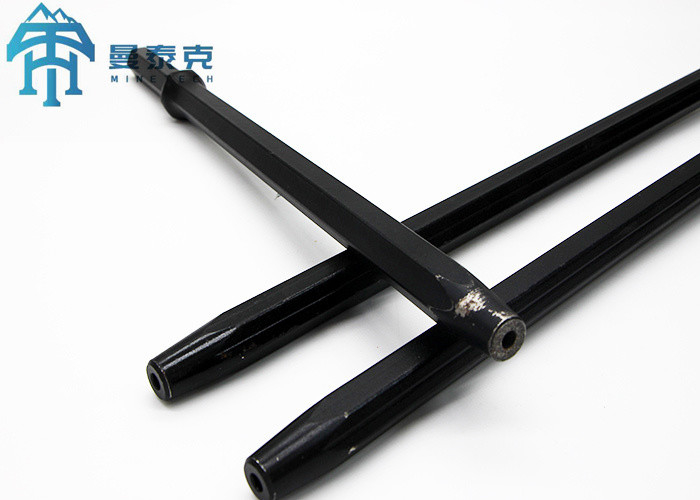

Tapered drill rod is a further development of the integral drill rods.
Matching the corresponding specifications of chisel, cross and button drill bits
It usually has a forged collar to maintain the proper shank striking face position in the rock drill.
Application:
Tapered Drill rod is also called the Hexagonal Drill Rod.
The rod is used for rock drilling, blast holes and other drilling situations, including quarries, coal mines, traffic and other construction.
Medium hard to hard and abrasive rock formations.
Advantage:
High performance, cost-effective.
Package:
Wooden case.
Technology:
The production has formed a large-scale, assembly-line operation, and each process strictly controls the quality.
Company Profile:
Hebei Minetech Machinery Technology Co, Ltd. is an joint venture enterprise with Europe Partner, which is located in Shijiazhuang City, Hebei Province,China. Our company is specialized in manufacturing and exporting of mining machinery, such as hydraulic and pneumatic drill machine, roof bolter and drilling consumption, like drill bit and drill rod with own factory in Shijiazhuang City.
With our rich expenience for over a decade and with professional engineers andsales team, we focus on providing complete solutions for mining machinery.
