Product Details:
|
| Product Name: | Pneumatic Rock Drill | Model No: | YT 27 |
|---|---|---|---|
| Weight: | 27kgs | Size: | 668 X 248 X 202mm |
| Drilling Depth: | 5m | Warranty: | 1 Year |
| Color: | Blue | Usage: | Ore,mining Used,Rock Drilling |
| Power Type: | Pneumatic,Air Compressor And Electric | Type: | Rotary Drilling Rig |
| High Light: | 5m Rock Drilling Machine,YT27 Rock Drilling Machine,Air Leg pneumatic drill jackhammer |
||

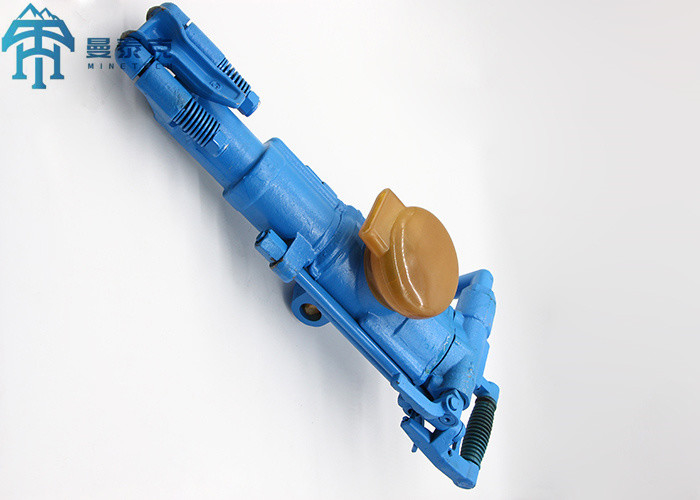

Pneumatic Portable Jack Hammer With Air Leg Rock Drill Machine
Description:
Pneumatic rock drill is a kind of high efficient drilling machinery. It is widely used in rock drivage and various blasting hole drilling in the drilling operation, is mine, railway, traffic, water conservancy construction regarding the project of the important tools
Applications:
YT series pneumatic rock drill for drilling in the hard rock horizontal and inclined direction hole, it can also be up drilling anchor hole, hole is Φ 35 ~ 45 mm in diameter, and effective drilling depth of 5 meters. It may also working for roof bolting holes. The rock drill played an important role in mining, quarrying and tunneling projects.
Specification:
|
Weight (kg) |
27 |
|
L×W×H (mm) |
668×248×202 |
|
Air consumption* (l/s) |
≤57 |
|
Air hose dia (mm) |
25 |
|
Impact frequency* (Hz) |
≥39 |
|
Bit size (mm) |
34-42 |
|
Drilling depth (m) |
5 |
|
Shank (hex. xL) (mm) |
22x108 |
|
FY250 Line Oiler Specifications: |
|
|
Capacity (L) |
0.25 |
|
Weight (kg) |
1.2 |
Advantage:
With light weight, high drilling speed, low gas consumption, small vibration, easy to operate, low failure rate
