Forging Processing 659x248x205 mm Hand Held Rock Drilling Machine with 34-45mm Drilling Hole Diameter

Forging Processing 659x248x205 mm Hand Held Rock Drilling Machine with 34-45mm Drilling Hole Diameter
Forging Processing 659x248x205 mm Hand Held Rock Drilling Machine with 34-45mm Drilling Hole Diameter
Forging Processing 659x248x205 mm Hand Held Rock Drilling Machine with 34-45mm Drilling Hole Diameter Forging Processing 659x248x205 mm Hand Held Rock Drilling Machine with 34-45mm Drilling Hole Diameter

Large Image :  Forging Processing 659x248x205 mm Hand Held Rock Drilling Machine with 34-45mm Drilling Hole Diameter

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO 9001
Model Number: YT29 Rock Drilling Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $3-$300
Packaging Details: wooden case
Delivery Time: 10-15 days
Payment Terms: Western Union,T/T,MoneyGram
Supply Ability: 1000 pieces per month
Contact Now

Forging Processing 659x248x205 mm Hand Held Rock Drilling Machine with 34-45mm Drilling Hole Diameter

Description
Product Name: Rock Drilling Machine Key Word: Yt29 Hand Held Rock Drilling Equipment
Weight: 27kgs Size: 659 X 248 X 205 Mm
Drilling Hole Diameter: 34 - 45mm Drilling Hole: 5m
Color: Request Usage: Ore,mining Used,Rock Drilling
Power Type: Pneumatic,Air Compressor And Electric Package: Standard
Highlight:

YT29A hand held rock drilling equipment

,

5m hand held rock drilling equipment

,

Pneumatic yt29a rock drill

Forging Processing 5m Hand Held Rock Drilling Machine YT29 Model

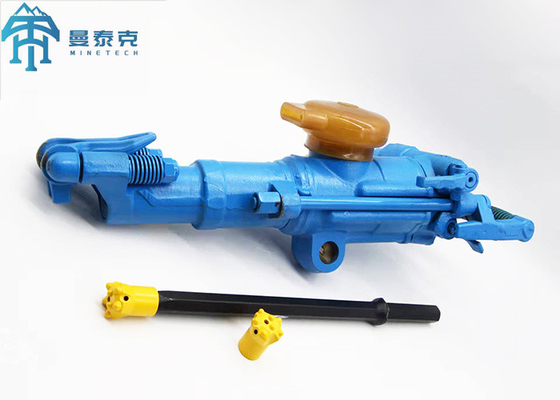

YT29 Rock Drilling Machine Description
Pneumatic rock drill is a high efficiency air leg rock drill machine. When matched with Model FY250 Oil reservoir and Model FT160A or FT160B Air-leg, it is suitable for wet drilling under various rock conditions.
YT29 Rock Drilling Machine Applications
Used for blasting holes and other drilling works in quarries, railway construction, water conservancy construction, and national defense project facilities.
YT29 Rock Drilling Machine Specifications
YT29A AIR LEG ROCK DRILL
Weight 27 kg
External Dimensions (L x W x H) 659 x 248 x 205 mm
Piston Diameter 82 mm
Piston Structure Stroke 60 mm
Working Air Pressure 0.4~0.63 MPa
Impact Frequency ≥39 Hz
Impact Energy ≥78 J
Air Consumption ≤88 L/s
Rotation Torque ≥20 N.m
Water Pressure 0.3~0.48 MPa
Air Pipe Inner Diameter 25 mm
Water Pipe Inner Diameter 13 mm
Drilling Hole Diameter 34~45 mm
Drilling Hole Depth 5 m
Working Temperature -30~45℃
Shank Size H22x108±1 mm
FY250 MODEL OIL LUBRICATOR
Weight 1.2 kg
Oil Capacity 0.25 L
Model FT160A FT160B FT160C FT170
Weight 17 kg 16 kg 18 kg 18 kg
Length 1668 mm 1428 mm 1820 mm 1668 mm
Propulsion Stroke 1338 mm 1098 mm 1490 mm 1338 mm
Cylinder Inner Diameter 65 mm 65 mm 65 mm 67 mm
YT29 Rock Drilling Machine Advantages
  • Adopts the latest designing technology
  • High speed operation with low failure rate
  • Durable wearing parts
  • Low noise operation
  • Lightweight design
  • Energy efficient and environmentally sound
Target Markets
Products are exported to more than thirty countries and regions, including:
  • Southeast Asia
  • United States
  • Germany
  • Britain
  • South Africa
  • Poland
  • Russia
  • Middle Asia
  • South America
Company Profile
Hebei Minetech Machinery Technology Co, Ltd. is located in Hebei province of China. Our company is a professional production and export tapered and thread rod, chisel and button bit and other mining drilling tools enterprises. With our rich experience for over a decade and with professional engineers and sales team, we focus on providing complete solutions for mining machinery.
