Tungsten Carbide Rock Drilling Bit with R32 T38 T45 T51 Thread for Hydraulic Drilling Jumbo in Ballistic Spherical Semi-Ballistic Design

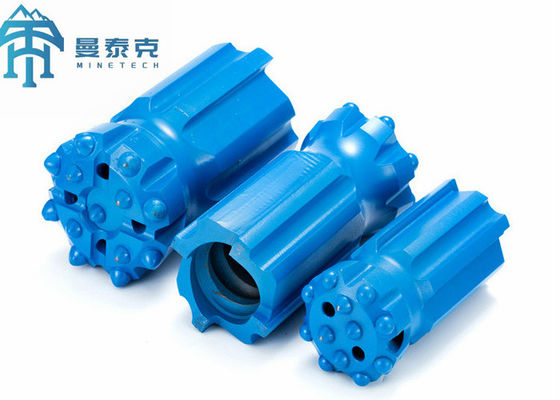

Large Image : Tungsten Carbide Rock Drilling Bit with R32 T38 T45 T51 Thread for Hydraulic Drilling Jumbo in Ballistic Spherical Semi-Ballistic Design

Product Details:

Place of Origin:	CHINA
Brand Name:	MTH
Certification:	ISO9001
Model Number:	button bit

Payment & Shipping Terms:

Minimum Order Quantity:	5 Piece
Price:	$3-$300
Packaging Details:	Wooden Box
Delivery Time:	20-30 days
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	20000 pieces per month

Contact Now

Tungsten Carbide Rock Drilling Bit with R32 T38 T45 T51 Thread for Hydraulic Drilling Jumbo in Ballistic Spherical Semi-Ballistic Design

Description

Name:	Rock Drilling Bit	Diameter:	45mm ~ 127mm
Color:	Blue, Black,yellow And So On.	Thread:	R32 T38 T45 T51
Machine Type:	Drilling Tool	Usage:	Mining,construction And So On
Packing:	Plastic Box O Wooden Box	Weight:	1.1kg-7.5kg
Materiales:	Tungsten Carbide	Carbide Shape:	Ballistic,spherical,semi-ballistic
Highlight:	r32 button bit , 45mm r32 button bit , r32 button drill bits

Construction Rock Drilling T38 / R32 Button Bit 45mm - 127mm

R32 T38 T45 T51 Thread Mining Drill Bit

Product Information

Threaded drill bits designed for hydraulic drilling jumbos, ideal for crushing rock in tunnel construction, large-scale mines (both open and underground), and large section tunnel advances in metal mines.
Manufactured from high-quality alloy steel bar and tungsten carbide with Atlas-style heat treatment. Available in R32, R38, T45, T51 and other thread types with head diameters ranging from 45mm to 127mm.
Features specially developed sharp ball teeth for hard and medium-hard rock, offering excellent wear resistance and driving speed. Round button variants provide superior abrasion and impact resistance for hard rock applications.

Specifications

Comprehensive range of button bits with the following specifications:

Thread Type	Diameter (mm)	Tip Size (mm)	Flushing Holes	Weight (kg)
R32	45	3×8	3	1.1
R32	64	3×10,1×10	3	2.2
R32	76	4×11,1×11	4	3.5
T38	64	3×11	3	1.8
T38	76	4×11	2	2.4
T38	89	4×13	2	3.3
T45	70	4×11	2	2.4
T45	76	4×11	2	2.6
T45	89	4×13	2	4.6
T45	102	5×14	2	5.0
T51	89	4×13	2	5.3
T51	102	4×14	2	7.3
T51	115	6×14	2	9.8
T51	127	8×14	2	12.0

Product Images

Company Profile

Hebei Minetech Machinery Technology Co, Ltd is a joint venture enterprise with European partners, located in Shijiazhuang City, Hebei Province, China. We specialize in manufacturing and exporting mining machinery including hydraulic and pneumatic drill machines, roof bolters, and drilling consumables like drill bits and rods.

With over a decade of experience and a team of professional engineers and sales staff, we provide complete solutions for mining machinery. Our products are exported to more than thirty countries including Southeast Asia, the United States, Germany, Britain, South Africa, Poland, Russia, Middle Asia, and South America, establishing a strong international reputation.
