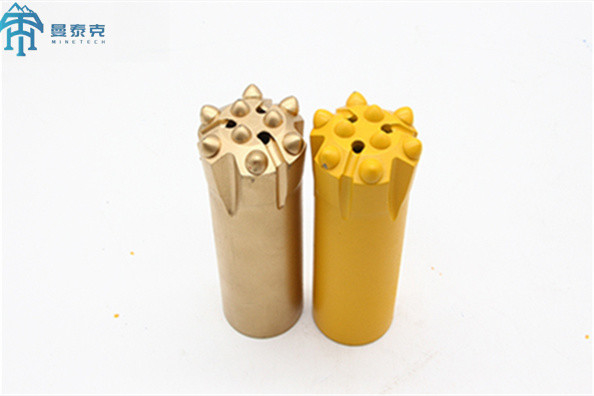

Button R32 51mm Rock Drilling Bit Tungsten Carbide Thread

Button R32 51mm Rock Drilling Bit Tungsten Carbide Thread
Button R32 51mm Rock Drilling Bit Tungsten Carbide Thread

Large Image :  Button R32 51mm Rock Drilling Bit Tungsten Carbide Thread

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO9001
Model Number: Thread drill bit
Payment & Shipping Terms:
Minimum Order Quantity: 5 Piece
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: 20-30 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 20000 pieces per month

Button R32 51mm Rock Drilling Bit Tungsten Carbide Thread

Description
Name: Threaded Drill Bits Diameter: 51mm
Thread: R32 Buttons: 9 Buttons
Weight: 1.5kg Color: Blue, Black,yellow And So On.
Usage: Mining,construction And So On Materiales: Tungsten Carbide
Packing: Plastic Box O Wooden Box Application: Construction Works, Energy, Mining And Tunneling
Highlight:

r32 button bits rock drilling

,

51mm rock drilling bit

,

tungsten carbide thread rock drilling bit

Button Bit R32 51mm Tungsten carbide Thread drill bit Rock Drilling Bit





Product Information:

Product name Thread button mining bit
Type Thread rock drill bits with hardness carbide buttons
Application Mining, Quarring
material High quality steel and high quality alloy carbide
Diamater 45mm,48mm,51mm,64mm,76mm,89mm,102mm,115mm,140mm,165mm
Thread type R25,R32,T38,T45,T51
Face shape flat shape and drop-in-center shape
button shape domed and parabolic
body type normal and retrac



Specifications:

R32 Button bits, normal skirt
Diameter T.C buttons Flushing hole Angle Weight
mm inch Gauge x mm Front x mm Side Front Gauge Kg
45 1 3/4 6x9 3x8 - 3 40° 1.1
48 1 7/8 6x10 3x9 - 3 30° 1.2
51 2 6x10 3x9 - 3 30° 1.4
64 2 1/2 6x11 3x10, 1x10 - 3 35° 2.2
64 2 1/2 8x10 4x10 - 2 40° 2.2
76 3 8x11 4x11,1x11 1 4 35° 3.5



Advantages:

Compared with the oversea brands, our advantages are bellowing:

1. High quality raw materil: TIMKEN,OVAKO and other world famous brand suppliers.

2. Automatic production line ensure the quality stability

3. Different configurations of designs and buttons makes our button bit more adaptable to different types of ground conditions

4. Military grade requirements of heat-treatment and hot-insertionprocessing procedureguarantee durability of the bits.

5. Our products can match over 95% against the original products



Company Profile:

Hebei Minetech Machinery Technology Co, Ltd is an joint venture enterprise with Europe Partner, which is located in Shijiazhuang City, Hebei Province, China. Our company is specialized in manufacturing and exporting of mining machinery, such as hydraulic and pneumatic drill machine, roof bolter and drilling consumption, like drill bit and drill rod with own factory in Shijiazhuang City.



With our rich expenience for over a decade and with professional engineers andsales team, we focus on providing complete solutions for mining machinery.


Target markets is gradually shifted from domestic market to international market, products are exported to more than thirty countries and regions, including Southeast Asia, the United States, Germany, Britain, South Africa, Poland, Russia, Middle Asia, South America and so on, and established a good brand and reputation international market.
