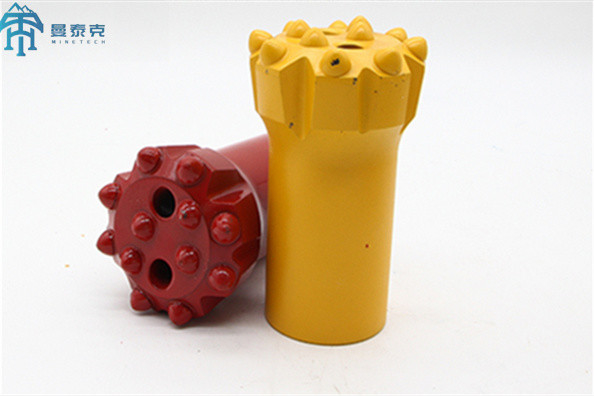

Top Hammer Drill St58 102mm Thread Button Bit For Mining Rock

Top Hammer Drill St58 102mm Thread Button Bit For Mining Rock
Top Hammer Drill St58 102mm Thread Button Bit For Mining Rock

Large Image :  Top Hammer Drill St58 102mm Thread Button Bit For Mining Rock

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO 9001
Model Number: ST58 102mm
Payment & Shipping Terms:
Minimum Order Quantity: 5 pcs
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 10 -15 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20000 pcs per month

Top Hammer Drill St58 102mm Thread Button Bit For Mining Rock

Description
Product Name: Thread Button Bit Diameter: 102mm
Thread: ST58 Buttons: 14 Buttons
Weight: 6 Kgs Material: Carbon Steel
Package: Plastic Box O Wooden Box Applicable Industries: Energy & Mining
Color: Blue, Black,yellow Application: Construction Works, Energy, Mining And Tunneling
Highlight:

top hammer drill rock drilling bit

,

st58 thread button bit

,

102mm thread button bit

Factory Price top hammer drill bit ST58 102mm thread button bit mining rock drill bit Rock Drilling Bit





Description:

Thread button bits are made by high quality alloy steel bar and tungsten carbides. Under the process of heat treatment.

Minetech’s drilling tools are tested in various working conditions. What’s more, Minetech can supply customized thread button bits upon receiving of different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.



A comprehensive range of various button bits shown as below:



ST58 Button bits, normal skirt

Diameter

T.C buttons

Flushing hole

Angle

Weight

mm

inch

Front x mm

Gauge x mm

Side

Front

Gauge

Kg

89

3 1/2

6x12

8x12

1

2

35°

4.1

89

3 1/2

6x13

8x13

1

2

35°

4.1

89

3 1/2

4x13,1x13

8x13

-

4

35°

4.1

89

3 1/2

4x12,2x12

8x12

-

4

35°

4.1

95

3 3/4

4x13,1x13

8x14

-

4

35°

4.6

102

4

6x14

8x14

-

2

35°

6

102

4

6x13

8x16

1

2

35°

6

115

4.5

6x14

8x16

-

2

35°

7


Applications:

The threaded drill bit are equipped with the hydraulic drilling jumbo and used for crush rock ,and it is widely used in tunnel
construction, large scale mine(open and underground )and large section tunnel advance in metal mine.



Packaging & Delivery:

Packaging Details: Carton or box, packing according to customer's requirement.

Port: Tianjin/Qingdao/Shanghai.



Company Profile:

Hebei Minetech Machinery Technology Co, Ltd is an joint venture enterprise with Europe Partner, which is located in Shijiazhuang City, Hebei Province, China. Our company is specialized in manufacturing and exporting of mining machinery, such as hydraulic and pneumatic drill machine, roof bolter and drilling consumption, like drill bit and drill rod with own factory in Shijiazhuang City.



With our rich expenience for over a decade and with professional engineers andsales team, we focus on providing complete solutions for mining machinery.


Target markets is gradually shifted from domestic market to international market, products are exported to more than thirty countries and regions, including Southeast Asia, the United States, Germany, Britain, South Africa, Poland, Russia, Middle Asia, South America and so on, and established a good brand and reputation international market.

Top Hammer Drill St58 102mm Thread Button Bit For Mining Rock 0Top Hammer Drill St58 102mm Thread Button Bit For Mining Rock 1Top Hammer Drill St58 102mm Thread Button Bit For Mining Rock 2Top Hammer Drill St58 102mm Thread Button Bit For Mining Rock 3Top Hammer Drill St58 102mm Thread Button Bit For Mining Rock 4Top Hammer Drill St58 102mm Thread Button Bit For Mining Rock 5

Top Hammer Drill St58 102mm Thread Button Bit For Mining Rock 6Top Hammer Drill St58 102mm Thread Button Bit For Mining Rock 7
