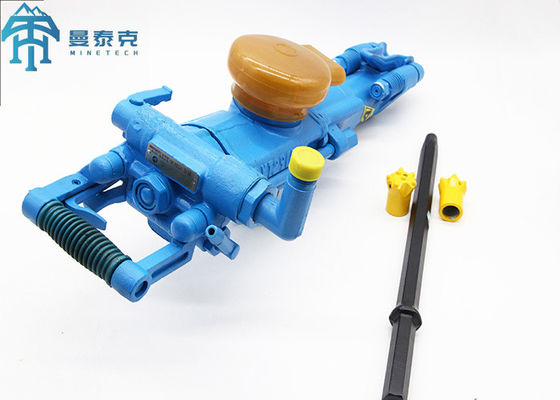

YT28 Pneumatic Rock Drilling Machine Hand Held with H22 Shank for Medium-Hard Rock and Small Vibration

YT28 Pneumatic Rock Drilling Machine Hand Held with H22 Shank for Medium-Hard Rock and Small Vibration
YT28 Pneumatic Rock Drilling Machine Hand Held with H22 Shank for Medium-Hard Rock and Small Vibration
YT28 Pneumatic Rock Drilling Machine Hand Held with H22 Shank for Medium-Hard Rock and Small Vibration YT28 Pneumatic Rock Drilling Machine Hand Held with H22 Shank for Medium-Hard Rock and Small Vibration

Large Image :  YT28 Pneumatic Rock Drilling Machine Hand Held with H22 Shank for Medium-Hard Rock and Small Vibration

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO 9001
Model Number: YT28
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $3-$300
Packaging Details: wooden case
Delivery Time: 10-15 days
Payment Terms: Western Union,T/T,MoneyGram
Supply Ability: 1000 pieces per month
Contact Now

YT28 Pneumatic Rock Drilling Machine Hand Held with H22 Shank for Medium-Hard Rock and Small Vibration

Description
Product Name: Pneumatic Rock Drill Model No: YT 28
Weight: 26 Kgs Length: 661 Mm
Drilling Depth: 5 M Shank: H22 * 108 Mm
Color: Customized Usage: Ore,mining Used,rock Drilling
Power Type: Pneumatic,air Compressor And Electric Type: Rotary Drilling Rig
Highlight:

pneumatic jackleg rock drilling machine

,

rock drilling machine yt28

,

hand held pneumatic rock drill machine

YT28 Rock Drilling Machine Hand Held Pneumatic Jackleg
Product Overview
The YT28 air-leg rock drill is a high-efficiency pneumatic rock drilling machine designed for tunneling, mining, and various rock drilling operations. This essential construction equipment is widely used in railway, highway, metallurgy, coal, water conservancy, hydropower, and national defense projects.
Applications
Suitable for drilling horizontal or inclined holes in medium-hard to hard rocks (f=8-18). Capable of drilling vertically upward for anchor holes on top plates, making it versatile for various rock works.
Technical Specifications
Parameter Value
Weight (kg) 28
Length (mm) 661
Air consumption (l/s) ≤81
Working pressure (Mpa) 0.4-0.63
Impact frequency (Hz) ≥37
Bit size (mm) 34-45
Drilling depth (m) 5
Shank (hex. xL) (mm) 22x108
FY200 Line Oiler Specifications
Capacity (ml) 102
Weight (kg) 1.2
Key Advantages
  • Lightweight design for easy handling
  • High drilling speed for improved productivity
  • Low gas consumption for cost efficiency
  • Minimal vibration for operator comfort
  • Simple operation with low failure rate
Product Images
YT28 Pneumatic Rock Drilling Machine Hand Held with H22 Shank for Medium-Hard Rock and Small Vibration 0
YT28 Pneumatic Rock Drilling Machine Hand Held with H22 Shank for Medium-Hard Rock and Small Vibration 1
YT28 Pneumatic Rock Drilling Machine Hand Held with H22 Shank for Medium-Hard Rock and Small Vibration 2
YT28 Pneumatic Rock Drilling Machine Hand Held with H22 Shank for Medium-Hard Rock and Small Vibration 3
YT28 Pneumatic Rock Drilling Machine Hand Held with H22 Shank for Medium-Hard Rock and Small Vibration 4
