YT24 Air Leg Rock Drilling Machine for Metallurgy Coal and Railway Applications

YT24 Air Leg Rock Drilling Machine for Metallurgy Coal and Railway Applications
YT24 Air Leg Rock Drilling Machine for Metallurgy Coal and Railway Applications YT24 Air Leg Rock Drilling Machine for Metallurgy Coal and Railway Applications YT24 Air Leg Rock Drilling Machine for Metallurgy Coal and Railway Applications YT24 Air Leg Rock Drilling Machine for Metallurgy Coal and Railway Applications YT24 Air Leg Rock Drilling Machine for Metallurgy Coal and Railway Applications

Large Image :  YT24 Air Leg Rock Drilling Machine for Metallurgy Coal and Railway Applications

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO 9001
Model Number: YT24
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $3-$300
Packaging Details: Wooden case
Delivery Time: 7-15 woring days
Payment Terms: T/T,Western Union,L/C
Supply Ability: 2000 sets per week

YT24 Air Leg Rock Drilling Machine for Metallurgy Coal and Railway Applications

Description
Model: YT 24 Key Word: Rock Drilling Machine
Name: Rock Drill Application: It Is Best Suited For Use In Medium And Small Mines.
Weight: 24kg Shank: 22×108±1
Length: 668mm Perforating Depth: 5m
Piston Stroke: 60mm Working Air Pressure: 0.4~0.63 MPa
Gas Consumption: ≤ 66.7 L/s Advantage: Light Weight, Low Noise, High Efficiency
Highlight:

tunneling pneumatic rock drill machine

,

yt24 pneumatic rock drill machine

,

mine tunneling rock drilling machine

Mine Tunneling Pneumatic Rock Drilling Machine YT24 Air Leg 24kg
Product Information

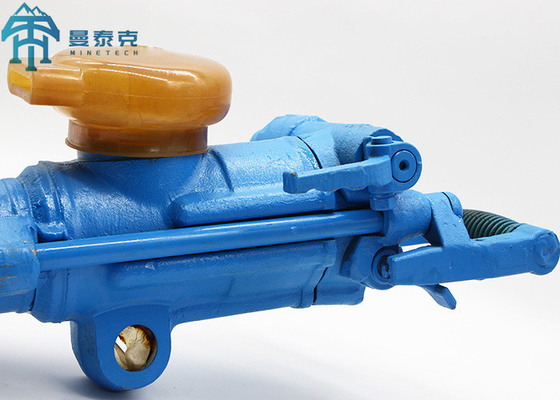

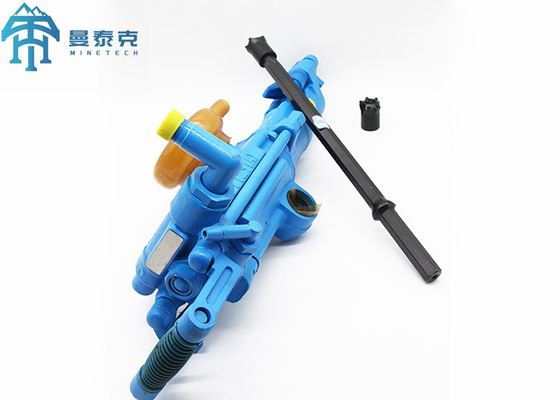

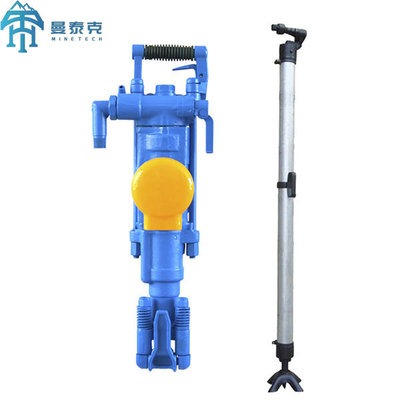

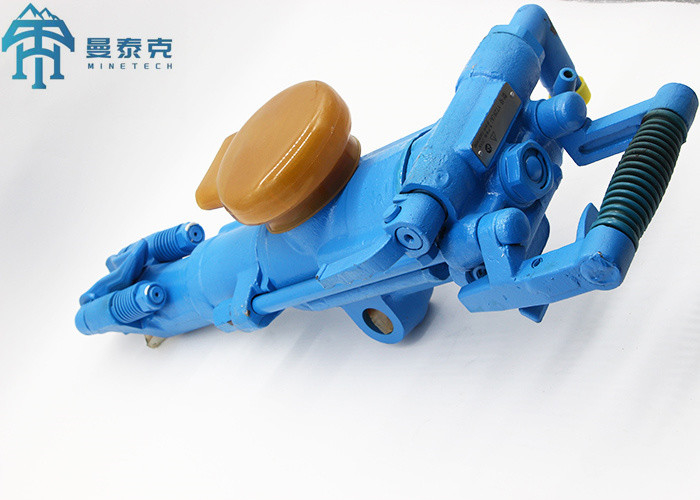

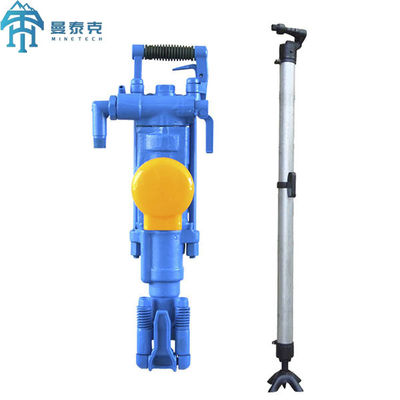

The YT24 air-legged rock drill is a new type of high-efficiency rock drilling machine. It is widely used for drilling blast holes in mine tunneling and various rock drilling operations, and is an indispensable tool for metallurgy, coal, railway, transportation, water conservancy construction and national defense rock works.
Specifications
Parameter Name Unit Parameter Value
Weight kg ≈24
Length mm 668
Cylinder diameter mm 80
Piston stroke mm 60
Gas consumption L/s ≤66.7
Drilling frequency Hz ≥31
Impact energy J ≥75.5
Borehole speed mm/min ≥475
Borehole diameter mm Φ34-42
Perforating depth m 5
Shank mm 22×108±1
Features
  • Light weight
  • Low noise
  • High efficiency
  • Good economic results
Applications
Metallurgy, coal, railway, transportation, water conservancy construction and national defense rock works
YT24 Air Leg Rock Drilling Machine for Metallurgy Coal and Railway Applications 0 YT24 Air Leg Rock Drilling Machine for Metallurgy Coal and Railway Applications 1 YT24 Air Leg Rock Drilling Machine for Metallurgy Coal and Railway Applications 2
Company Profile
Hebei Minetech Machinery Technology Co, Ltd is a joint venture enterprise with Europe Partner, located in Shijiazhuang City, Hebei Province, China. Our company specializes in manufacturing and exporting mining machinery, including hydraulic and pneumatic drill machines, roof bolters, and drilling consumables like drill bits and drill rods. With our own factory in Shijiazhuang City and over a decade of experience, we focus on providing complete solutions for mining machinery with our team of professional engineers and sales staff.

Our target markets have gradually shifted from domestic to international, with products exported to more than thirty countries and regions including Southeast Asia, the United States, Germany, Britain, South Africa, Poland, Russia, Middle Asia, and South America. We have established a strong brand and reputation in international markets.
YT24 Air Leg Rock Drilling Machine for Metallurgy Coal and Railway Applications 3 YT24 Air Leg Rock Drilling Machine for Metallurgy Coal and Railway Applications 4
