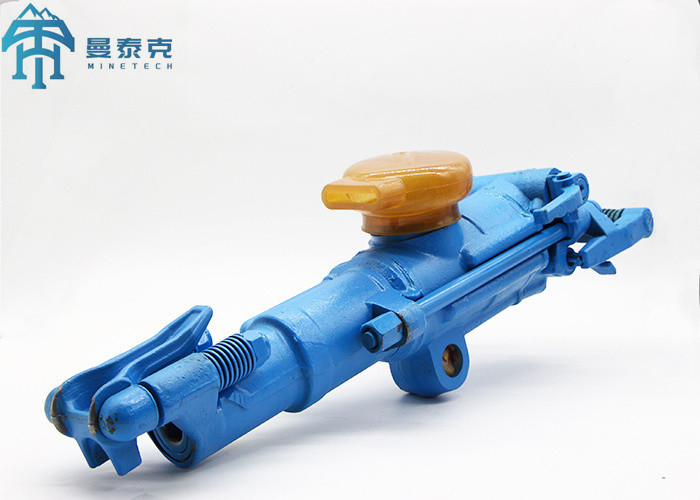

Underground Air Rock Drilling Machine Yt29a For Manual Mining

Underground Air Rock Drilling Machine Yt29a For Manual Mining
Underground Air Rock Drilling Machine Yt29a For Manual Mining

Large Image :  Underground Air Rock Drilling Machine Yt29a For Manual Mining

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO 9001
Model Number: YT29A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 10-15 days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 1000 pieces per month
Contact Now

Underground Air Rock Drilling Machine Yt29a For Manual Mining

Description
Product Name: Pneumatic Rock Drill Model No: YT 29A
Weight: 26.5kgs Size: 659 * 248 * 205 Mm
Drilling Hole Diameter: 34 - 45mm Drilling Depth: Max 5m
Working Pressure: 0.4-0.63 Mpa Color: Request
Usage: Ore,mining Used,Rock Drilling Power Type: Pneumatic,Air Compressor And Electric
Highlight:

underground air rock drilling machine

,

rock drilling machine yt29a

,

manual mining hand rock drilling machine

YT29A Underground Air Rock Drill For Manual Mining Rock Drilling Machine





Description:



YT29A is a kind of high efficiency air leg rock drill machine.
It can be matched with the FT160A air - leg or FT160C long air - leg to use in the basis of the width of rock.


Applications:



It's widely used for blasting holes and other drilling works in a quarries, railway constructions, water conservancy constructions and national defence project facilities.



Specification:



YT29A AIR LEG ROCK DRILL

Weight (kg)

26.5

External Dimensions (mm)

659x248x205

Piston Diameter (mm)

82

Piston Structure Stroke (mm)

60

Working Air Pressure (MPa)

0.4~0.63

Impact Frequency (Hz)

≥39

Impact energy (J)

≥78

Air Consumption (L/s)

≤88

Rotation Torque (N.m)

≥20

Water Pressure (MPa)

0.3~0.48

Air Pipe Inner Diameter (mm)

25

Water Pipe Inner Diameter (mm)

13

Drilling Hole Diameter (mm)

34~45

Drilling Hole Depth (m)

5

Working Temperature (℃)

-30~45

Shank Size (mm)

H22x108 ±1

FY250 MODEL OIL LUBRICATOR

Weight (Kg)

1.2

Oil Capacity (L)

0.25



FT160A

FT160B

FT160C

FT170

Weight (kg)

17

16

18

18

Length (mm)

1668

1428

1820

1668

Propulsion Stroke (mm)

1338

1098

1490

1338

Cylinder Inner Diameter (mm)

65

65

65

67



Advantage:



Save energy and high efficiency;
Strong impact energy;
Easily handling;
Low noise.
