YT29A High Efficiency Energy Saving Pneumatic Rock Drill with Strong Impact Energy for Underground Mining

YT29A High Efficiency Energy Saving Pneumatic Rock Drill with Strong Impact Energy for Underground Mining
YT29A High Efficiency Energy Saving Pneumatic Rock Drill with Strong Impact Energy for Underground Mining
YT29A High Efficiency Energy Saving Pneumatic Rock Drill with Strong Impact Energy for Underground Mining YT29A High Efficiency Energy Saving Pneumatic Rock Drill with Strong Impact Energy for Underground Mining

Large Image :  YT29A High Efficiency Energy Saving Pneumatic Rock Drill with Strong Impact Energy for Underground Mining

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO 9001
Model Number: YT29A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $3-$300
Packaging Details: wooden case
Delivery Time: 10-15 days
Payment Terms: Western Union,T/T,MoneyGram
Supply Ability: 1000 pieces per month
Contact Now

YT29A High Efficiency Energy Saving Pneumatic Rock Drill with Strong Impact Energy for Underground Mining

Description
Product Name: Pneumatic Rock Drill Model No: YT 29A
Weight: 26.5kgs Size: 659 * 248 * 205 Mm
Drilling Hole Diameter: 34 - 45mm Drilling Depth: Max 5m
Working Pressure: 0.4-0.63 Mpa Color: Request
Usage: Ore,mining Used,Rock Drilling Power Type: Pneumatic,Air Compressor And Electric
Highlight:

underground air rock drilling machine

,

rock drilling machine yt29a

,

manual mining hand rock drilling machine

YT29A Underground Air Rock Drill For Manual Mining Rock Drilling Machine
YT29A is a high efficiency air leg rock drill machine that can be matched with FT160A air-leg or FT160C long air-leg based on rock width requirements.
Applications
Widely used for blasting holes and drilling operations in quarries, railway constructions, water conservancy projects, and national defense facilities.
Specifications
YT29A AIR LEG ROCK DRILL
Weight (kg) 26.5
External Dimensions (mm) 659×248×205
Piston Diameter (mm) 82
Piston Structure Stroke (mm) 60
Working Air Pressure (MPa) 0.4~0.63
Impact Frequency (Hz) ≥39
Impact energy (J) ≥78
Air Consumption (L/s) ≤88
Rotation Torque (N.m) ≥20
Water Pressure (MPa) 0.3~0.48
Air Pipe Inner Diameter (mm) 25
Water Pipe Inner Diameter (mm) 13
Drilling Hole Diameter (mm) 34~45
Drilling Hole Depth (m) 5
Working Temperature (℃) -30~45
Shank Size (mm) H22×108 ±1
FY250 MODEL OIL LUBRICATOR
Weight (Kg) 1.2
Oil Capacity (L) 0.25
Model FT160A FT160B FT160C FT170
Weight (kg) 17 16 18 18
Length (mm) 1668 1428 1820 1668
Propulsion Stroke (mm) 1338 1098 1490 1338
Cylinder Inner Diameter (mm) 65 65 65 67
Key Advantages
  • Energy efficient with high performance
  • Powerful impact energy
  • Easy to operate
  • Low noise operation

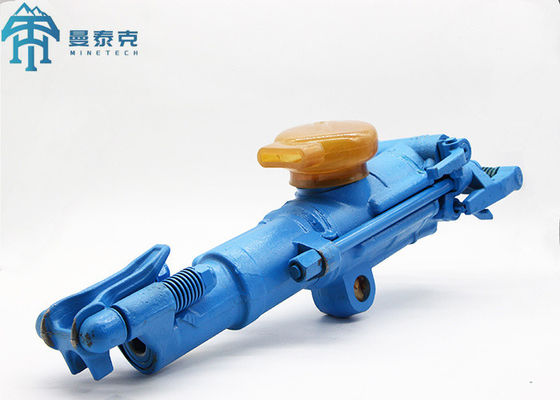

Product Images
YT29A High Efficiency Energy Saving Pneumatic Rock Drill with Strong Impact Energy for Underground Mining 0
YT29A High Efficiency Energy Saving Pneumatic Rock Drill with Strong Impact Energy for Underground Mining 1
YT29A High Efficiency Energy Saving Pneumatic Rock Drill with Strong Impact Energy for Underground Mining 2
YT29A High Efficiency Energy Saving Pneumatic Rock Drill with Strong Impact Energy for Underground Mining 3
YT29A High Efficiency Energy Saving Pneumatic Rock Drill with Strong Impact Energy for Underground Mining 4
