Forging Mining Rock Drilling Machine Yt27 Pneumatic Jack Hammer

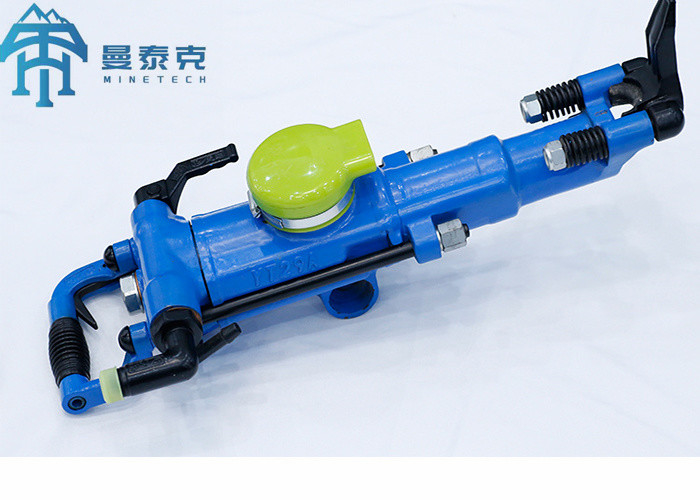

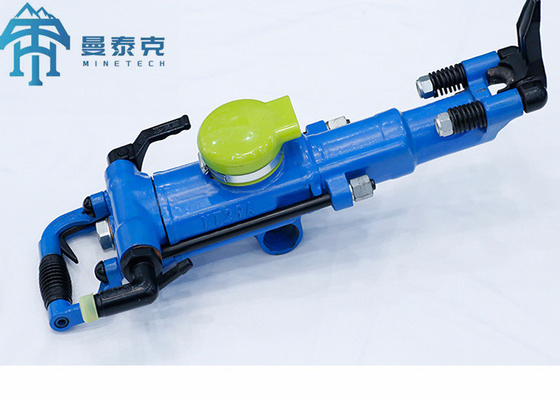

Large Image : Forging Mining Rock Drilling Machine Yt27 Pneumatic Jack Hammer

Product Details:

Place of Origin:	CHINA
Brand Name:	MTH
Certification:	ISO 9001
Model Number:	YT27

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	wooden case
Delivery Time:	10-15 days
Payment Terms:	Western Union, T/T, MoneyGram
Supply Ability:	1000 pieces per month

Contact Now

Forging Mining Rock Drilling Machine Yt27 Pneumatic Jack Hammer

Description

Product Name:	Rock Drilling Machine	Key Word:	YT27 Pneumatic Rock Drill
Weight:	27kgs	Size:	659 * 248 * 202 Mm
Drilling Hole Diameter:	34 - 45mm	Drilling Depth:	Max 5m
Working Pressure:	0.4-0.63 Mpa	Color:	Customized
Usage:	Ore,mining Used,rock Drilling	Power Type:	Pneumatic,air Compressor And Electric
Highlight:	yt27 mining rock drilling machine , customized mining rock drilling machine , yt27 rock drill mining machinery

Forging Mining Rock Drilling Machine Yt27 Pneumatic Jack Hammer

YT27 Pneumatic Rock Drill Description:

Model YT27 is a highly efficient pusher leg rock drill.
YT27 can be equipped with pusher leg FT160A and FY250 lubricator.

YT27 Pneumatic Rock Drill Applications:

It is mainly used in rock drilling work such as mining and tunneling, or in railway, water conservancy construction project and stone work.

YT27 Pneumatic Rock Drill Specification:

YT27 AIR LEG ROCK DRILL
Weight (kg)	27
External Dimensions (mm)	658x248x202
Cylinder Diameter (mm)	82
Piston Structure Stroke (mm)	60
Working Air Pressure (MPa)	0.4~0.63
Impact Frequency (Hz)	≥40
Impact energy (J)	≥70
Air Consumption (L/s)	≤85
Rotation Torque (N.m)	≥19
Water Pressure (MPa)	0.3
Drilling Hole Diameter (mm)	34~45
Drilling Hole Depth (m)	5
Shank Size (mm)	H22x108 ±1

FY250 MODEL OIL LUBRICATOR
Weight (Kg)	1.2
Oil Capacity (L)	0.25

	FT160A	FT160B	FT160C	FT170
Weight (kg)	17	16	18	18
Length (mm)	1668	1428	1820	1668
Propulsion Stroke (mm)	1338	1098	1490	1338
Cylinder Inner Diameter (mm)	65	65	65	67

YT27 Pneumatic Rock Drill Advantage:

High efficiency ang high reliability;
Safe and easy to operate;
Suitable for all rock formations.
