Pneumatic Yt29a Rock Drilling Machine For Mining Quarrying

Large Image : Pneumatic Yt29a Rock Drilling Machine For Mining Quarrying

Product Details:

Place of Origin:	CHINA
Brand Name:	MTH
Certification:	ISO 9001
Model Number:	YT29A

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	Wooden case
Delivery Time:	7-15 woring days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	2000 sets per week

Contact Now

Pneumatic Yt29a Rock Drilling Machine For Mining Quarrying

Description

Name:	Rock Drilling	Application:	Mining And Quarrying, Tunneling Construction
Advantage:	High Performance,competitive Advantage Products,High-efficiency	Color:	Blue，Black
Model:	YT 24 /27/ 28/ 29A	Machine Type:	Drilling Tools
Power Type:	Air Compressor And Electric	Weight:	27kg
After-sales Service Provided:	Online Support	Key Words:	Rock Drilling Machine
Highlight:	quarrying rock drilling machine , yt29a rock drilling machine , quarrying pneumatic rock drill machine

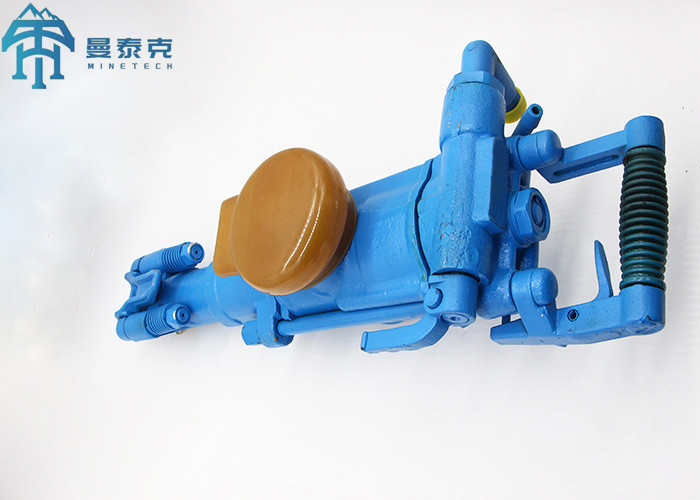

YT29A Pneumatic Mining Rock Tools Rock Drilling Machine

Rock Drilling Machine Product Information:

Pneumatic Machinery has a wide range of pusher leg and stopper rock drills to cover all construction, tunneling and mining applications in different rock formations. They are robust but simply designed, with high impact energy and low air consumption.

The YT29A rock drill is the most rugged, powerful and highly efficient rock drill in the range .It gives improved productivity and drill steel economy and can be used on all rock formation and in all kinds of applications.

Rock Drilling Machine Application:

1.The rock drill is a kind of high efficiency air leg rock drill machinery.
2.It is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and defence project facility.
3.It is suitable for drilling and blasting under various of rocks and any direction angles.
4.Blast hole dia is 34-42mm, drill hole depth is 5m.

PRODUCT SPECIFICATION
The parameter name	Unit	The parameter value
Weight	kg	≈28
Length	mm	661
The cylinder diameter	mm	82
Piston stroke	mm	60
Gas consumption	L/s	≤65
Drilling and frequency	Hz	≥37
Impact energy	J	≥70
borehole speed	mm/min	≥475
The borehole diameter	mm	Φ34-42
Perforating depth	m	5
Shank	mm	22×108±1

Pneumatic Yt29a Rock Drilling Machine For Mining Quarrying 0

Pneumatic Yt29a Rock Drilling Machine For Mining Quarrying 2

Pneumatic Yt29a Rock Drilling Machine For Mining Quarrying 3
