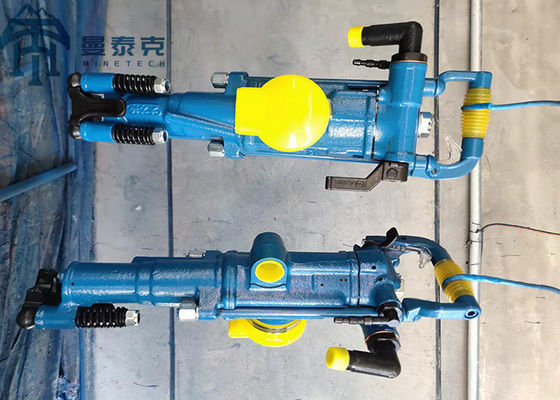

High Efficiency YT28 Pneumatic Rock Drill with Wet Drilling Quick Start and Strong Flushing for 5M Depth

High Efficiency YT28 Pneumatic Rock Drill with Wet Drilling Quick Start and Strong Flushing for 5M Depth
High Efficiency YT28 Pneumatic Rock Drill with Wet Drilling Quick Start and Strong Flushing for 5M Depth High Efficiency YT28 Pneumatic Rock Drill with Wet Drilling Quick Start and Strong Flushing for 5M Depth

Large Image :  High Efficiency YT28 Pneumatic Rock Drill with Wet Drilling Quick Start and Strong Flushing for 5M Depth

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO 9001
Model Number: YT29A
Payment & Shipping Terms:
Minimum Order Quantity: 5 set
Price: $3-$300
Packaging Details: wooden case or carton box
Delivery Time: 10-15 days
Payment Terms: Western Union,T/T,MoneyGram
Supply Ability: 1000 pieces per month

High Efficiency YT28 Pneumatic Rock Drill with Wet Drilling Quick Start and Strong Flushing for 5M Depth

Description
Type: Rotary Drilling Rig Machine Type: Drilling Tools
Weight: 27kg Guarantee: 1YAER
Usage: Ore,mining Used,Rock Drilling Drilling Depth: 5M
Application: Blast Hole Drilling And Breaking,drill Rig Power Type: Pneumatic
Color: Yellow,green,black
Highlight:

5m hand held rock drilling equipment

,

yt28 hand held rock drilling equipment

,

air leg rock drilling machine

High Efficiency Air Leg Hand Held Rock Drilling Equipment YT28
High Efficiency Air Leg Rock Drill Machine
Pneumatic Machinery offers a comprehensive range of pusher leg and stopper rock drills suitable for all construction, tunneling, and mining applications across various rock formations. These robust yet simply designed machines deliver high impact energy with low air consumption.
Applications
The YT28 rock drill is designed for rock drilling, blasting holes, and other drilling operations in quarries, small coal mines, and construction sites.
  • Ideal for wet drilling in medium-hard to hard rock formations
  • Features grouped control mechanism for quick startup with "air on, water on, air off, water off" functionality
  • Energy-efficient design with long-lasting, highly interchangeable parts
  • Distinctive advantages include high efficiency, strong flushing capability, and powerful torque
YT Series Pneumatic Rock Drilling Machine Specifications
Model YT28 YT27 YT29A YT24C TY24
Weight 26kgs 27kgs 26.5kgs 24kgs 24kgs
Length 661mm 668mm 659mm 628mm 678mm
Air pressure 0.4-0.63Mpa 0.4-0.63Mpa 0.4-0.63Mpa 0.4-0.63Mpa 0.4-0.63Mpa
Impact frequency ≧37HZ ≧39HZ ≧39HZ ≧37HZ ≧31HZ
Air consumption ≦81L/s ≦86L/s ≦88L/s ≦80L/s ≦67L/s
Impact energy ≧70J ≧75J ≧78J ≧65J ≧65J
Cylinder*stroke 80mm*60mm 80mm*60mm 82mm*60mm 76mm*60mm 70mm*70mm
Air pipe diameter 25mm 19mm 25mm 25mm 19mm
Shank dimension 22*108mm 22*108mm 22*108mm 22*108mm 22*108mm
Drilling depth 5m 5m 5m 5m 5m
Bit diameter 34-42mm 34-45mm 34-45mm 34-42mm 34-42mm
Additional Models
Model FT160A FT160B FT160C FT170
Weight 17 kg 16 kg 18 kg 18 kg
Length 1668 mm 1428 mm 1820 mm 1668 mm
Propulsion Stroke 1338 mm 1098 mm 1490 mm 1338 mm
Cylinder Inner Diameter 65 mm 65 mm 65 mm 67 mm
Product Images
High Efficiency YT28 Pneumatic Rock Drill with Wet Drilling Quick Start and Strong Flushing for 5M Depth 0 High Efficiency YT28 Pneumatic Rock Drill with Wet Drilling Quick Start and Strong Flushing for 5M Depth 1 High Efficiency YT28 Pneumatic Rock Drill with Wet Drilling Quick Start and Strong Flushing for 5M Depth 2 High Efficiency YT28 Pneumatic Rock Drill with Wet Drilling Quick Start and Strong Flushing for 5M Depth 3 High Efficiency YT28 Pneumatic Rock Drill with Wet Drilling Quick Start and Strong Flushing for 5M Depth 4 High Efficiency YT28 Pneumatic Rock Drill with Wet Drilling Quick Start and Strong Flushing for 5M Depth 5 High Efficiency YT28 Pneumatic Rock Drill with Wet Drilling Quick Start and Strong Flushing for 5M Depth 6 High Efficiency YT28 Pneumatic Rock Drill with Wet Drilling Quick Start and Strong Flushing for 5M Depth 7 High Efficiency YT28 Pneumatic Rock Drill with Wet Drilling Quick Start and Strong Flushing for 5M Depth 8
