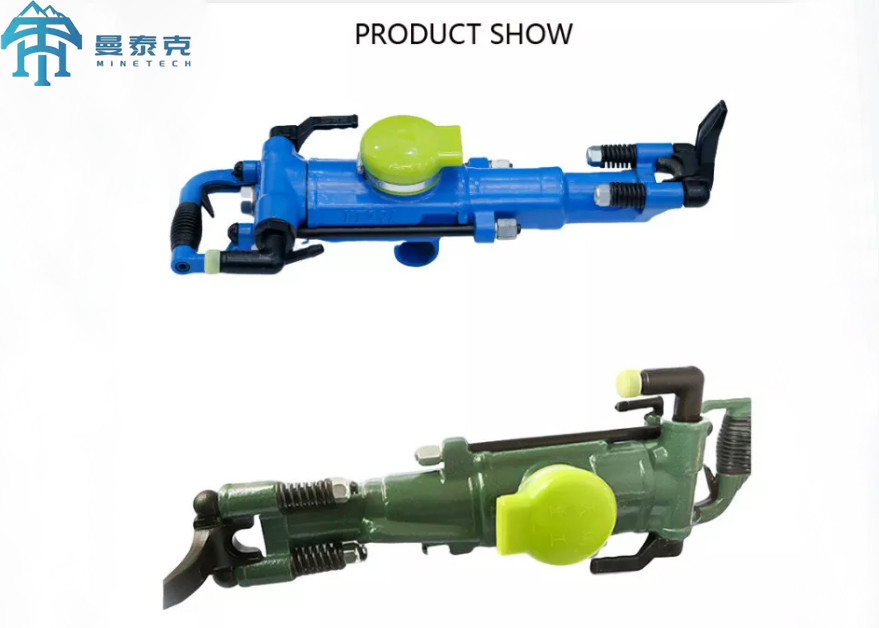

Pneumatic Jack Leg Drilling Machine Rock Yt29a 5m Hand Held

Pneumatic Jack Leg Drilling Machine Rock Yt29a 5m Hand Held
Pneumatic Jack Leg Drilling Machine Rock Yt29a 5m Hand Held

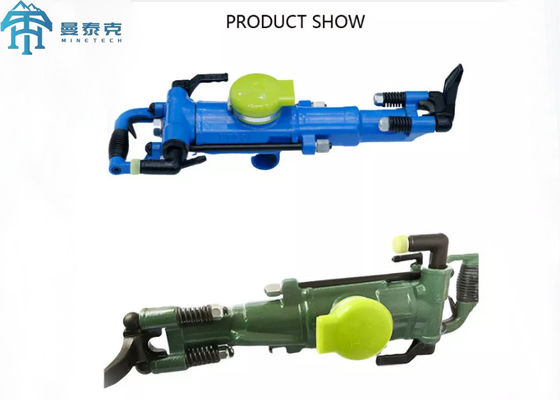

Large Image :  Pneumatic Jack Leg Drilling Machine Rock Yt29a 5m Hand Held

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO 9001
Model Number: YT29A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden case or carton box
Delivery Time: 10-15 days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 1000 pieces per month

Pneumatic Jack Leg Drilling Machine Rock Yt29a 5m Hand Held

Description
Type: YT29A Weight: 26.5kg
Warranty: 1YAER Usage: Ore,mining Used,Rock Drilling
Diameter: 32~45 Mm Power Type: Pneumatic
Machine Type: Drilling Tools Drilling Depth: 5M
Color: Yellow,green,black Application: Blast Hole Drilling And Breaking,drill Rig
Highlight:

pneumatic jack leg drilling machine rock

,

5m drilling machine rock

,

5m rock drilling machine



Pneumatic Jack leg Rock Drill , YT29A 5m Hand Held Rock Drill


Applications:

1.YT29A type pneumatic rock drill for drilling in the hard rock horizontal and inclined direction hole, can also be up drilling anchor hole, hole is Φ 35 ~ 45 mm in diameter, and effective drilling depth of 5 meters.
2.Depending on the roadway cross-section size and operation conditions, the machine can be used FT160A gas legs, long FT160C type gas type, FT160B dispirited legs (metal mines can also be used FT170 gas leg), can also be installed in jumbo or drill the rack to dry and wet drilling.




YT29A AIR LEG ROCK DRILL
Weight27 kg
External Dimensions(L W H)659x248x205 mm
Cylinder Diameter82 mm
Piston Structure Stroke60 mm
Working Air Pressure0.4~0.63 MPa
Impact Frequency≥39 Hz
Impact energy≥78 J
Air Consumption≤88 L/s
Rotation Torque≥20 N.m
Water Pressure0.3~0.48 MPa
Air Pipe Inner Diameter25 mm
Water Pipe Inner Diameter13 mm
Drilling Hole Diameter34~45 mm
Drilling Hole Depth5 m
Working Temperature-30~45℃
Shank SizeH22x108±1 mm































 FT160AFT160BFT160CFT170
Weight17 kg16 kg18 kg18 kg
Length1668 mm1428 mm1820 mm1668 mm
Propulsion Stroke1338 mm1098 mm1490 mm1338 mm
Cylinder Inner Diameter65 mm65 mm65 mm67 mm



Company Profile:

Hebei Minetech Machinery Technology Co, Ltd. is an joint venture enterprise with Europe Partner, which is located in Shijiazhuang City, Hebei Province,China. Our company is specialized in manufacturing and exporting of mining machinery, such as hydraulic and pneumatic drill machine, roof bolter and drilling consumption, like drill bit and drill rod with own factory in Shijiazhuang City.

With our rich expenience for over a decade and with professional engineers andsales team, we focus on providing complete solutions for mining machinery.

Target markets is gradually shifted from domestic market to international market, products are exported to more than thirty countries and regions, including Southeast Asia, the United States, Germany, Britain, South Africa, Poland, Russia, Middle Asia, South America and so on, and established a good brand and reputation international market.

Pneumatic Jack Leg Drilling Machine Rock Yt29a 5m Hand Held 0Pneumatic Jack Leg Drilling Machine Rock Yt29a 5m Hand Held 1Pneumatic Jack Leg Drilling Machine Rock Yt29a 5m Hand Held 2Pneumatic Jack Leg Drilling Machine Rock Yt29a 5m Hand Held 3
Pneumatic Jack Leg Drilling Machine Rock Yt29a 5m Hand Held 4Pneumatic Jack Leg Drilling Machine Rock Yt29a 5m Hand Held 5
Pneumatic Jack Leg Drilling Machine Rock Yt29a 5m Hand Held 6Pneumatic Jack Leg Drilling Machine Rock Yt29a 5m Hand Held 7
Pneumatic Jack Leg Drilling Machine Rock Yt29a 5m Hand Held 8Pneumatic Jack Leg Drilling Machine Rock Yt29a 5m Hand Held 9Pneumatic Jack Leg Drilling Machine Rock Yt29a 5m Hand Held 10
