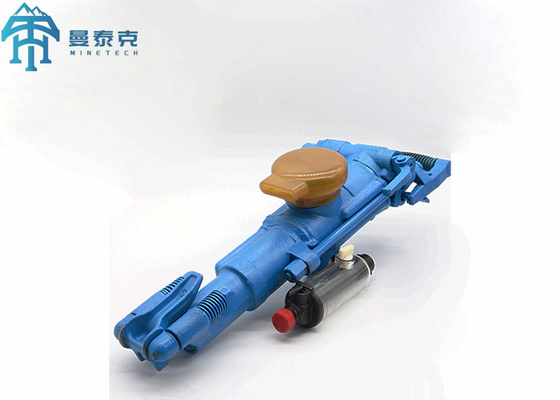

TY24 Handheld Pneumatic Air Leg Drill: Maximum Impact Frequency for Hard Rocks!

TY24 Handheld Pneumatic Air Leg Drill: Maximum Impact Frequency for Hard Rocks!
TY24 Handheld Pneumatic Air Leg Drill: Maximum Impact Frequency for Hard Rocks!

Large Image :  TY24 Handheld Pneumatic Air Leg Drill: Maximum Impact Frequency for Hard Rocks!

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO 9001
Model Number: YT24
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 7-15 woring days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 2000 sets per week
Contact Now

TY24 Handheld Pneumatic Air Leg Drill: Maximum Impact Frequency for Hard Rocks!

Description
Model: YT 24 Name: Rock Drill
Machine Type: Drilling Tools Weight: 24kg
Perforating Depth: 5m Diameter: 32~45 Mm
Application: It Is Best Suited For Use In Medium And Small Mines. Power Type: Pneumatic
Advantage: Light Weight, Low Noise, High Efficiency, Good Economic Results. Piston Stroke: 60mm
Length: 678mm Color: Yellow,green,black
Highlight:

pneumatic mining rock drilling machine

,

concrete breaking mining rock drilling machine

,

pneumatic hand held rock drilling machine

TY24 Handheld Pneumatic Air Leg Drill: Maximum Impact Frequency for Hard Rocks!





Product Information:



Hand-held Rock Drill is widely used for dry drilling in the medium-hard and hard rock. It is widely used in metallurgy, coal,railway, transportation, water conservancy construction and national defense stone works, etc. It is suitable for drilling and blasting under various of rocks at any direction angles.

The YT24 air-legged rock drill is a relatively early and definitive product in China. Compare with the same type of rock drills, YT24 has its unique advantage: light quality, low noise, high efficiency and good economic results.

Specifications:

YT series pneumatic rock drilling machine
Model YT28 YT27 YT29A YT24C TY24
Weight 26kgs 27kgs 26.5kgs 24kgs 24kgs
Length 661mm 668mm 659mm 628mm 678mm
Air pressure 0.4-0.63Mpa 0.4-0.63Mpa 0.4-0.63Mpa 0.4-0.63Mpa 0.4-0.63Mpa
Impact frequency ≧37HZ ≧39HZ ≧39HZ ≧37HZ ≧31HZ
Air consumption ≦81L/s ≦86L/s ≦88L/s ≦80L/s ≦67L/s
Impact energy ≧70J ≧75J ≧78J ≧65J ≧65J
Cylinder*stroke 80mm*60mm 80mm*60mm 82mm*60mm 76mm*60mm 70mm*70mm
Air pipe diameter 25mm 19mm 25mm 25mm 19mm
Shank dimension 22*108mm 22*108mm 22*108mm 22*108mm 22*108mm
Drilling depth 5m 5m 5m 5m 5m
Bit diameter 34-42mm 34-45mm 34-45mm 34-42mm 34-42mm





  FT160A FT160B FT160C FT170
Weight 17 kg 16 kg 18 kg 18 kg
Length 1668 mm 1428 mm 1820 mm 1668 mm
Propulsion Stroke 1338 mm 1098 mm 1490 mm 1338 mm
Cylinder Inner Diameter 65 mm 65 mm 65 mm 67 mm



Features:

Light weight, low noise, high efficiency, good economic results.


TY24 Handheld Pneumatic Air Leg Drill: Maximum Impact Frequency for Hard Rocks! 0TY24 Handheld Pneumatic Air Leg Drill: Maximum Impact Frequency for Hard Rocks! 1
TY24 Handheld Pneumatic Air Leg Drill: Maximum Impact Frequency for Hard Rocks! 2

TY24 Handheld Pneumatic Air Leg Drill: Maximum Impact Frequency for Hard Rocks! 3
TY24 Handheld Pneumatic Air Leg Drill: Maximum Impact Frequency for Hard Rocks! 4


TY24 Handheld Pneumatic Air Leg Drill: Maximum Impact Frequency for Hard Rocks! 5TY24 Handheld Pneumatic Air Leg Drill: Maximum Impact Frequency for Hard Rocks! 6TY24 Handheld Pneumatic Air Leg Drill: Maximum Impact Frequency for Hard Rocks! 7

TY24 Handheld Pneumatic Air Leg Drill: Maximum Impact Frequency for Hard Rocks! 8TY24 Handheld Pneumatic Air Leg Drill: Maximum Impact Frequency for Hard Rocks! 9TY24 Handheld Pneumatic Air Leg Drill: Maximum Impact Frequency for Hard Rocks! 10TY24 Handheld Pneumatic Air Leg Drill: Maximum Impact Frequency for Hard Rocks! 11
