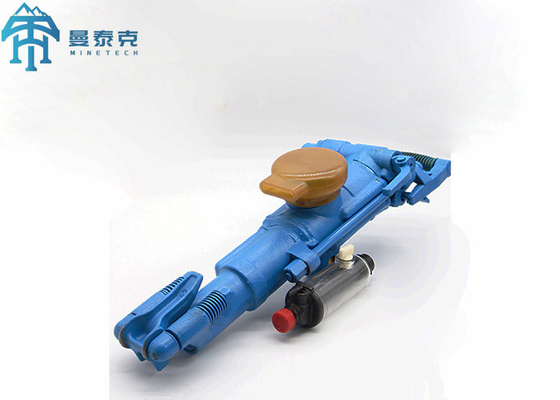

TY24 Handheld Pneumatic Rock Drill with 5m Perforating Depth and 34-42mm Bit Diameter for Light Weight Drilling

TY24 Handheld Pneumatic Rock Drill with 5m Perforating Depth and 34-42mm Bit Diameter for Light Weight Drilling
TY24 Handheld Pneumatic Rock Drill with 5m Perforating Depth and 34-42mm Bit Diameter for Light Weight Drilling
TY24 Handheld Pneumatic Rock Drill with 5m Perforating Depth and 34-42mm Bit Diameter for Light Weight Drilling TY24 Handheld Pneumatic Rock Drill with 5m Perforating Depth and 34-42mm Bit Diameter for Light Weight Drilling

Large Image :  TY24 Handheld Pneumatic Rock Drill with 5m Perforating Depth and 34-42mm Bit Diameter for Light Weight Drilling

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO 9001
Model Number: YT24
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $3-$300
Packaging Details: Wooden case
Delivery Time: 7-15 woring days
Payment Terms: T/T,Western Union,L/C
Supply Ability: 2000 sets per week
Contact Now

TY24 Handheld Pneumatic Rock Drill with 5m Perforating Depth and 34-42mm Bit Diameter for Light Weight Drilling

Description
Model: YT 24 Name: Rock Drill
Machine Type: Drilling Tools Weight: 24kg
Perforating Depth: 5m Diameter: 32~45 Mm
Application: It Is Best Suited For Use In Medium And Small Mines. Power Type: Pneumatic
Advantage: Light Weight, Low Noise, High Efficiency, Good Economic Results. Piston Stroke: 60mm
Length: 678mm Color: Yellow,green,black
Highlight:

pneumatic mining rock drilling machine

,

concrete breaking mining rock drilling machine

,

pneumatic hand held rock drilling machine

TY24 Handheld Pneumatic Air Leg Drill: Maximum Impact Frequency for Hard Rocks!
The TY24 Handheld Pneumatic Air Leg Drill is engineered for maximum performance in hard rock drilling applications. This versatile tool is widely used for dry drilling in medium-hard to hard rock formations across various industries including metallurgy, coal mining, railway construction, transportation infrastructure, water conservancy projects, and national defense stone works.
Product Overview
The YT24 air-legged rock drill represents a proven design in China's mining equipment industry. Compared to similar rock drills, the YT24 series offers distinct advantages including lighter weight, reduced noise levels, superior efficiency, and excellent cost-effectiveness.
Technical Specifications
Model YT28 YT27 YT29A YT24C TY24
Weight 26kgs 27kgs 26.5kgs 24kgs 24kgs
Length 661mm 668mm 659mm 628mm 678mm
Air pressure 0.4-0.63Mpa 0.4-0.63Mpa 0.4-0.63Mpa 0.4-0.63Mpa 0.4-0.63Mpa
Impact frequency ≧37HZ ≧39HZ ≧39HZ ≧37HZ ≧31HZ
Air consumption ≦81L/s ≦86L/s ≦88L/s ≦80L/s ≦67L/s
Impact energy ≧70J ≧75J ≧78J ≧65J ≧65J
Cylinder*stroke 80mm*60mm 80mm*60mm 82mm*60mm 76mm*60mm 70mm*70mm
Air pipe diameter 25mm 19mm 25mm 25mm 19mm
Shank dimension 22*108mm 22*108mm 22*108mm 22*108mm 22*108mm
Drilling depth 5m 5m 5m 5m 5m
Bit diameter 34-42mm 34-45mm 34-45mm 34-42mm 34-42mm
Model FT160A FT160B FT160C FT170
Weight 17 kg 16 kg 18 kg 18 kg
Length 1668 mm 1428 mm 1820 mm 1668 mm
Propulsion Stroke 1338 mm 1098 mm 1490 mm 1338 mm
Cylinder Inner Diameter 65 mm 65 mm 65 mm 67 mm
Key Features
  • Lightweight design for improved maneuverability
  • Reduced noise operation for better work environment
  • High drilling efficiency in hard rock conditions
  • Cost-effective performance with low maintenance requirements
  • Suitable for drilling at various angles and orientations
Product Images
TY24 Handheld Pneumatic Rock Drill with 5m Perforating Depth and 34-42mm Bit Diameter for Light Weight Drilling 0 TY24 Handheld Pneumatic Rock Drill with 5m Perforating Depth and 34-42mm Bit Diameter for Light Weight Drilling 1 TY24 Handheld Pneumatic Rock Drill with 5m Perforating Depth and 34-42mm Bit Diameter for Light Weight Drilling 2 TY24 Handheld Pneumatic Rock Drill with 5m Perforating Depth and 34-42mm Bit Diameter for Light Weight Drilling 3 TY24 Handheld Pneumatic Rock Drill with 5m Perforating Depth and 34-42mm Bit Diameter for Light Weight Drilling 4 TY24 Handheld Pneumatic Rock Drill with 5m Perforating Depth and 34-42mm Bit Diameter for Light Weight Drilling 5 TY24 Handheld Pneumatic Rock Drill with 5m Perforating Depth and 34-42mm Bit Diameter for Light Weight Drilling 6 TY24 Handheld Pneumatic Rock Drill with 5m Perforating Depth and 34-42mm Bit Diameter for Light Weight Drilling 7 TY24 Handheld Pneumatic Rock Drill with 5m Perforating Depth and 34-42mm Bit Diameter for Light Weight Drilling 8 TY24 Handheld Pneumatic Rock Drill with 5m Perforating Depth and 34-42mm Bit Diameter for Light Weight Drilling 9 TY24 Handheld Pneumatic Rock Drill with 5m Perforating Depth and 34-42mm Bit Diameter for Light Weight Drilling 10 TY24 Handheld Pneumatic Rock Drill with 5m Perforating Depth and 34-42mm Bit Diameter for Light Weight Drilling 11

Tag:

661mm Rock Drilling Machine,

FT160B pneumatic breaker hammer,

air leg pneumatic breaker hammer
