Product Details:
|

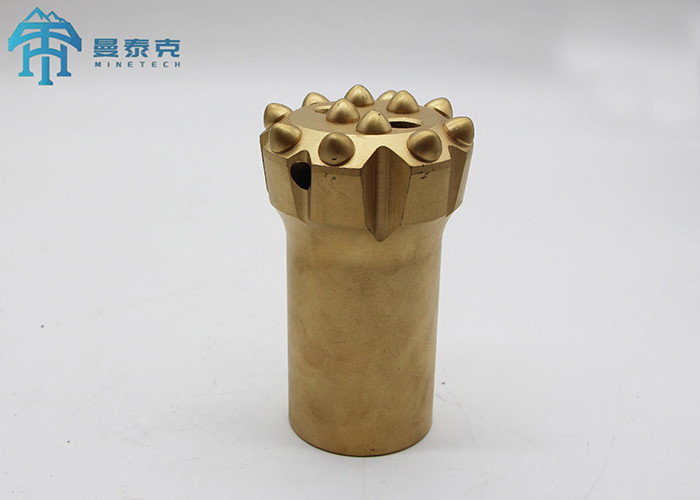

| Product Name: | Thread Button Bit | Diameter: | 89mm T51 |
|---|---|---|---|
| Buttons: | 12 Buttons | Weight: | 5.3kgs |
| Advantage: | High Performance | Color: | Blue/yellow / Black / Red |
| Material: | Carbon Steel | Carbide Shape: | Ballistic/spherical/semi-ballistic |
| Package: | Wooden Case | Application: | Construction Works, Energy, Mining And Tunneling |
| Highlight: | 12 buttons rock drill button bits,quarrying mining rock drill button bits,threaded t38 drill bit |
||
Description:
Thread button bits are made by high quality alloy steel bar and tungsten carbides. Under the process of heat treatment.
Minetech’s drilling tools are tested in various working conditions. What’s more, Minetech can supply customized thread button bits upon receiving of different drilling application, the bits are suitable in drilling with soft rock, loose-medium rock and hard rock.
A comprehensive range of various button bits shown as below:
Applications:
Mainly used in the field of underground mining, open pit mining, blast furnace opening of steel mills and etc.
| R32 | |||||
| Name | Diameter | Tip size(mm) | Flushing holes | ||
| mm | gauge | front | side | front | |
| R32 trhead button bits | 41 | 4*9 | 2*8 | 1 | 1 |
| 43 | 4*9 | 2*9 | 1 | 1 | |
| 45 | 4*10 | 2*9 | 1 | 1 | |
| R32 Retrac thread button bits | 60 | 6*9 | 4*8 | 0 | 3 |
| 64 | 6*9 | 4*9 | 0 | 3 | |
| 70 | 6*10 | 4*10 | 0 | 3 | |
| T38 | |||||
| Name | Diameter | Tip size(mm) | Flushing holes | ||
| mm | gauge | front | side | front | |
| T38 trhead button bits | 57 | 5*11 | 3*10 | 1 | 1 |
| 64 | 5*12 | 3*11 | 1 | 1 | |
| 76 | 5*14 | 3*12 | 1 | 2 | |
| T38 Retrac thread button bits | 60 | 8*9 | 3*9 | 2 | 2 |
| 64 | 8*9 | 4*9 | 2 | 2 | |
| 70 | 8*10 | 4*10 | 2 | 2 | |
| 76 | 8*11 | 4*10 | 2 | 2 | |
| 89 | 8*12 | 5*12 | 2 | 2 | |
| T45 | |||||
| Name | Diameter | Tip size(mm) | Flushing holes | ||
| mm | gauge | front | side | front | |
| T45 trhead button bits | 70 | 6*11 | 4*10 | 0 | 2 |
| 76 | 6*13 | 4*10 | 0 | 2 | |
| 89 | 8*12 | 5*12 | 2 | 2 | |
| 102 | 8*13 | 6*12 | 2 | 2 | |
| 115 | 8*14 | 6*13 | 2 | 2 | |
| T45 Retrac thread button bits | 70 | 8*11 | 4*10 | 2 | 2 |
| 76 | 8*11 | 4*10 | 2 | 2 | |
| 80 | 8*12 | 5*11 | 2 | 2 | |
| 89 | 8*12 | 6*11 | 2 | 2 | |
| 102 | 8*13 | 6*12 | 2 | 2 | |
| T51 | |||||
| Name | Diameter | Tip size(mm) | Flushing holes | ||
| mm | gauge | front | side | front | |
| T51 trhead button bits | 89 | 8*12 | 5*12 | 2 | 2 |
| 102 | 8*13 | 6*12 | 2 | 2 | |
| 115 | 8*14 | 6*13 | 2 | 2 | |
| 127 | 8*14 | 6*14 | 2 | 2 | |
| T51 Retrac thread button bits | 89 | 8*11 | 5*12 | 2 | 2 |
| 102 | 8*11 | 6*12 | 2 | 2 | |
| 115 | 8*12 | 6*13 | 2 | 2 | |
| 127 | 8*12 | 6*14 | 2 | 2 | |
Advantage:
Compared with the traditional flake bit, the drilling speed is faster, the use cycle of the button bit is longer, and its non-grinding life is about 5-6 times of the grinding life of the flake bit of the same diameter, which is conducive to saving auxiliary work hours, reducing workers' physical labor and speeding up the project.
