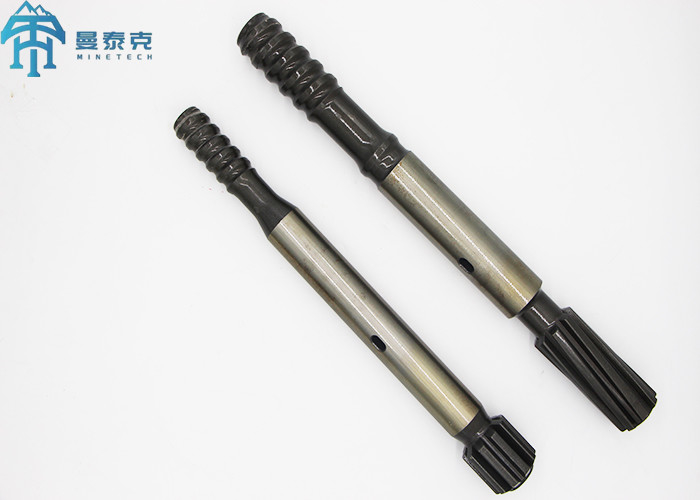

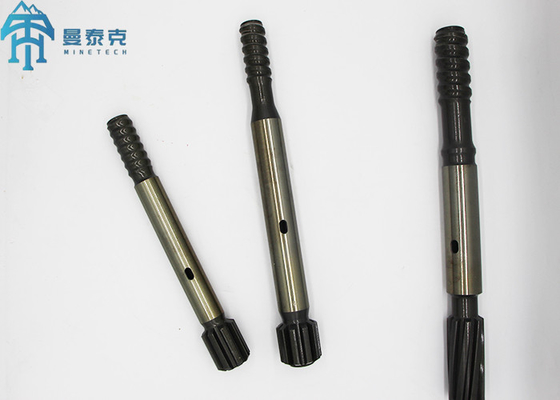

T38 Shank Adapter Coupling Sleeve COP 1838 Atlas Copco Drill
Description:
The shank adapters are manufactured from specially selected alloy steels followed by heat treatment through carburizing which withstands the high impact power of drilling.
The shank adapters are therefore designed to withstand the high impact power of modern rock drills and made from specially selected material which also is hardened through carburizing. Around 300 different shank adapters suitable for different rock drills are currently available from Atlas Copco series drifters, Ingersoll Rand series drifters, Tamrock series drifters, Furukawa series drifters Garden Dever series drifters etc.
Specification:
| Item |
Thread |
Length |
Diameter |
Weight |
| mm |
mm |
kg |
| Atlas Copco COP 1440, COP1838 |
R32 (1 1/4") |
640 |
52 |
7.5 |
| Bolting - SDA |
| Atlas Copco COP 1440, COP 1838 |
R32 (1 1/4") |
640 |
52 |
9.1 |
| Bolting- SDA, IRIA |
R38 (1 1/2") |
640 |
52 |
8.9 |
| Atlas Copco COP 1440, COP 1550, COP 1838 |
R32 (1 1/4") |
525 |
52 |
5.7 |
| Bench Drilling |
T38 (1 1/2") |
525 |
52 |
5.9 |
| |
T45 (1 3/4") |
525 |
52 |
6.1 |
| |
T51 (2") |
525 |
52 |
6.5 |
| Atlas Copco COP 1440, COP 1550, COP 1638, COP 1838, COP 2238 |
R32 (1 1/4") |
435 |
38 |
3.6 |
| Drifting |
R38 (1 1/2") |
435 |
38 |
3.9 |
| |
T38 (1 1/2") |
435 |
38 |
3.8 |
| Atlas Copco COP 1440, COP1550, COP 1638, COP 1838 |
T38 (1 1/2") |
435 |
38 |
3.9 |
| Bolting, Drifting |
| Atlas Copco COP 1440, COP 1550, COP 1638, COP 1838, COP 2238 |
R32 (1 1/4") |
585 |
38 |
4.2 |
| Bench Drilling |
R38 (1 1/2") |
525 |
38 |
4.3 |
| |
T38 (1 1/2") |
525 |
38 |
4.3 |
| Atlas Copco COP 1638, COP 1838AW |
R38 (1 1/2") |
455 |
38 |
4.1 |
| Drifting |
T38 (1 1/2") |
455 |
38 |
4.1 |
| Atlas Copco COP 1638, COP 1838AW |
R32 (1 1/4") |
525 |
38 |
4.3 |
| Longhole Drilling |
T38 (1 1/2") |
525 |
38 |
4.5 |
Our Advantages:
1. We produce full range of shank adapters that can be used with world famous rock drills.
2. Excellent raw materiales, specific CNC processing equipment, scientifically straighten, ensuring the stability of product quality.
3. Fully-carburized shank adapters for superior wear resistant and service life.
4. Quality close to world top brands, but price is more competitive.
Company Profile:
Hebei Minetech Machinery Technology Co, Ltd is an joint venture enterprise with Europe Partner, which is located in Shijiazhuang City, Hebei Province,China. Our company is specialized in manufacturing and exporting of mining machinery, such as hydraulic and pneumatic drill machine, roof bolter and drilling consumption, like drill bit and drill rod with own factory in Shijiazhuang City.
With our rich expenience for over a decade and with professional engineers andsales team, we focus on providing complete solutions for mining machinery.
Target markets is gradually shifted from domestic market to international market, products are exported to more than thirty countries and regions, including Southeast Asia, the United States, Germany, Britain, South Africa, Poland, Russia, Middle Asia, South America and so on, and established a good brand and reputation international market.
