Product Details:
|
| Product Name: | YT29A Pneumatic Handheld Jack Hammer | Model No: | YT29A |
|---|---|---|---|
| Weight: | 26.5 Kgs | Size: | 659*248*205mm |
| Drilling Depth: | Max.5m | Market: | Global |
| Color: | Blue | Usage: | Ore,mining Used,Rock Drilling |
| Power Type: | Pneumatic Manual | Type: | Rotary Drilling Rig |
| Highlight: | yt29 handheld jackhammer,pneumatic handheld jackhammer,pusher leg jack hammer hand held |
||

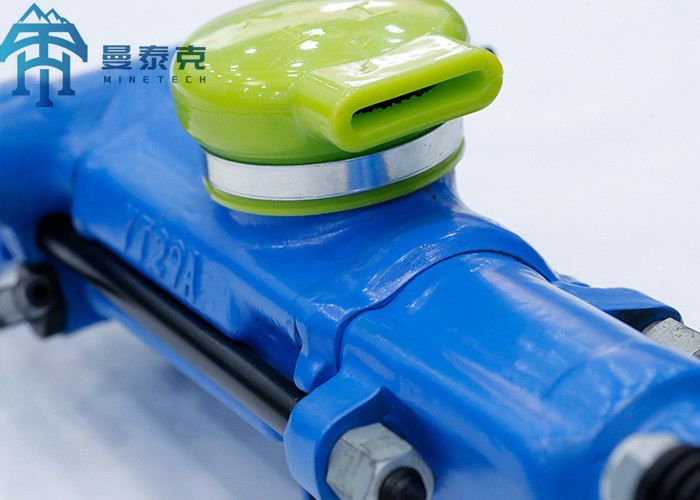

YT29A Pneumatic Handheld Jack Hammer With Pusher Leg Rock Drilling Tools
Description:
YT29A pneumatic handheld jack hammer is a kind of pneumatic jack hammer, which is powered by the effective use of wind energy.
Drilling holes of about 5 meters depth for both medium-hard rock and hard stones.
It could work with the FT160A air-leg or FT160C long air-leg. Also it can be fixed on drilling-vehicle or drilling-shelf.
To ensure the well lubricating, this jack hammer may match FY250 oil.
Applications:
YT29A pneumatic handheld jack hammer is mainly used in railroad, highway, hydropower and other construction, metallurgy, coal and other mining tunneling and various rock drilling operations.
Specification of YT29A pneumatic handheld jack hammer:
|
Weight (kg) |
26.5 |
|
Length (mm) |
659 |
|
Cylinder Diameter (mm) |
82 |
|
Air Hose Inner Diameter (mm) |
25 |
|
Piston Stroke (mm) |
60 |
|
Water Hose Inner Diameter (mm) |
13 |
|
Shank (hex. xL) (mm) |
22x108 |
Advantage of YT29A pneumatic handheld jack hammer:
High efficiency, low noise, light weight, good economic effect, fast drill rate.
Caution of YT29A pneumatic handheld jack hammer:
Air pressure, 0.45-0.55MPA
Water pressure, not allowed to be equal to or higher than the wind pressure.
