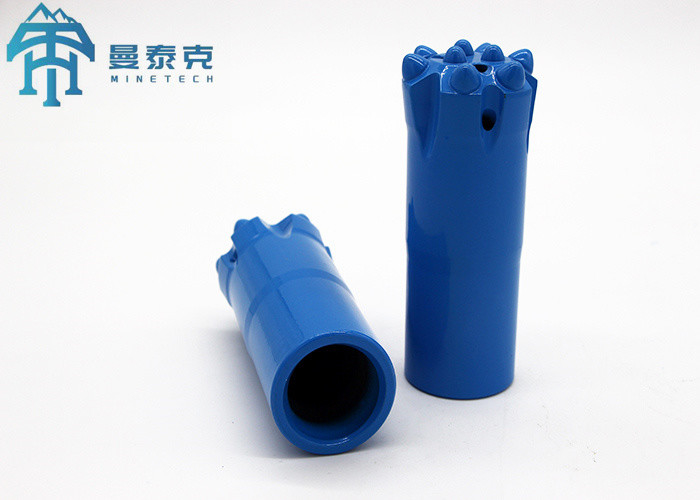

Mining Carbide Rock Drill Bits 7 Degree 38mm Taper Button

Mining 7degree 38mm Taper Button Rock Drilling Bit

Description:

Different rock formation and rock drills require different taper angles. When drilling with high impact hydraulic rock drills in medium-hard to hard and abrasive rock formation, a wide taper angles is nomally used. Taper angles of 11° and 12° are normally used on modern drill rigs. For low impact rock drills and softer rock formation, a narrow taper angle of 7° is used. 7° can also be used if bit spinning is a problem when using 11° and 12° equipment.

Feature of taper button bit:

1.tapered button bits connect with tapered drill rod for drilling holes

2.Stale and mature welding technology ensure good quality of bits

3.Accurate dimension of taper degree perfectly matches the rods

4.work reliable and very cost-effective

Product Characteristic:

1. Button bit taper angle: 4°,4°46″,6°,7°,11°,12°
2. Length: 50/55/71/80 mm
3. Diameter: 20-45 mm
4. Button bit shape: spherical/parabolic
5. Socket inside diameter: 15/19/22/25(mm)
6. Material and process: high quality alloy steel bar and tungsten carbides, through heat treatment

Company profile:

Hebei Minetech Machinery Technology Co, Ltd is an joint venture enterprise with Europe Partner, which is located in Shijiazhuang City, Hebei Province,China. Our company is specialized in manufacturing and exporting of mining machinery, such as hydraulic and pneumatic drill machine, roof bolter and drilling consumption ,like drill bit and drill rod with own factory in Shijiazhuang City.With our rich expenience for over a decade and with professional engineers andsales team, we focus on providing complete solutions for mining machinery.
Target markets is gradually shifted from domestic market to international market, products are exported to more than thirty countries and regions, including Southeast Asia, the United States, Germany, Britain, South Africa, Poland, Russia, Middle Asia, South America and so on, and established a good brand and reputation ininternational market.
