YT27 Jack Hammer with Air Leg for Rock Drilling Tools

Description

Product Name:	YT27 Pneumatic Handheld Jack Hammer	Model No:	YT27
Color:	Blue，Black	Weight:	27 Kgs
Size:	659248205mm	Drilling Depth:	0-5m
Operating Air Pressure:	0.4-0.63MPa	Usage:	Ore,mining Used,Rock Drilling
Type:	Rotary Drilling Rig	Power Type:	Pneumatic Manual
Highlight:	yt27 hand held jack hammer , pneumatic hand held jack hammer , yt27 pneumatic jack hammer

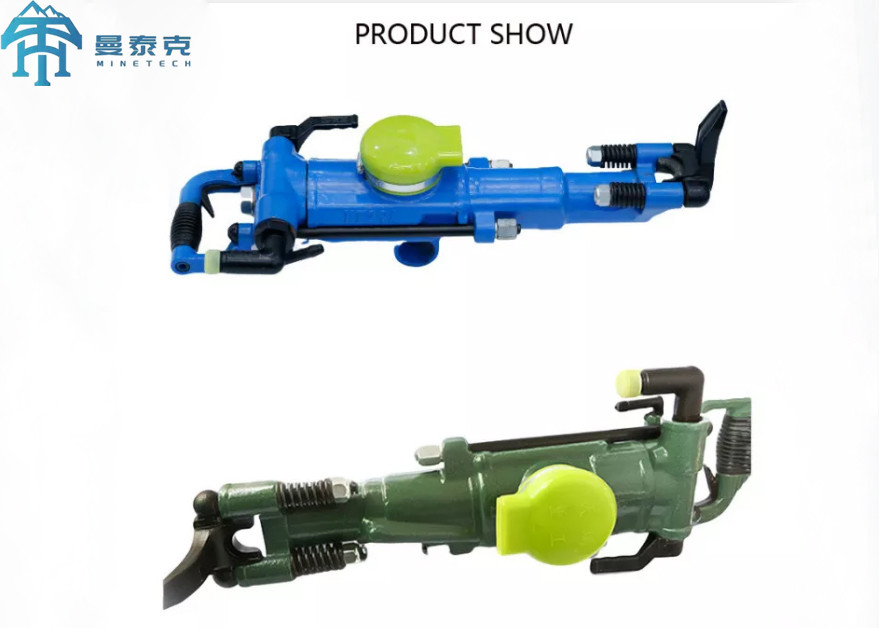

YT27 Pneumatic Handheld Jack Hammer With Air Leg For Rock Drill

Description:

YT27 pneumatic handheld jack hammer is a kind of pneumatic jack hammer, which is powered by the effective use of wind energy.
Drilling holes of about 5 meters depth for both medium-hard rock and hard stones.

It could work with the FT160A air-leg or FT160C long air-leg. Also it can be fixed on drilling-vehicle or drilling-shelf.

To ensure the well lubricating, this jack hammer may match FY250 oil.

Applications:

YT27 pneumatic handheld jack hammer is mainly used in railroad, highway, hydropower and other construction, metallurgy, coal and other mining tunneling and various rock drilling operations.

Specification of pneumatic handheld jack hammer:

Type	7655	7665	YT24	YT27	YT28
Weight	24kg	25.5 kg	24 kg	27 kg	28 kg
Total length	628mm	550 mm	678 mm	668 mm	661 mm
Using air pressure	0.63Mpa	0.63 Mpa	0.63 Mpa	0.63 Mpa	0.63 Mpa
Cylinder bore	76mm	76mm	70 mm	80 mm	80 mm
Tracheal diameter	25mm	25mm	25mm	25mm	25mm
Pipe diameter	13mm	13mm	13mm	13mm	13mm

Advantage of YT27 pneumatic handheld jack hammer:

High efficiency, low noise, light weight, good economic effect, fast drill rate.

Caution of YT27 pneumatic handheld jack hammer:

Air pressure, 0.4-0.63MPa

Water pressure, not allowed to be equal to or higher than the wind pressure.
