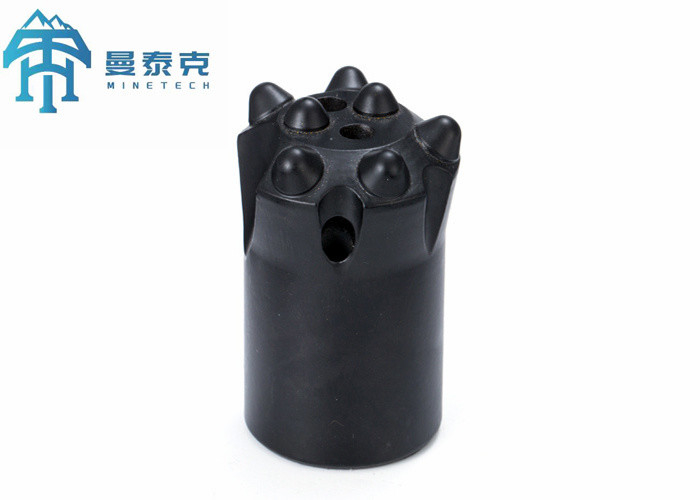

Granite 38mm Rock Drilling Bit Tapered Button Carbide Mining

Granite 38mm Rock Drilling Bit Tapered Button Carbide Mining
Granite 38mm Rock Drilling Bit Tapered Button Carbide Mining

Large Image :  Granite 38mm Rock Drilling Bit Tapered Button Carbide Mining

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO9001
Model Number: 38mm
Payment & Shipping Terms:
Minimum Order Quantity: 50 Piece
Price: Negotiable
Packaging Details: Plastic box or Wooden Box
Delivery Time: 20-30 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 20000 pieces per month

Granite 38mm Rock Drilling Bit Tapered Button Carbide Mining

Description
Type: Tapered Button Bit Diameter: 38mm
Button Shape: Parabolic Button Color: Black,yellow And So On.
Usage: Mining,construction And So On Weight: 0.45kg
Materiales: Tungsten Carbide Packing: Plastic Box O Wooden Box
Advantage: High Performance,high-efficiency,Factory Price And High Quality,Direct Manufacturer Processing Type: Forging
Highlight:

38mm rock drilling bit

,

carbide granite rock drilling bit

,

38mm drill bit for granite rock

38mm Tapered Button Bit Carbide Mining Bits for Rock Drill





Product Information:



Our tapered button bit was from high quality cemented carbide and produced with heat treatment technology,which connected with tapered drill rod well for air leg or hand-held rock drill machine for drilling holes in gold and coal mining,marble and granite quarries,stone project, tunnel, water conservancy,etc.



Specifications:



For 22 mm (7/8") rod. 11° taper. Short Skirt.
Diameter Buttons Flushing hole Length Weight
mm inch Gauge Front Side Front mm Kg
32 1 1/4 3x8 2x7 1 1 50 0.22
32 1 1/4 4x7 2x7 1 1 50 0.29
32 1 1/4 5x7 2x7 1 1 50 0.35
32 1 1/4 6x7 2x7 1 1 50 0.35
32 1 1/4 6x7 2x7 1 2 50 0.35
34 1 11/32 3x8 2x7 1 1 50 0.39
34 1 11/32 4x8 2x7 1 2 50 0.39
34 1 11/32 5x7 2x7 1 1 50 0.4
35 1 3/8 6x7 2x7 1 2 50 0.41
36 1 27/64 3x9 1x8 1 1 50 0.42
36 1 27/64 3x9 2x7 1 1 50 0.42
36 1 27/64 4x8 2x7 1 1 50 0.42
36 1 27/64 4x8 2x7 1 2 50 0.45
36 1 27/64 5x8 2x7 1 1 50 0.45
36 1 27/64 5x8 2x7 1 2 50 0.45
38 1 1/2 3x9 1x9 1 1 50 0.45
38 1 1/2 3x9 2x7 1 1 50 0.45
38 1 1/2 5x9 2x7 1 1 50 0.45
38 1 1/2 5x9 2x7 1 2 50 0.45
40 1 37/64 3x9 1x9 1 1 50 0.48
40 1 37/64 3x9 2x8 1 1 50 0.48
40 1 37/64 5x9 2x8 1 1 50 0.48
40 1 37/64 5x9 2x8 1 2 50 0.48
41 1 5/8 5x9 2x8 1 2 50 0.48



Advantage:



Long service;
Extensive selection (button, chisel, cross type);
Lowest cost.

Packing:

Using ply-wooden cases and pallet for package to protect the products and avoid the damaging during transportation.

Company Profile:

Hebei Minetech Machinery Technology Co, Ltd is an joint venture enterprise with Europe Partner, which is located in Shijiazhuang City, Hebei Province, China. Our company is specialized in manufacturing and exporting of mining machinery, such as hydraulic and pneumatic drill machine, roof bolter and drilling consumption, like drill bit and drill rod with own factory in Shijiazhuang City.



With our rich expenience for over a decade and with professional engineers andsales team, we focus on providing complete solutions for mining machinery.


Target markets is gradually shifted from domestic market to international market, products are exported to more than thirty countries and regions, including Southeast Asia, the United States, Germany, Britain, South Africa, Poland,Russia, Middle Asia, South America and so on, and established a good brand and reputation international market.
