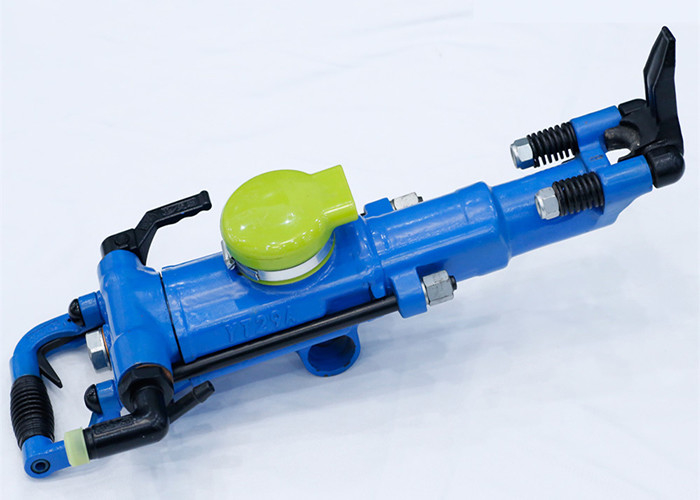

34mm Blasting Hand Held Rock Drilling Machine With Pusher Leg Ft160a

34mm Blasting Hand Held Rock Drilling Machine With Pusher Leg Ft160a
34mm Blasting Hand Held Rock Drilling Machine With Pusher Leg Ft160a

Large Image :  34mm Blasting Hand Held Rock Drilling Machine With Pusher Leg Ft160a

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO 9001
Model Number: YT29A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 10-15 days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 1000 pieces per month
Contact Now

34mm Blasting Hand Held Rock Drilling Machine With Pusher Leg Ft160a

Description
Product Name: Pneumatic Rock Drill Model No: YT 29A
Drilling Hole Diameter: 34 - 45mm Weight: 26.5kgs
Size: 659 * 248 * 205 Mm Drilling Depth: Max 5m
Usage: Ore,mining Used,Rock Drilling Working Pressure: 0.4-0.63 Mpa
Color: Request Power Type: Pneumatic,Air Compressor And Electric
Highlight:

blasting hand held rock drilling machine

,

34mm hand held rock drilling machine

,

34mm rock drilling machine for blasting

Multipurpose Mining Machinery YT29A Pneumatic Jack Hammer rock drill with pusher leg FT160A Rock Drilling Machine





Description:



Pneumatic rock drill is a kind of high efficient drilling machinery. It is widely used in rock drivage and various blasting hole drilling in the drilling operation, is mine, railway, traffic, water conservancy construction regarding the project of the important tools.



YT29A is a kind of high efficiency air leg rock drill machine.
It can be matched with the FT160A air - leg or FT160C long air - leg to use in the basis of the width of rock.


Applications:



Structure features: this machine adopts bowl with valve distribution form, reasonable structure, flexible. With light weight, high drilling speed, low gas consumption, small vibration, easy to operate, low failure rate and long life of parts, as well as good economic benefit.



Specification:



YT29A AIR LEG ROCK DRILL

Weight (kg)

26.5

External Dimensions (mm)

659x248x205

Piston Diameter (mm)

82

Piston Structure Stroke (mm)

60

Working Air Pressure (MPa)

0.4~0.63

Impact Frequency (Hz)

≥39

Impact energy (J)

≥78

Air Consumption (L/s)

≤88

Rotation Torque (N.m)

≥20

Water Pressure (MPa)

0.3~0.48

Air Pipe Inner Diameter (mm)

25

Water Pipe Inner Diameter (mm)

13

Drilling Hole Diameter (mm)

34~45

Drilling Hole Depth (m)

5

Working Temperature (℃)

-30~45

Shank Size (mm)

H22x108 ±1

FY250 MODEL OIL LUBRICATOR

Weight (Kg)

1.2

Oil Capacity (L)

0.25



FT160A

FT160B

FT160C

FT170

Weight (kg)

17

16

18

18

Length (mm)

1668

1428

1820

1668

Propulsion Stroke (mm)

1338

1098

1490

1338

Cylinder Inner Diameter (mm)

65

65

65

67







34mm Blasting Hand Held Rock Drilling Machine With Pusher Leg Ft160a 034mm Blasting Hand Held Rock Drilling Machine With Pusher Leg Ft160a 134mm Blasting Hand Held Rock Drilling Machine With Pusher Leg Ft160a 234mm Blasting Hand Held Rock Drilling Machine With Pusher Leg Ft160a 334mm Blasting Hand Held Rock Drilling Machine With Pusher Leg Ft160a 4
