102mm T45 Thread Button Bit for High Resistance High Footage Speed and Low Breakage Bench Drilling

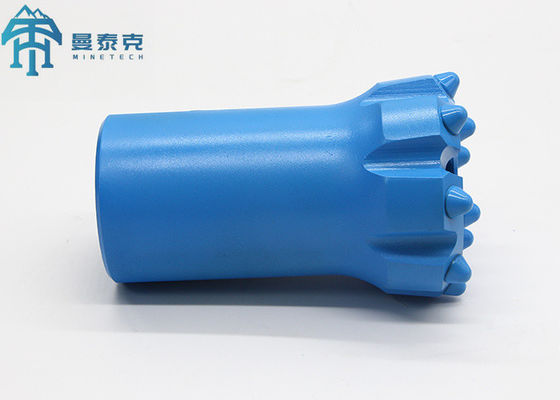

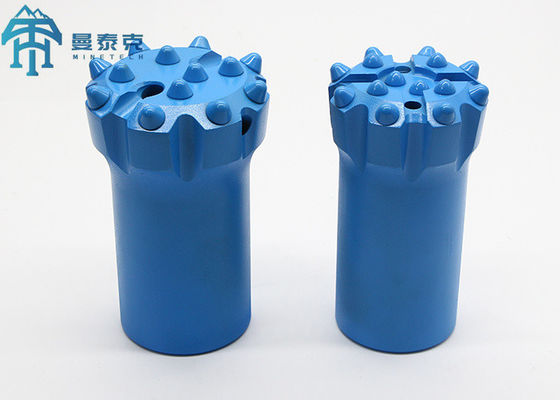

Large Image : 102mm T45 Thread Button Bit for High Resistance High Footage Speed and Low Breakage Bench Drilling

Product Details:

Place of Origin:	CHINA
Brand Name:	MTH
Certification:	ISO 9001
Model Number:	102mm T45 Thread Button Bit

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$3-$300
Packaging Details:	Wooden case
Delivery Time:	10 -15 days
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	20000 pcs per month

Contact Now

102mm T45 Thread Button Bit for High Resistance High Footage Speed and Low Breakage Bench Drilling

Description

Product Name:	102mm T45 Thread Button Bit	Diameter:	102mm
Thread:	T45	Weight:	5.2kgs
Color:	Blue Black	Material:	Tungsten Carbide
Process:	Forging	Package:	Carton
Use:	Ore Mining	Application:	Drifting And Tunnelling
Highlight:	102mm t45 drill bit , bench t45 drill bit , 102mm t45 threaded button bits

102mm T45 Drill Bit Drifter Tungsten Carbide Top Hammer Bench Drilling

102mm T45 Drifter Tungsten Carbide Top Hammer Thread Button Bit For Bench Drilling

Description Of Thread Button Bit:

Rock Drill Thread Button Bits are suitable for use with R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, T60 rock drill rods. Available in multiple thread types, these bits are designed for hard rock drilling (f=8~18).

Thread connection: R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60
Alloy steel: 45CrNiMoVa
Suitable carbide tips: YK05
Technology: hot-pressing or welding

Specification:

Diameter	inch	T.C buttons	Flushing hole	Angle	Weight
89 mm	3 1/2	8x14	5x12	35°	4.69 Kg
89 mm	3 1/2	8x13	6x13	35°	4.52 Kg
89 mm	3 1/2	8x13	4x11,2x9	35°	4.48 Kg
89 mm	3 1/2	8x13	4x13,1x13	35°	4.47 Kg
89 mm	3 1/2	9x12	6x10	35°	4.68 Kg
102 mm	4	8x14	6x12	35°	6.85 Kg
102 mm	4	8x15	4x13,1x13	35°	7.42 Kg
102 mm	4	8x14	4x12,2x12	35°	7.35 Kg
102 mm	4	9x13	8x13	35°	7.45 Kg
115 mm	4 1/2	8x15	4x13,2x13	35°	9.25 Kg
115 mm	4 1/2	8x16	7x14	35°	9.48 Kg
115 mm	4 1/2	9x14	8x14	35°	9.52 Kg
127 mm	5	8x16	4x16,2x13	35°	12.85 Kg
127 mm	5	8x14	4x13,3x14	35°	12.68 Kg
127 mm	5	8x16	8x15	35°	12.78 Kg
127 mm	5	9x14	8x13	35°	12.65 Kg
