Rock Drill Tools Thread Button Bit T38 76mm

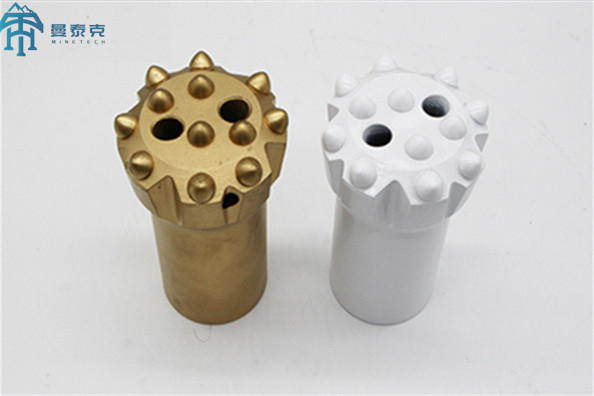

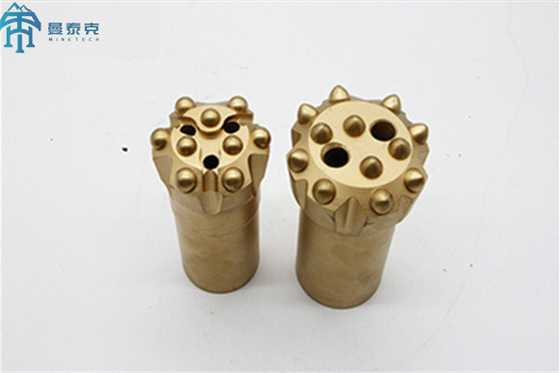

Large Image : Rock Drill Tools Thread Button Bit T38 76mm

Product Details:

Place of Origin:	CHINA
Brand Name:	MTH
Certification:	ISO 9001
Model Number:	76mm T38 Thread Button Bit

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable
Packaging Details:	Wooden case
Delivery Time:	10 -15 days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	20000 pcs per month

Contact Now

Rock Drill Tools Thread Button Bit T38 76mm

Description

Product Name:	76mm T38 Thread Button Bit	Diameter:	76mm
Thread:	T38	Weight:	2.5kgs
Color:	Blue Black	Material:	Tungsten Carbide
Process:	Forging	Package:	Wooden Cases Or Cartons, Or According To Customer's Requirements
Use:	Ore Mining	Application:	Drifting And Tunnelling
Highlight:	rock drill thread button bit , t38 76mm thread button bit , t38 76mm threaded button bits

Rock drill tools T38 thread button rock drill bit 76mm Thread Button Bit

Description Of Thread Button Bit:

Rock Drill Thread Button Bits is suitable for R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, T60 rock drill rods use. It have many thread. It's widely used for hard rock(f=8~18) drilling use.

1) Thread connection: R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60

2) Alloy steel:45CrNiMoVa

3) Suitable carbide tips:YK05

4)Technology:hot-pressing or welding

Specification:

R38/T38 Button bits, normal skirt
Diameter		T.C buttons		Flushing hole		Angle	Weight
mm	inch	Gauge x mm	Front x mm	Side	Front	Gauge	Kg
64	2 1/2	6x13	3x11	0	3	35°	1.43
64	2 1/2	6x11	4x10	1	2	35°	1.42
64	2 1/2	8x10	4x10	0	2	40°	1.44
64	2 1/2	6x11	3x10,1x10	1	3	35°	1.41
70	2 3/4	8x11	4x11	0	2	40°	1.75
70	2 3/4	6x13	3x10,1x10	0	3	35°	1.87
76	3	6x13	4x11	0	2	35°	2.25
76	3	8x12	4x12	0	2	35°	2.38
76	3	8x12	5x11	1	2	35°	2.41
76	3	6x13	3x12,1x11	1	3	35°	2.21
76	3	8x12	4x11,1x11	1	4	35°	2.44
89	3 1/2	8x13	4x13	0	2	40°	3.24
89	3 1/2	8x13	4x11,1x11	0	4	35°	3.31

Advantage :

1) High quality;

2) High resistance;

3) High footage speed;

4) Very low breakage;

5) Very low percentage of carbide falling off.

6) Wide application range.

Rock Drill Tools Thread Button Bit T38 76mm 0

Rock Drill Tools Thread Button Bit T38 76mm 3
