H22 Chisel Bit Integral Drill Rod with 33mm Bit Diameter and 1600mm Length for Small Hole Drilling

H22 Chisel Bit Integral Drill Rod with 33mm Bit Diameter and 1600mm Length for Small Hole Drilling
H22 Chisel Bit Integral Drill Rod with 33mm Bit Diameter and 1600mm Length for Small Hole Drilling
H22 Chisel Bit Integral Drill Rod with 33mm Bit Diameter and 1600mm Length for Small Hole Drilling H22 Chisel Bit Integral Drill Rod with 33mm Bit Diameter and 1600mm Length for Small Hole Drilling

Large Image :  H22 Chisel Bit Integral Drill Rod with 33mm Bit Diameter and 1600mm Length for Small Hole Drilling

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO 9001
Model Number: H22 chisel bit integral drill rod
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: $3-$300
Packaging Details: wooden case
Delivery Time: 10-15 days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 20000 piece per month
Contact Now

H22 Chisel Bit Integral Drill Rod with 33mm Bit Diameter and 1600mm Length for Small Hole Drilling

Description
Product Name: H22 Chisel Bit Integral Drill Rod Bit Diameter: 33mm
Shank: 108mm Rod Diameter: 22mm
Length: 1600mm Color: Black
Processing Type: Forging Type: Chisel Bit
Material: Carbon Steel,Carbide Usage: Small Hole Drilling,underground Mining,coal Mining And Geological Drilling,Rock Drilling
Highlight:

Mining Tool Integral Drill Rod

,

Small Hole Integral Drill Rod

,

H22 Chisel Bit Integral Drill Rod

H22 Chisel Bit Integral Drill Rod Small Hole Mining Tool
Product Information

Small Hole Mining Tool H22 Chisel Bit Integral Drill Rod is designed for efficient small hole drilling applications. These integral drill rods feature hexagonal rods with integrated cemented carbide chisel-shaped bit heads for optimal performance.

Specifications
Parameter Value
Bit diameter 33mm
Length 1600mm
Weight 5.4kgs
Rod hex 22mm
Shank hex 22x108mm
Applications

Integral rods are designed for use with hand-held rock drills in various applications including:

  • Granite and marble quarries
  • Underground mining operations
  • Small blasting hole drilling
Advantages
  • Reduces energy loss at tapered rod and bit joint
  • Excellent transmission performance
  • Improves drilling speed and efficiency
Packaging Options

Available in bundle or wooden case packaging.

Product Images

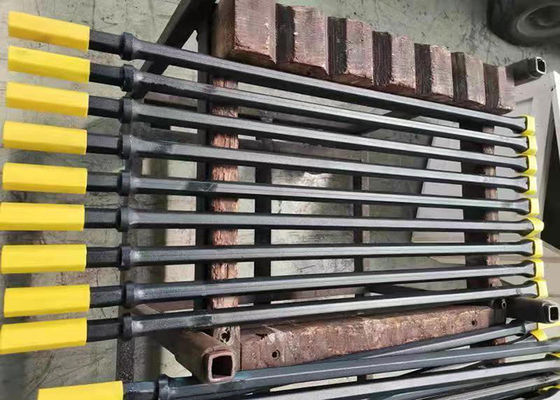

H22 Chisel Bit Integral Drill Rod with 33mm Bit Diameter and 1600mm Length for Small Hole Drilling 0
H22 Chisel Bit Integral Drill Rod with 33mm Bit Diameter and 1600mm Length for Small Hole Drilling 1
H22 Chisel Bit Integral Drill Rod with 33mm Bit Diameter and 1600mm Length for Small Hole Drilling 2
H22 Chisel Bit Integral Drill Rod with 33mm Bit Diameter and 1600mm Length for Small Hole Drilling 3
