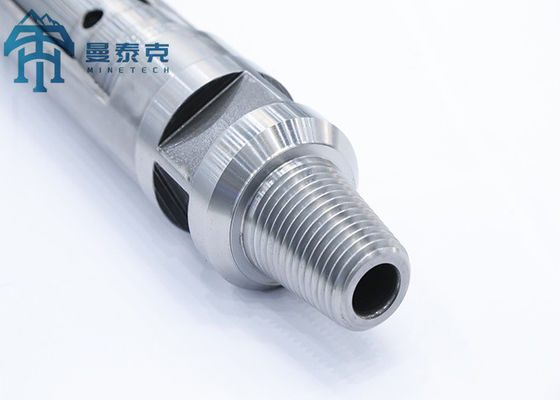

ND45 DTH Hammer 1030mm Length with API 2 3/8" REG Connection for Rock Drilling

ND45 DTH Hammer 1030mm Length with API 2 3/8" REG Connection for Rock Drilling
ND45 DTH Hammer 1030mm Length with API 2 3/8" REG Connection for Rock Drilling
ND45 DTH Hammer 1030mm Length with API 2 3/8" REG Connection for Rock Drilling ND45 DTH Hammer 1030mm Length with API 2 3/8" REG Connection for Rock Drilling

Large Image :  ND45 DTH Hammer 1030mm Length with API 2 3/8" REG Connection for Rock Drilling

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO9001
Model Number: ND45 Air Tube DTH Hammer
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: $3-$300
Packaging Details: wooden case
Delivery Time: 10-15 days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 10000 pieces per month
Contact Now

ND45 DTH Hammer 1030mm Length with API 2 3/8" REG Connection for Rock Drilling

Description
Product Name: ND45 Air Tube DTH Hammer Length: 1030mm
Connect Thread: API 2 3 / 8 " REG Weight: 39kg
Bit Shank: DHD340 Color: Customized
Material: Carbon Steel,Tungsten Carbide Process: CNC
Application: Rock Drilling,quarry,mining Advantage: High Performance,High Wear Resistant,High-efficiency
Highlight:

4 inch DTH Hammer ND45

,

Quarry Drilling 4 inch DTH Hammer

,

ND45 Air Tube coal mining hammer

Quarry Drilling Equipment 4 inch DTH Hammer ND45 With Air Tube
A high-performance down-the-hole drill hammer designed for efficient quarry drilling operations. Also known as DTH (Down-The-Hole) or RAB (Rotary Air Blasting) in some markets.
Product Specifications
Parameter Value
Length (Without Bit) 1030mm
Weight (Without Bit) 39.00 kg
External Diameter 99mm
Bit Shank DHD340/COP44
Hole Range 110-135 mm
Connection Thread API 2 3/8"Reg
Working Pressure 1.2-2.0 Mpa
Impact Rate at 17 Bar 27HZ
Recommended Rotation Speed 25-40 min
Air Consumption (1.0Mpa) 6m³/min
Air Consumption (1.8Mpa) 10m³/min
Air Consumption (2.4Mpa) 15m³/min
Primary Applications
  • Mining operations
  • Mineral exploration
Key Advantages
  • High drilling performance
  • Cost-effective operation
  • Extended service life
Packaging
Secured in wooden case for safe transportation
Product Images
ND45 DTH Hammer 1030mm Length with API 2 3/8" REG Connection for Rock Drilling 0
ND45 DTH Hammer 1030mm Length with API 2 3/8" REG Connection for Rock Drilling 1
ND45 DTH Hammer 1030mm Length with API 2 3/8" REG Connection for Rock Drilling 2
ND45 DTH Hammer 1030mm Length with API 2 3/8" REG Connection for Rock Drilling 3
