QL50 152mm High Efficiency DTH Drill Bit with Carbide and High Manganese Steel for Mining

QL50 152mm High Efficiency DTH Drill Bit with Carbide and High Manganese Steel for Mining
QL50 152mm High Efficiency DTH Drill Bit with Carbide and High Manganese Steel for Mining
QL50 152mm High Efficiency DTH Drill Bit with Carbide and High Manganese Steel for Mining QL50 152mm High Efficiency DTH Drill Bit with Carbide and High Manganese Steel for Mining QL50 152mm High Efficiency DTH Drill Bit with Carbide and High Manganese Steel for Mining

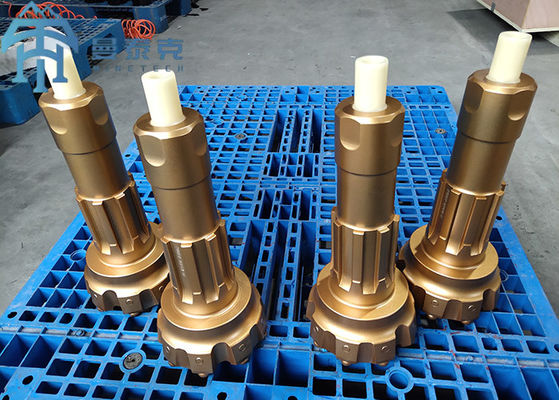

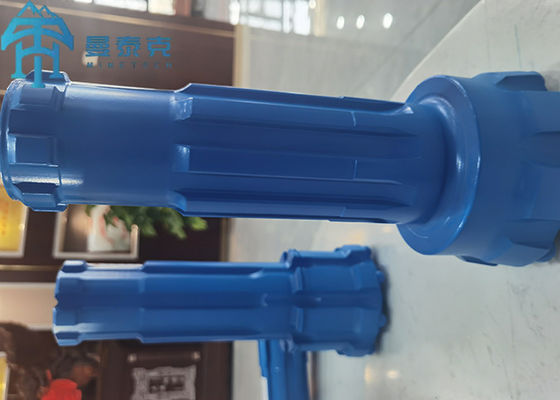

Large Image :  QL50 152mm High Efficiency DTH Drill Bit with Carbide and High Manganese Steel for Mining

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO9001
Model Number: 152mm diameter
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: $3-$300
Packaging Details: wooden case
Delivery Time: 10-15 days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 10000 pieces per month
Contact Now

QL50 152mm High Efficiency DTH Drill Bit with Carbide and High Manganese Steel for Mining

Description
Product Name: QL50 Diameter: 152mm
Weight: 17kg Packing: Wooden Case
Material: Carbide,High Manganese Steel,Tungsten Carbide & Steel Machine Type: Drilling Tool
Processing Type: Forging Use: Well Drilling,Ore Mining,quarry
Application: Rock Drilling,Mining,Construction,quarry,Water Well Drilling Carlos: Blue, Or Customized
Highlight:

QL50 152mm Mining Drill Bit

,

Mining Drill Bit High Efficiency

,

QL50 152mm DTH Drill Bit

QL50 152mm High Air Pressure DTH Mining Drill Bit High Efficiency
Product Information
Our DTH hammer and bits are compatible with CIR, DHD, QL, SD, Mission, and other series from Atlas Copco and similar manufacturers. Designed for high efficiency with low failure rates and extended service life, these bits deliver economical drilling performance even in high hardness, high abrasive rock formations and other challenging conditions.
Available DTH Bit Types
  • Bits for Low Pressure DTH Hammers
  • Bits for Medium & High Pressure DTH Hammers
  • Bits for High Efficiency High Pressure DTH Hammers
Front Shape Options
Concave Front: Ideal for all rock formations, particularly medium-hard and uniform conditions.
Flat Front: Designed for very hard rock and abrasive conditions.
Convex Front: Best suited for soft to medium-hard rock with reduced body wear.
Tungsten Carbide Button Types
  • Spherical button (gauge button) - for very hard rock
  • Ballistic button (front button) - for medium abrasive, medium hard rock
  • Parabolic button (front/gauge button) - for medium abrasive, hard rock
  • Flat button - for gauge protection
Specifications
Bit Size Shank Type Recommended DTH Bit Diameter
3.5"/3" DTH Hammer bits COP34, DHD3.5, MISSION30, BR3 shank 90mm to 105mm
4" DTH Hammer bits DHD340, QL40, MISSION40, SD4 shank 110mm to 130mm
5" DTH Hammer bits DHD350, QL50, MISSION50, SD5 shank 134mm to 152mm
6" DTH Hammer bits DHD360, QL60, MISSION60, SD6 shank 152mm to 203mm
8" DTH Hammer bits DHD380, QL80, MISSION80, SD8 shank 203mm to 305mm
12" DTH Hammer bits DHD112, SD12 and QL120 shank Available upon request
Applications
  • Underground mining
  • Quarry benching operations
  • Water well drilling
Key Advantages
  • High performance drilling
  • Cost-effective operation
  • Extended service life
QL50 152mm High Efficiency DTH Drill Bit with Carbide and High Manganese Steel for Mining 0 QL50 152mm High Efficiency DTH Drill Bit with Carbide and High Manganese Steel for Mining 1 QL50 152mm High Efficiency DTH Drill Bit with Carbide and High Manganese Steel for Mining 2 QL50 152mm High Efficiency DTH Drill Bit with Carbide and High Manganese Steel for Mining 3 QL50 152mm High Efficiency DTH Drill Bit with Carbide and High Manganese Steel for Mining 4 QL50 152mm High Efficiency DTH Drill Bit with Carbide and High Manganese Steel for Mining 5
