Product Details:
|
Product Name: | DTH Hammer | Connect Thread: | API 3 1 / 2 '' REG |
---|---|---|---|
Size: | 3" 3.5" 4" 5" 6" 8" 10" 12" | Use: | DTH Drilling |
Material: | Carbon Steel,Tungsten Carbide & Steel | Diameter: | 6 Inch ( 152mm ) |
Usage: | Hole Drilling,oil,Underground Mining, | Application: | Rock Drilling,quarry,mining Or Welling Drilling |
Color: | Blue,Gold,Red,black Or Customized | Advantage: | High Performance,High Wear Resistant,High-efficiency |
Key Words: | 6 Inch DTH Hammer | ||
Highlight: | DHD360 6 Inch DTH Hammer,Wear Resistant 6 Inch DTH Hammer,DHD360 low pressure dth hammer |

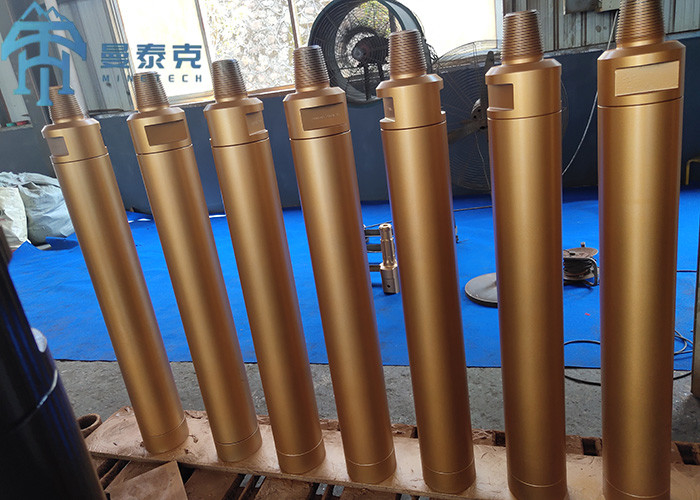

The hammer adopts advanced drilling theory to design the hammer, which enables the hammer to obtain good energy transmission, fast drilling speed and low air consumption. The quality of raw materials is good, the processing technology is advanced, the performance is stable, and the life is long. Easy to use, easy to install and disassemble, easy to repair, easy to repair.
The down-the-hole hammer is used in conjunction with down-the-hole drilling rigs and down-the-hole drill bits, and is mainly usedin mining, marble quarry blast hole drilling, water well drilling engineering or drilling engineering construction.
Technical Data | |||||
Length(Without Bit) | 930mm | 1030mm | 1214mm | 1160mm | 1248mm |
Weight(Without Bit) | 25.00 kg | 39.00 kg | 76.50 kg | 72.50 kg | 100.00 kg |
External Diameter | 82mm | 99mm | 126mm | 126mm | 142/144/146/148mm |
Bit Shank | DHD3.5 | COP44/DHD340 | COP54/DHD350R | ND55C/DHD350Q | COP64/DHD360 |
Hole Range | 90-110 mm | 110-135 mm | 135-155 mm | 135-155 mm | 155-190 mm |
Connect ion Thread | API 2 3/8”Reg | API 2 3/8”Reg |
API 2 3/8”Reg API 3 1/2”Reg API 2 7/8”Reg |
API 2 3/8”Reg API 3 1/2”Reg API 2 7/8”Reg |
API 3 1/2”Reg
|
Working Pressure | 1.0- 1.5 Mpa | 1.2-2.0 Mpa | 1.3-2.3Mpa | 1.3-2.3 Mpa | 1.5-2.5 Mpa |
Inpact Rate at 17 Bar | 28HZ | 27HZ | 25HZ | 25HZ | 23HZ |
Reccfurended Rotation Speed | 25-40 "min | 25-40 r/min | 20-35 r/min | 20-35 r/min | 20-30 r/min |
Air Consunption | 1.0Mpa :4.5 m3/min | 1.0Mpa :6m3/min | 1.0Mpa:9 m3/min | 1.0Mpa:9m3/min | 1.0Mpa :10 m3/min |
1.5Mpa:9.0m3/min | 1.8Mpa:10m3/min | 1.8Mpa:15m3/min | 1.8Mpa:15m3/min | 1.8Mpa:20m3/min | |
2.4Mpa:15m3/min | 2.4Mpa:23m3/min | 2.4Mpa:23m3/min |
2.4Mpa:28.5m3/mi |
Application:
Rock Drilling,quarry,mining or welling drilling
Company Profile:
Hebei Minetech Machinery Technology Co, Ltd is an joint venture enterprise with Europe Partner, which is located in Shijiazhuang City, Hebei Province,China. Our company is specialized in manufacturing and exporting of mining machinery, such as hydraulic and pneumatic drill machine, roof bolter and drilling consumption, like drill bit and drill rod with own factory in Shijiazhuang City.
With our rich expenience for over a decade and with professional engineers andsales team, we focus on providing complete solutions for mining machinery.
Target markets is gradually shifted from domestic market to international market, products are exported to more than thirty countries and regions, including Southeast Asia, the United States, Germany, Britain, South Africa, Poland, Russia, Middle Asia, South America and so on, and established a good brand and reputation international market.
